Datacom DM4001 - DM4000 ETH2 x10 GX-MPLS Front Panel Description; DM4000 ETH2 x10 GX-MPLS System Status LEDs

Chapter 10. DM4000 ETH2x10GX-MPLS

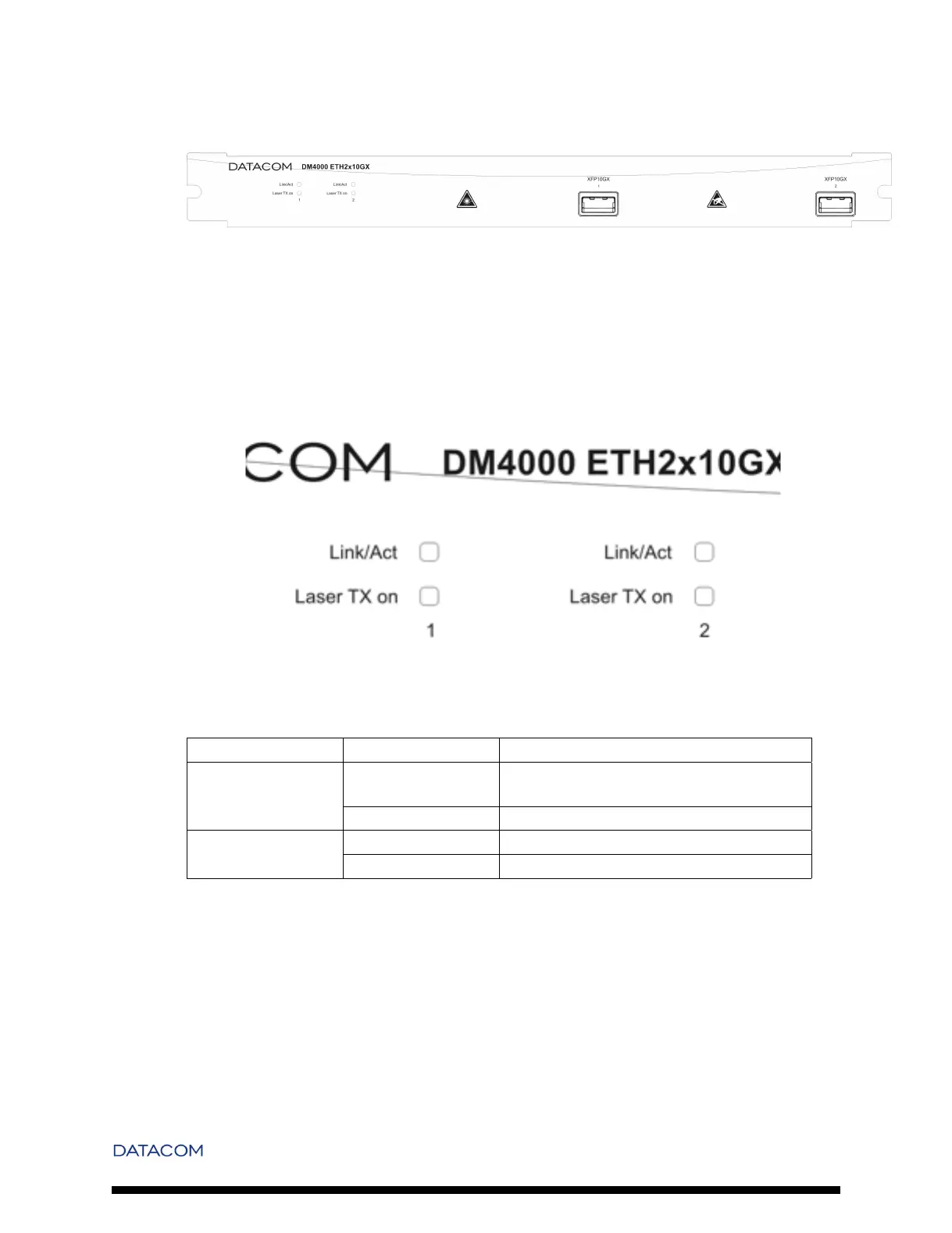

Figure 10-2. DM4000 ETH2x10GX - Front Panel
10.3. System Status Leds
The DM4000 ETH2x10GX-MPLS has the Following port Led Status.
Figure 10-3. DM4000 ETH2x10GX - Front Panel Leds
Table 10-1. Port LEDs ETH2x10GX
LED CONDITION STATUS
Link/Act ON/Blinking Connection established. Blinking indicates port
activity.
OFF No connection established.
Laser TX On ON Laser TX On established.
OFF Laser TX On not established.
10.4. Software and Hardware Features
10.4.1. Software
The software is available in separated guide.
