Chapter 9. DM4000 ETH12GX+1x10GX-MPLS
9.1. Overview
The DM4000 ETH12GX+1x10GX-MPLS is a Non-blocking 12 port SFP plus one 10 Gigabit XFP port
interface board compatible with DM4001, DM4004 and DM4008 chassis.
The DM4000 ETH12GX+1x10GX-MPLS can handle up to 32.738.095 packets per second supporting
9600 Bytes Jumbo frames and has an internal 256MBytes Switching Memory reaching wire speed oper-
ation.
The DM4000 ETH12GX+1x10GX-MPLS have a 400Mhz microprocessor with 256Mbytes of RAM and
64Mbytes of Flash.
The DM4000 ETH12GX+1x10GX-MPLS Extensive Metro Support can handle up to 1.024.000 MACs
and Larger L3 tables, the larger internal Memory of 256Mbytes can handle complex QoS applications and
MPLS LER/LSR features.

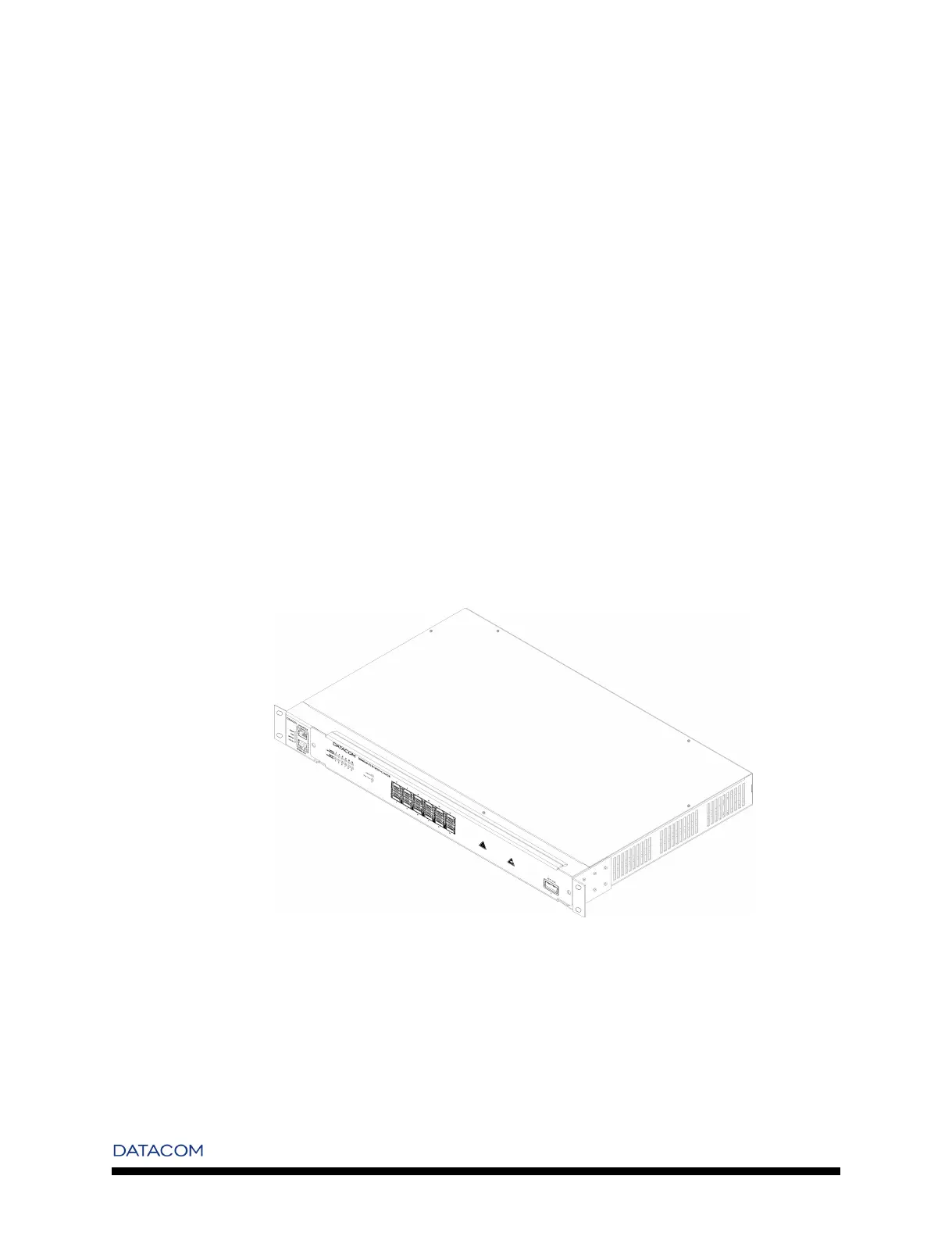

Figure 9-1. DM4000 ETH12GX+1x10GX-MPLS
9.2. Front Panel Description
In the DM4000 ETH12GX+1x10GX-MPLS front panel is located the SFP ports, XFP port and Port Status
