Chapter 14. Installation Guide

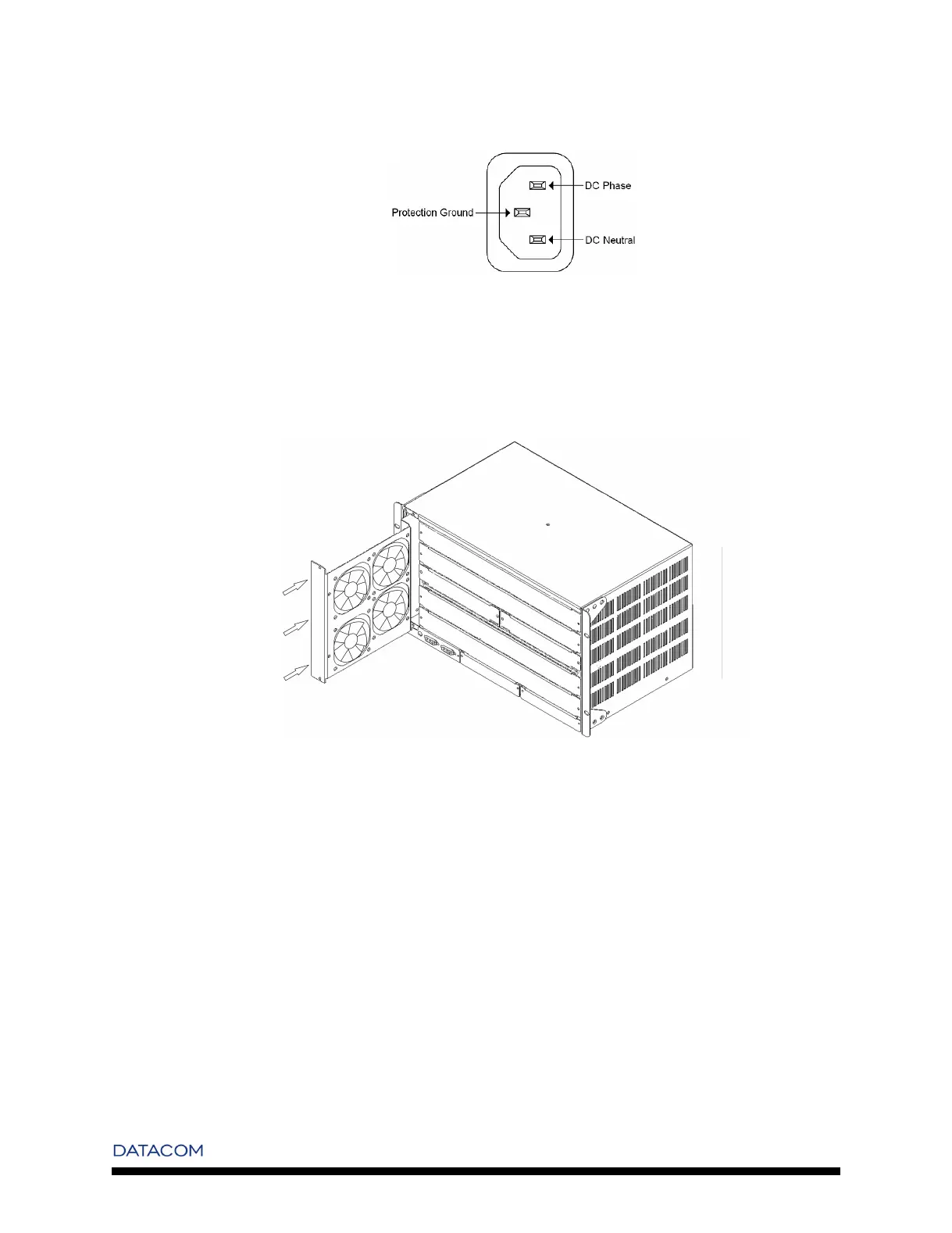

Figure 14-2. AC/DC Power Suply Connector
14.3. Installing the Fan Board in Switch
Figure 14-3. Fan Board Installation
14.4. Inserting the Interface Board in Switch
Follow the following pictures to a correct insertion of a DM4000 interface Board to the DM4004 or
DM4008 chassis.
