Chapter 5. DM4000 MPU192
5.1. Overview
The DM4000 MPU192 is a hot-swappable Switch Fabric capable of handling 192Gbp/s of Non-blocking
Data ( 96 ports Gigabit Ethernet ). It is compatible with DM4004 and DM4008 chassis. In the DM4004
chassis it can handle up to 24 Gigabit ports per interface board at a non blocking configuration, in the
DM4008 it can handle up to 12 Gigabit ethernet ports per interface Board.
Only one DM4000 MPU192 is capable to Switch all 192Gbps/s of data, in the redundant configuration
the Non active MPU is Stand by monitoring failures in the active MPU, do not switching data.
The DM4000 MPU192 can handle up to 142.857.149 packets per second supporting 9KB Jumbo frames
and has an internal 1152KBytes Switching Memory reaching wire speed operation.
The DM4000 MPU192 have a 400Mhz microprocessor with 256Mbytes of RAM and 64Mbytes of Flash.

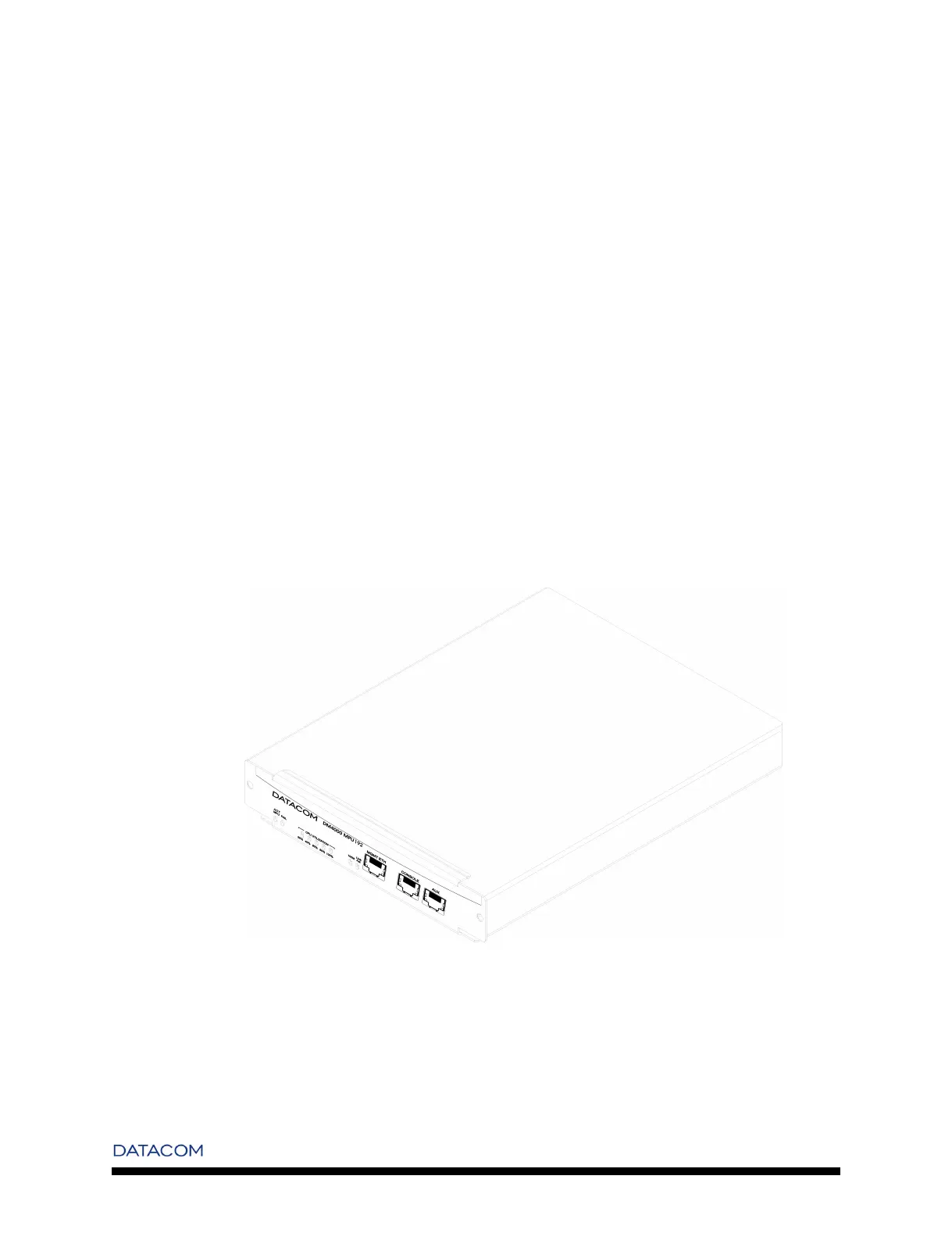

Figure 5-1. DM4000 MPU192
