Chapter 4. DM4008 Chassis
4.1. Overview
The DM4008 chassis is compatible with all MPUs and interface boards of the DM4000 series.
It has a Backplane that can handle up to 384Gbp/s of Non-blocking data. It has eight interface Board slots,
two MPU SLOTs, two Multipurpose Slots and a FAN Slot.
For normal operation Blind panels are required for non slotted interfaces and MPUs.

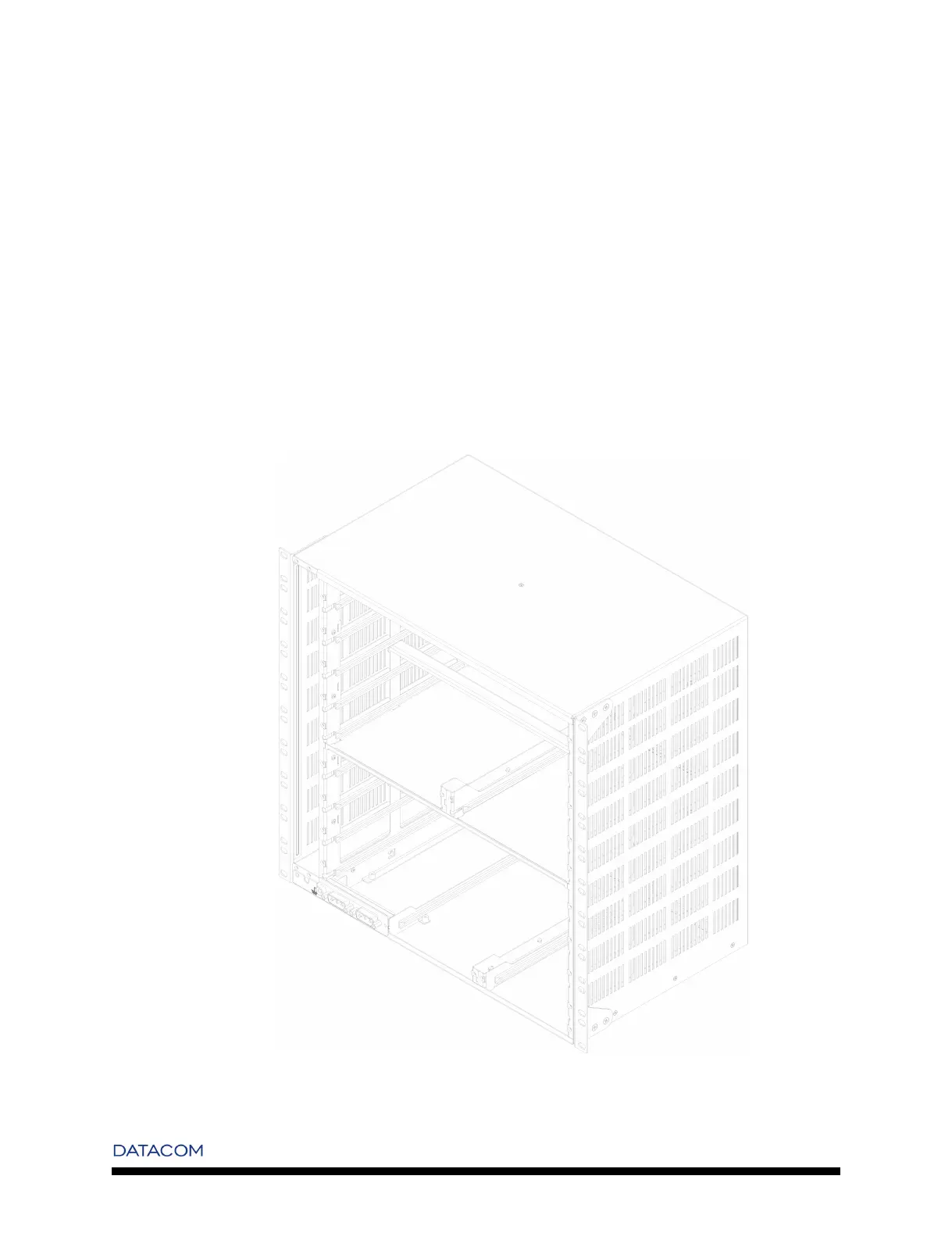

Figure 4-1. DM4008 Chassis
