Chapter 7. DM4000 ETH24GX-MPLS
7.1. Overview
The DM4000 ETH24GX-MPLS is a Non-blocking 24 port SFP interface board compatible with DM4001,
DM4004 and DM4008 chassis.
The DM4000 ETH24GX-MPLS can handle up to 35.714.285 packets per second supporting 9600 Bytes
Jumbo frames and has an internal 256MBytes Switching Memory reaching wire speed operation.
The DM4000 ETH24GX-MPLS has a 400Mhz microprocessor with 256Mbytes of RAM and 64Mbytes
of Flash.
The DM4000 ETH24GX-MPLS Extensive Metro Support can handle up to 1.024.000 MACs and Larger
L3 tables, the larger internal Memory of 256Mbytes can handle complex QoS applications and MPLS
LER/LSR features.

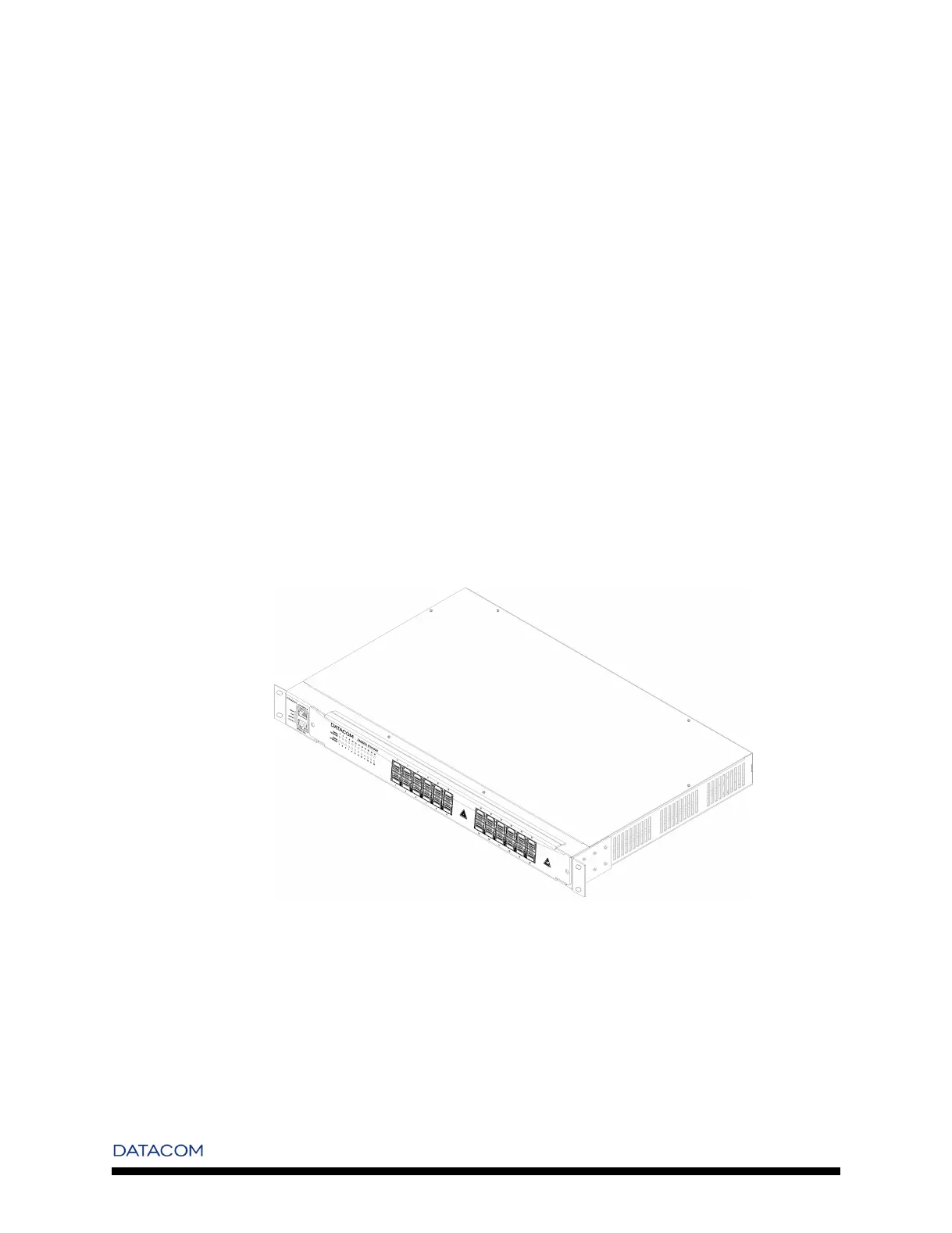

Figure 7-1. DM4000 ETH24GX-MPLS
7.2. Front Panel Description
In the DM4000 ETH24GX-MPLS front panel is located the SFP ports and Port Status Leds.
