Chapter 5. DM4000 MPU192
5.2. Front Panel Description
In the DM4000 MPU192 front panel is located the System Status Leds, Consoles and Ethernet Outband
Management Ports.

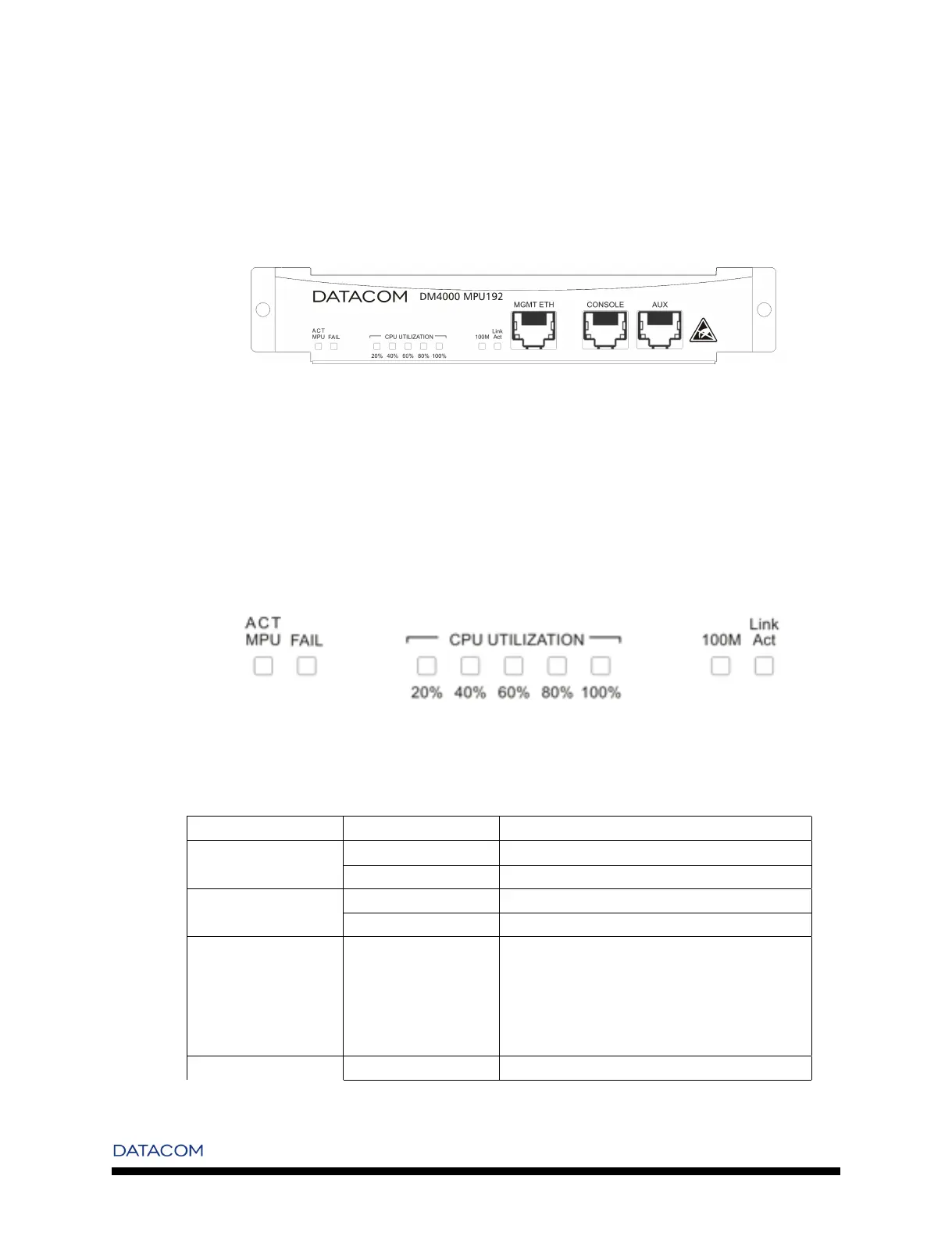

Figure 5-2. DM4000 MPU192 - Front Panel
5.3. System Led Status
The DM4000 MPU192 has 9 system status Leds Monitoring CPU utilization, Ethernet Outband, system
fails and Hot MPU Status.
Figure 5-3. DM4000 MPU192 - Front Panel Leds
Table 5-1. System LEDs MPU192
LED CONDITION STATUS
ACT MPU ON Indicates MPU is active.
OFF Indicates MPU inactive
FAIL ON Indicates hardware fail .
OFF Indicates hardware without fail.
CPU UTILIZATION ON 0% utilization.
ON 20% utilization.
ON 60% utilization.
ON 80% utilization.
ON 100% utilization.
100 M ON Indicates that a 100M is active.
