Chapter 14. Installation Guide

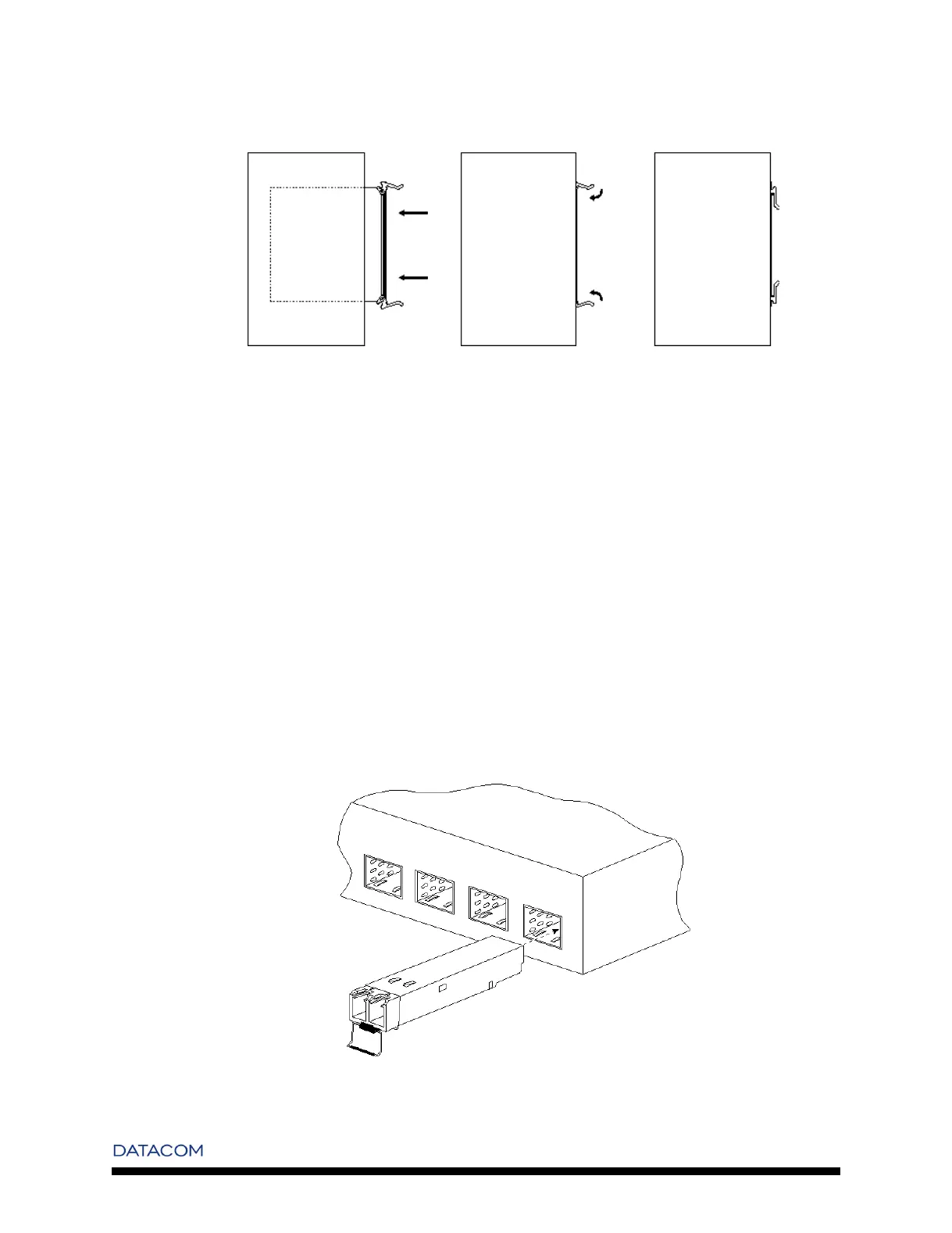

Figure 14-4. Inserting the Interface Board in Switch
According the figure, the installation sequence is:
1. Brackets should be located to rabbet in chassis
2. Brackets should be located after the board
3. Press the brackets to chassis
14.5. SFP Module
14.5.1. Connecting SFP Module
The use of a SFP transceiver is optional. It is not included in the package. Follow the next instructions to
install a SFP module properly:
Figure 14-5. Connecting a SFP module
40
