Datacom DM4001 User Manual

Appendix A. DB9
A.1. Pins

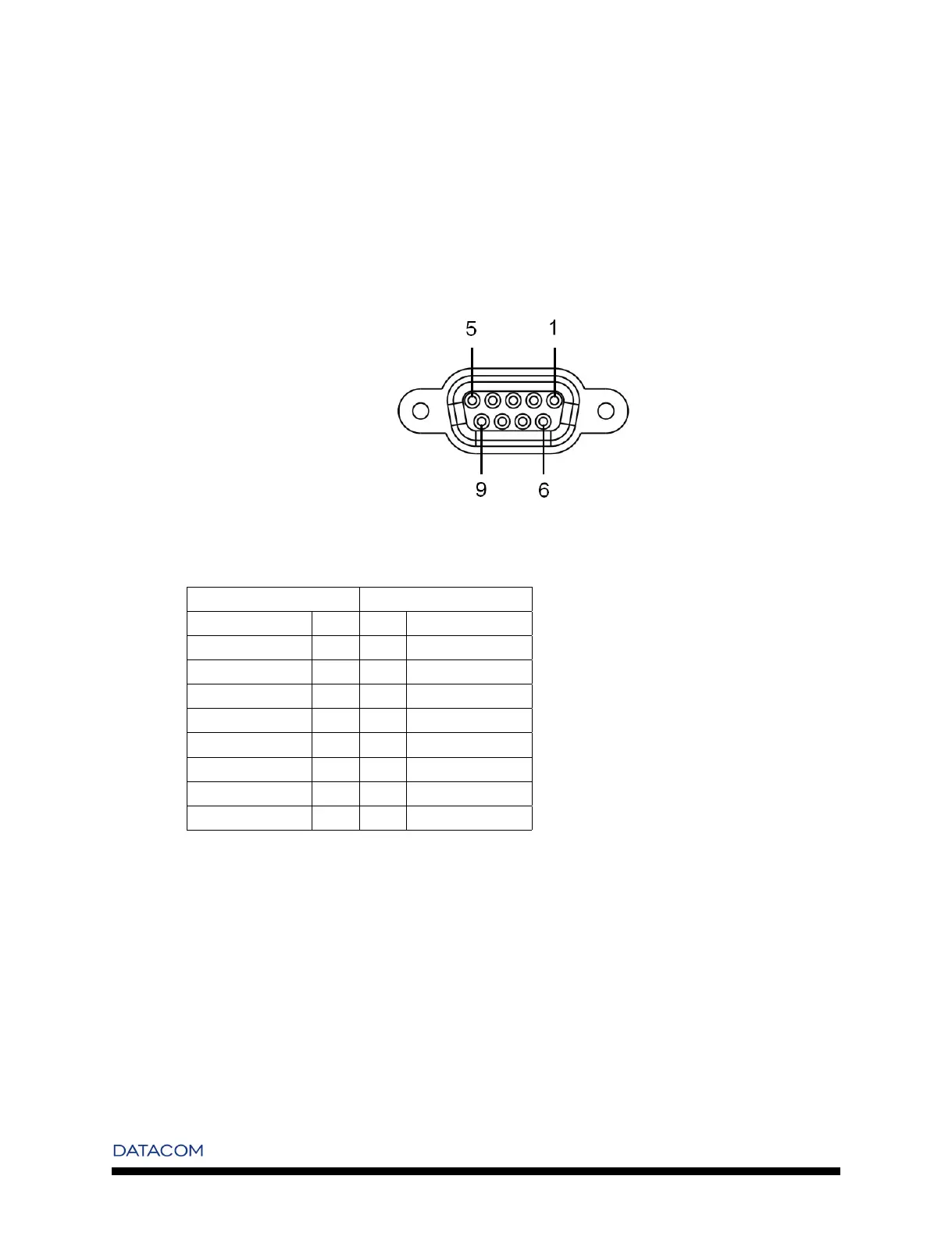

Figure A-1. DB9 Pins Order
Table A-1. RJ45-DB9 Pins Order
RJ45 DB9
Nomenclature Pin Pin Nomenclature
RTS 1 8 CTS
DTR 2 6 DSR
TXD 3 2 RXD
GND 4 5 GND
GND 5 5 GND
RXD 6 3 TXD
DSR 7 4 DTR
CTS 8 7 RTS
46
