Chapter 4. DM4008 Chassis
4.2. Front Panel Description
In the DM4008 Chassis front panel are located the Main input power in Chassis. It is a DC input of 48V
Nominal.

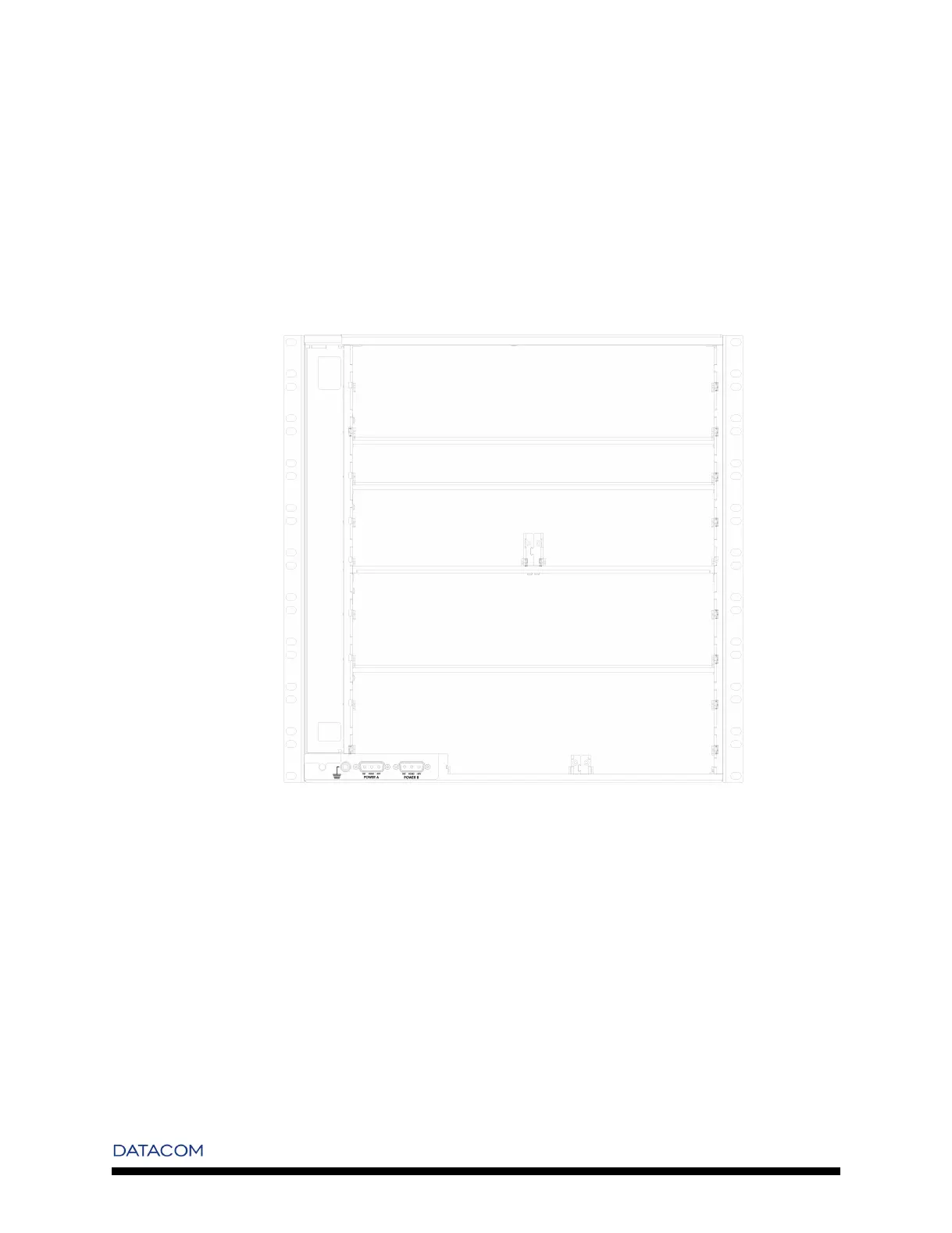

Figure 4-2. DM4008 Chassis - Front Panel
9
