Chapter 9. DM4000 ETH12GX+1x10GX-MPLS
Leds.

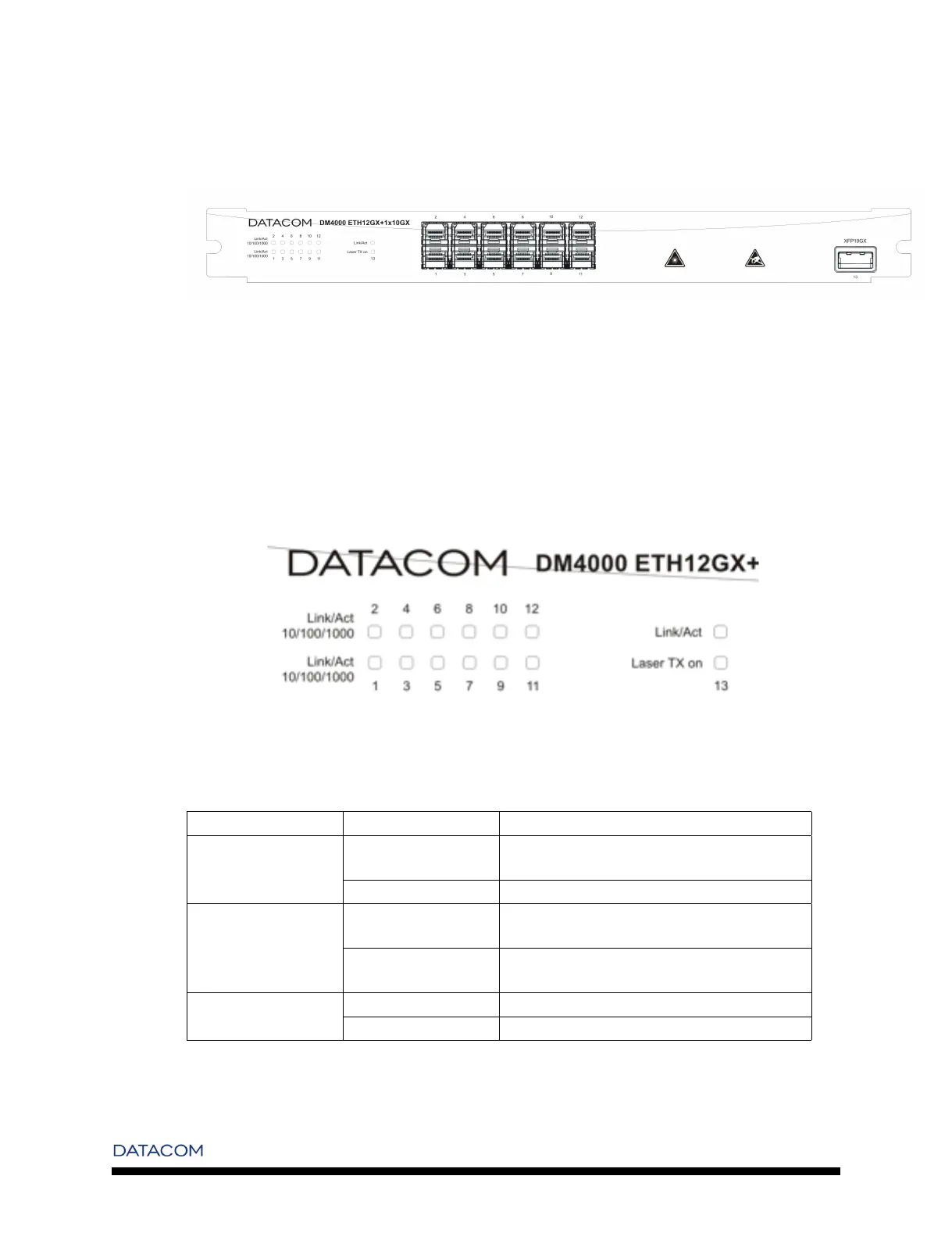

Figure 9-2. DM4000 ETH12GX+1x10GX-MPLS - Front Panel
9.3. System Status Leds
The DM4000 ETH12GX+1x10GX-MPLS has the Following port Led Status.
Figure 9-3. DM4000 ETH12GX+1x10GX-MPLS - Front Panel Leds
Table 9-1. Port LEDs ETH12GX+1x10GX-MPLS
LED CONDITION STATUS
Link/Act ON/Blinking Connection established. Blinking indicates port
activity.
OFF No connection established.
10/100/1000 ON Indicates that a 10/100Mbps connection was
established (when Link/Act is ON/Blinking).
OFF Indicates that a 1000Mbps connection was
established.
Laser TX On ON Laser TX On established.
OFF Laser TX On not established.
