Datacom DM4001 User Manual

Chapter 10. DM4000 ETH2x10GX-MPLS
10.1. Overview
The DM4000 ETH2x10GX-MPLS is a Non-blocking two 10 Gigabit XFP port interface board compatible
with DM4001, DM4004 and DM4008 chassis.
The DM4000 ETH2x10GX-MPLS can handle up to 29.761.904 packets per second supporting 9600 Bytes
Jumbo frames and has an internal 256MBytes Switching Memory reaching wire speed operation.
The DM4000 ETH2x10GX-MPLS have a 400Mhz microprocessor with 256Mbytes of RAM and
64Mbytes of Flash.
The DM4000 ETH2x10GX-MPLS Extensive Metro Support can handle up to 1.024.000 MACs and
Larger L3 tables, the larger internal Memory of 256Mbytes can handle complex QoS applications and
MPLS LER/LSR features.

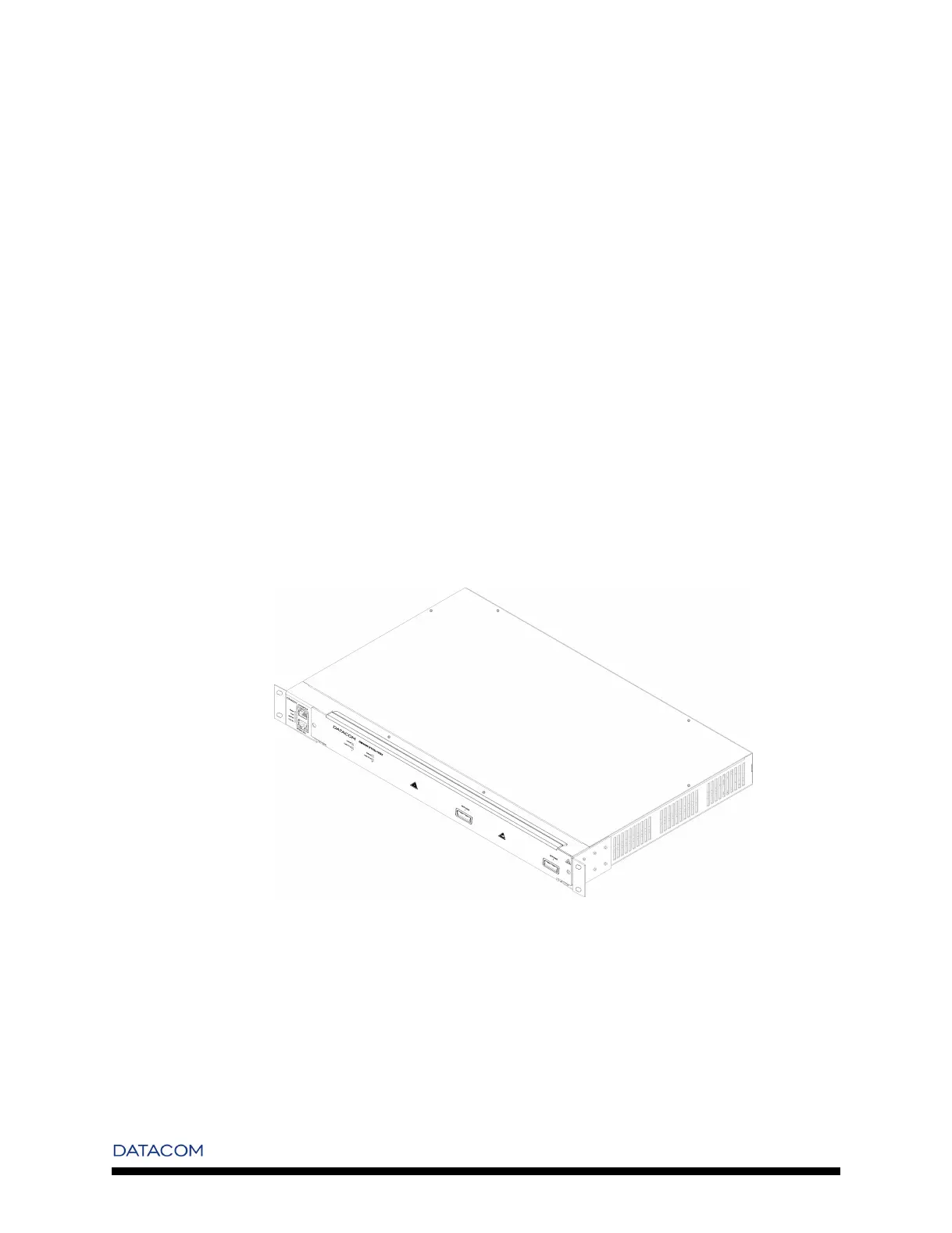

Figure 10-1. DM4000 ETH2x10GX-MPLS
10.2. Front Panel Description
In the DM4000 ETH2x10GX-MPLS front panel is located the SFP ports, XFP port and Port Status Leds.
28
