Chapter 3. DM4004 Chassis
3.1. Overview
The DM4004 chassis is compatible with all MPUs and interface boards of the DM4000 series.
It has a Backplane that can handle up to 384Gbp/s of Non-blocking data. It has four interface Board slots,
two MPU SLOTs, two Multipurpose Slots and a FAN Slot.
For normal operation Blind panels are required for non slotted interfaces and MPUs.

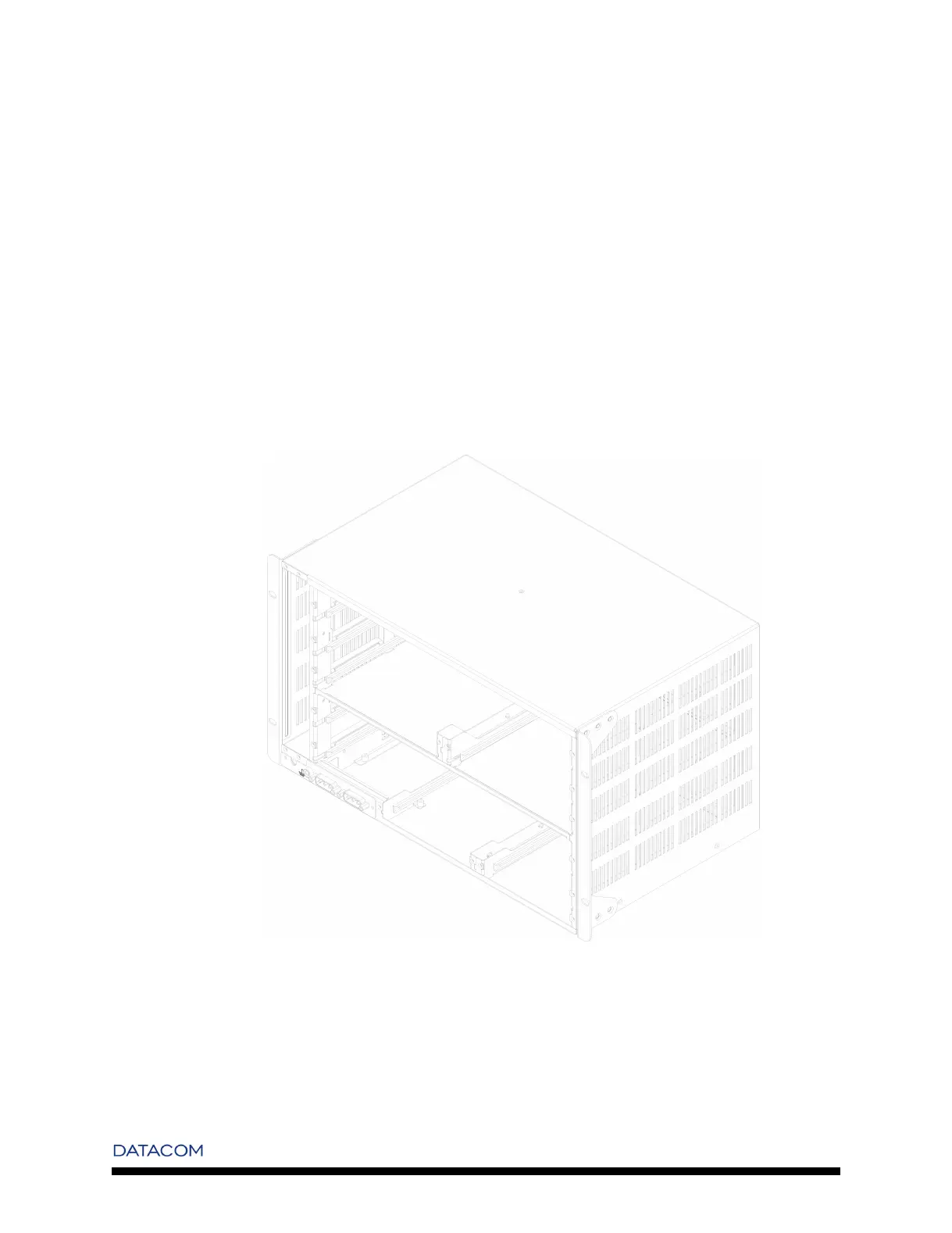

Figure 3-1. DM4004 Chassis
6
