Datacom DM4001 User Manual

Chapter 2. DM4001 Chassis

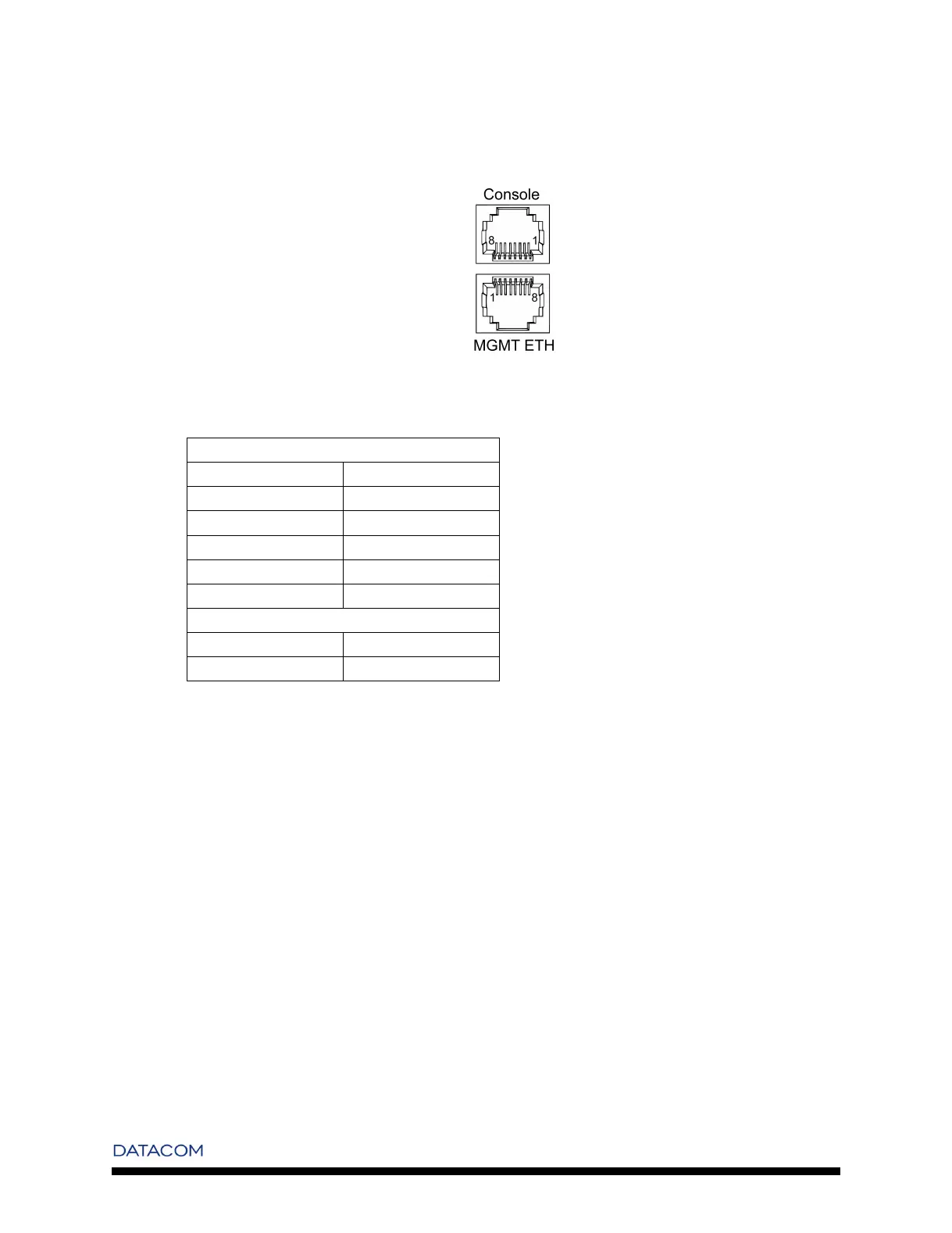

The pin-out of both console and outband management ports are shown in the next figure.
Figure 2-4. Double RJ-45
Table 2-2. Interface Pinout
Management Port
RJ-45 Signal
1 Tx+
2 Tx-
3 Rx+
6 Rx-
4,5,7,8 -
RJ-45 Serial Port
3 Tx
6 Rx
2.5. Rear Panel Description
The Rear panel of the DM4001 chassis has two DC input power 36-72V range for power supply the
equipment.
5
