Chapter 8. DM4000 ETH12GX-MPLS

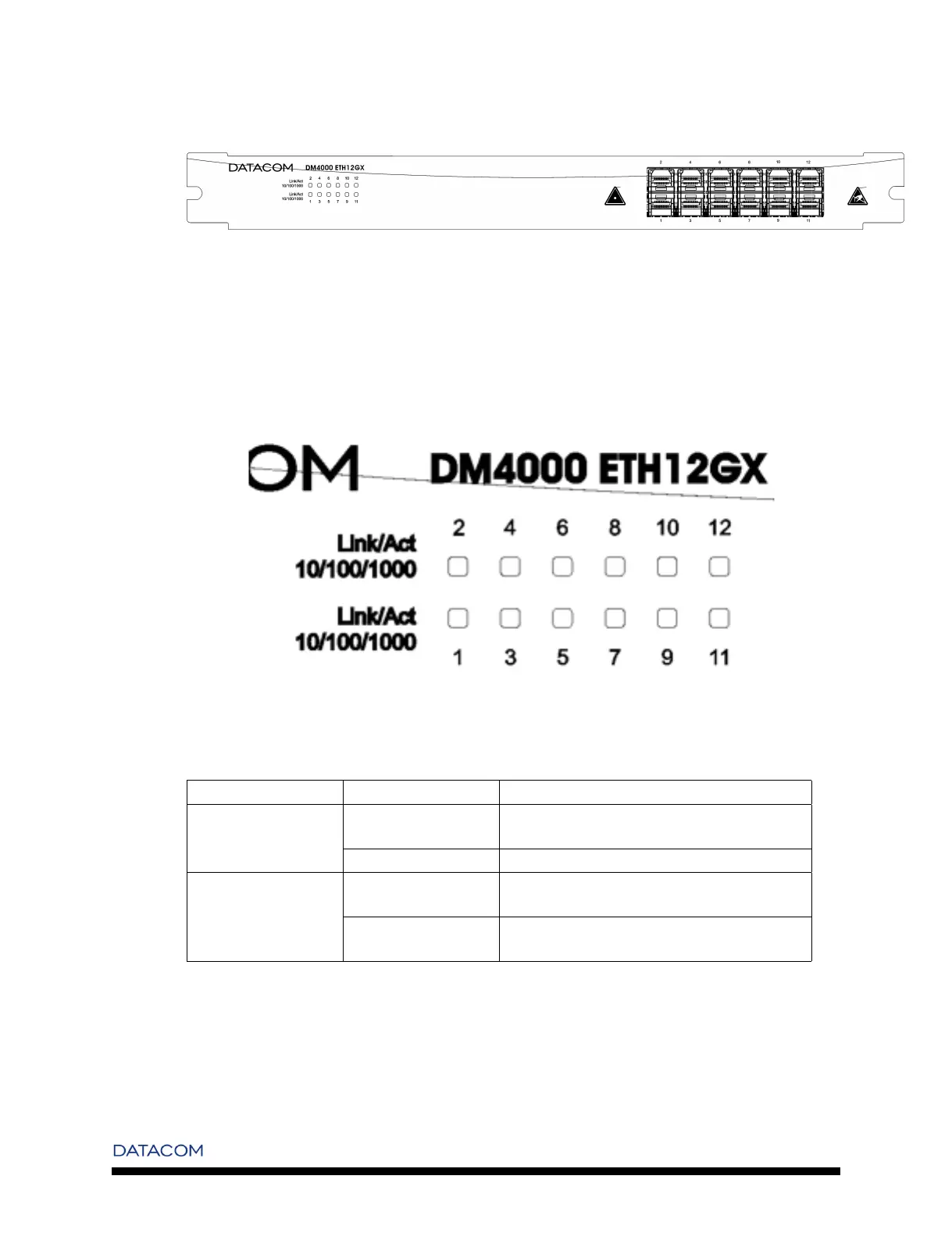

Figure 8-2. DM4000 ETH12GX-MPLS - Front Panel
8.3. System Status Leds
The DM4000 ETH12GX-MPLS has the Following port Led Status.
Figure 8-3. DM4000 ETH12GX-MPLS - Front Panel Leds
Table 8-1. Port LEDs ETH12GX-MPLS
LED CONDITION STATUS
Link/Act ON/Blinking Connection established. Blinking indicates port
activity.
OFF No connection established.
10/100/1000 Orange Indicates that a 10/100Mbps connection was
established (when Link/Act is ON/Blinking).
Green Indicates that a 1000Mbps connection was
established.
