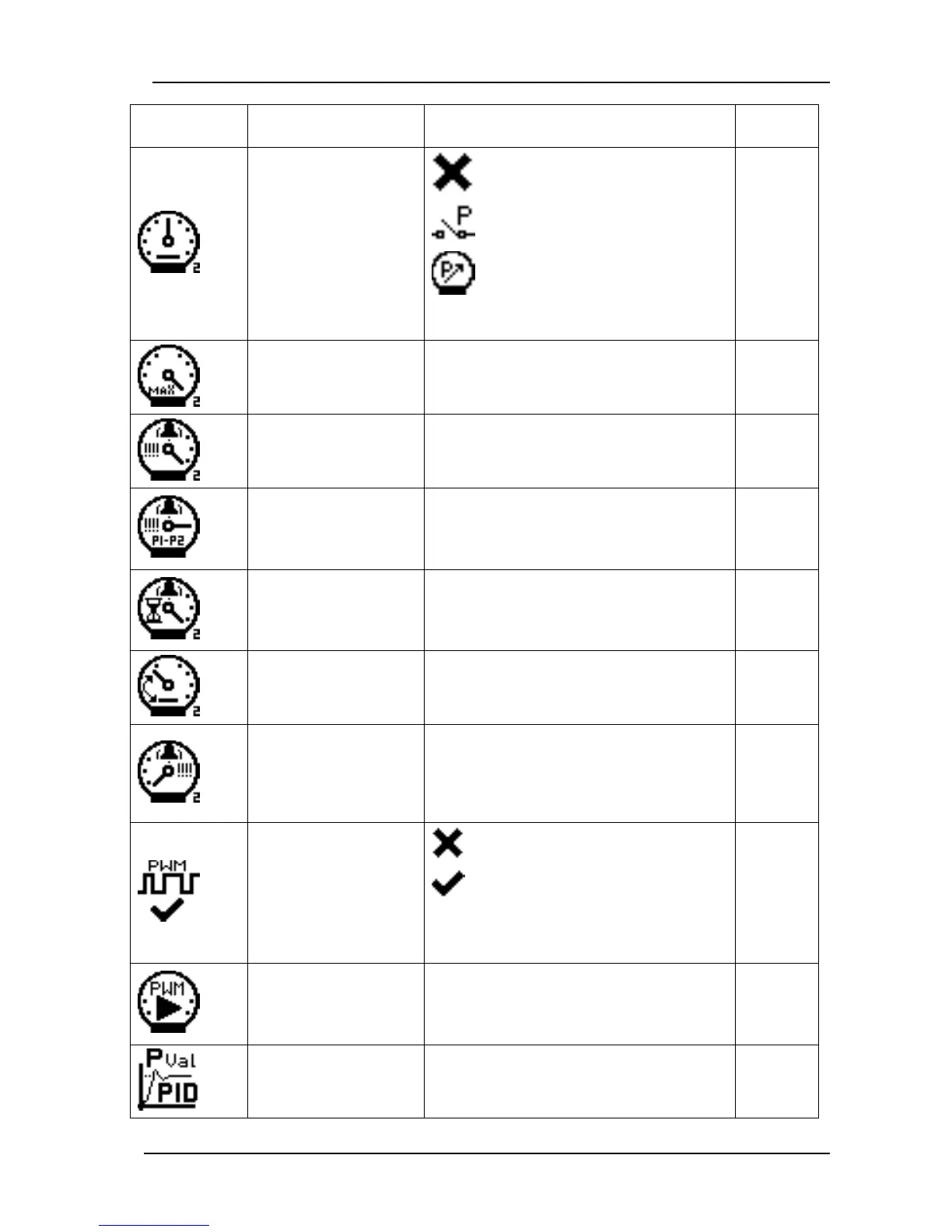

ICON and No:
DESCRIPTION
ADJUSTMENT LIMITS
Factory
Set
E.40
PRES-2 SNSR.TYP :
Pressure 2 sensor type
0: not connected
1: Pressure switch connected
2: Analog sensor connected
If this parameter is set to 1 then parameters
E.41 ... E.45 will not be visible.
0
E.41
PRESS.-2 TOP :
Pressure 2 upper
display limit
1.7 ... 99.9 Bar
16.0 bar
E.42
HGH PRES-2 ALRM :
High pressure_2 alarm
limit
1.2 ... (E.41-0.5)
8.0 bar
E.43
DELTA.PRES.ALRM :
Differential pressure
alarm limit (Press1 –
Press2)
-10.0 ... +10.0
If the pressure difference P1-P2 stays over
this limit during E.44 period, then ALARM 20
High Differential Pressure is given.
0 bar
E.44
P2 ALARM DELAY :
Differential pressure
alarm delay timer
1 ... 600
If the pressure difference P1-P2 stays over
E.43 limit during this period, then ALARM 20
High Differential Pressure is given.
15 sec
E.45
P2 SENSOR.OFSET :
Pressure sensor 2 offset
adjustment
-2 ... +2
0 bar
E.46
LOW PRES-2 ALRM :
Air pressure sensor 2
low alarm limit. (Alarm
disabled when set to 0.0
bar)
0.0: alarm disabled
0.1... (E.42-0.5)
1 bar
E.47
MOTOR PWM SIGNL :
Analog (0-10V) motor
control signal enable
0: Disabled
1: Enabled
If this parameter is set to 0 then parameters
E.48, E.49, E.50, E.51, E.52, E.53 and E.54
will not be visible.
0
E.48
PWM SET PRESS. :
Analog (0-10V) motor
control signal set
pressure
0.5 ... (E.03-0.2)
7.0 bar
E.49
PID P VALUE :
PID control P gain
%0.0 ... 99.9
% 3.0
