INSTALLATION
33
3
The installation of the deflection mirror is very easy.
1) Clean the OM2000N mirror surface and output window (internally and externally) with a
clean soft cloth and alcohol before assembling it to the scanner.
CAUTION
All abrasive substances must be absolutely avoided as they cause
irreparable damage to the transparency of the glass.

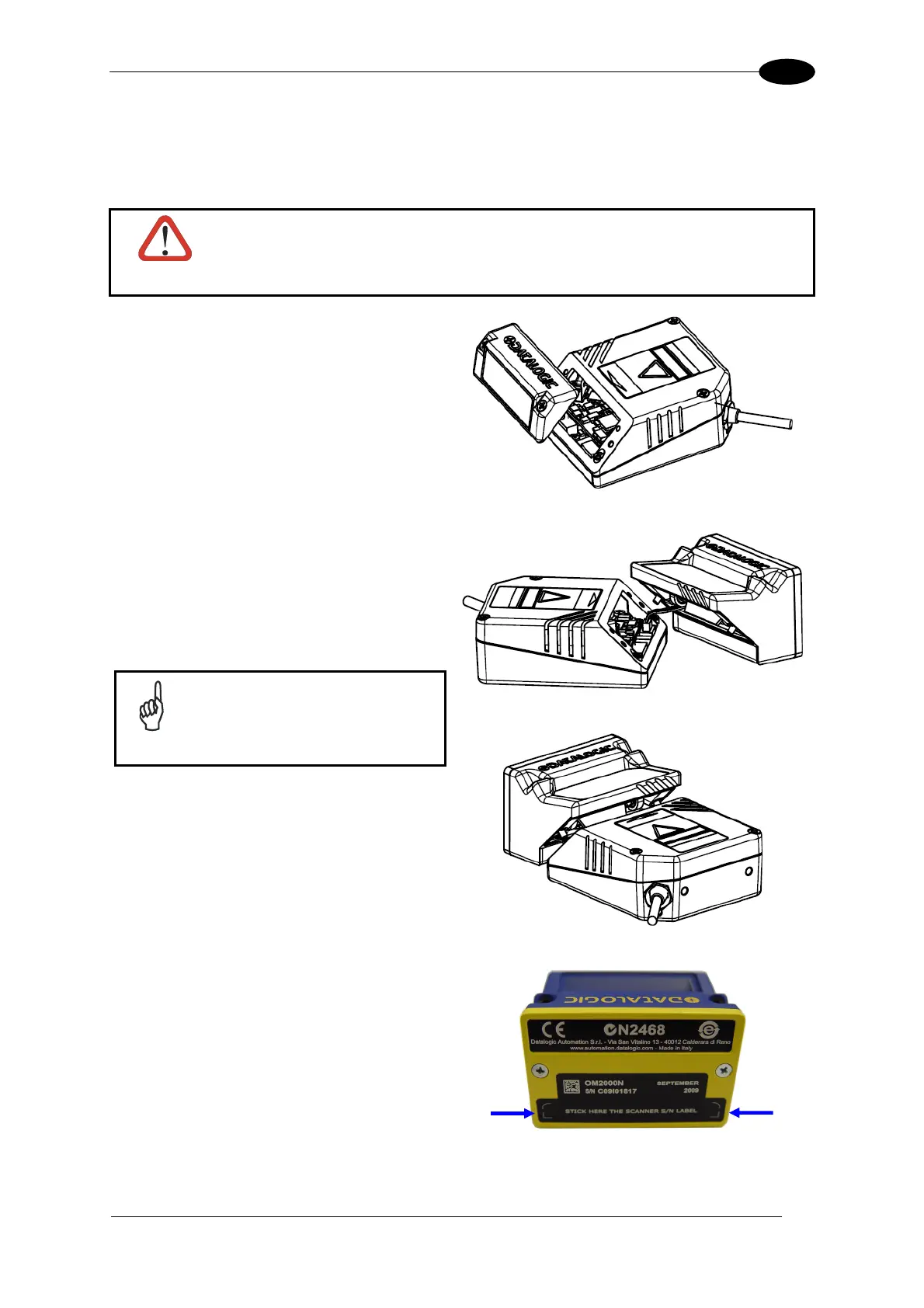

Figure 29 – Remove Scanning Window
Figure 30 – OM2000N Electrical Connection
Figure 31 –Mount OM2000N
2) Remove the scanning window from the
scanner (see Figure 29).
3)
Bring the OM2000N clo
se to the scanne
and insert the cable into the powe
connector of the scanner (see Figure
30).
NOTE
Make sure the cable doesn't
remain in the path of the
mirror movement.
4) Check that the seal is correctly
positioned and then after having aligned
the OM2000N onto the scanner, fix it
using the two screws (see Figure 31).
5)
In the ind
icated space on the front side
of the OM2000N, apply the relative
replicate scanner serial number label
provided with the scanner itself (see
Figure 32).
Figure 32 – Apply Replicate Scanner SN Label
