TYPICAL LAYOUTS
77
6

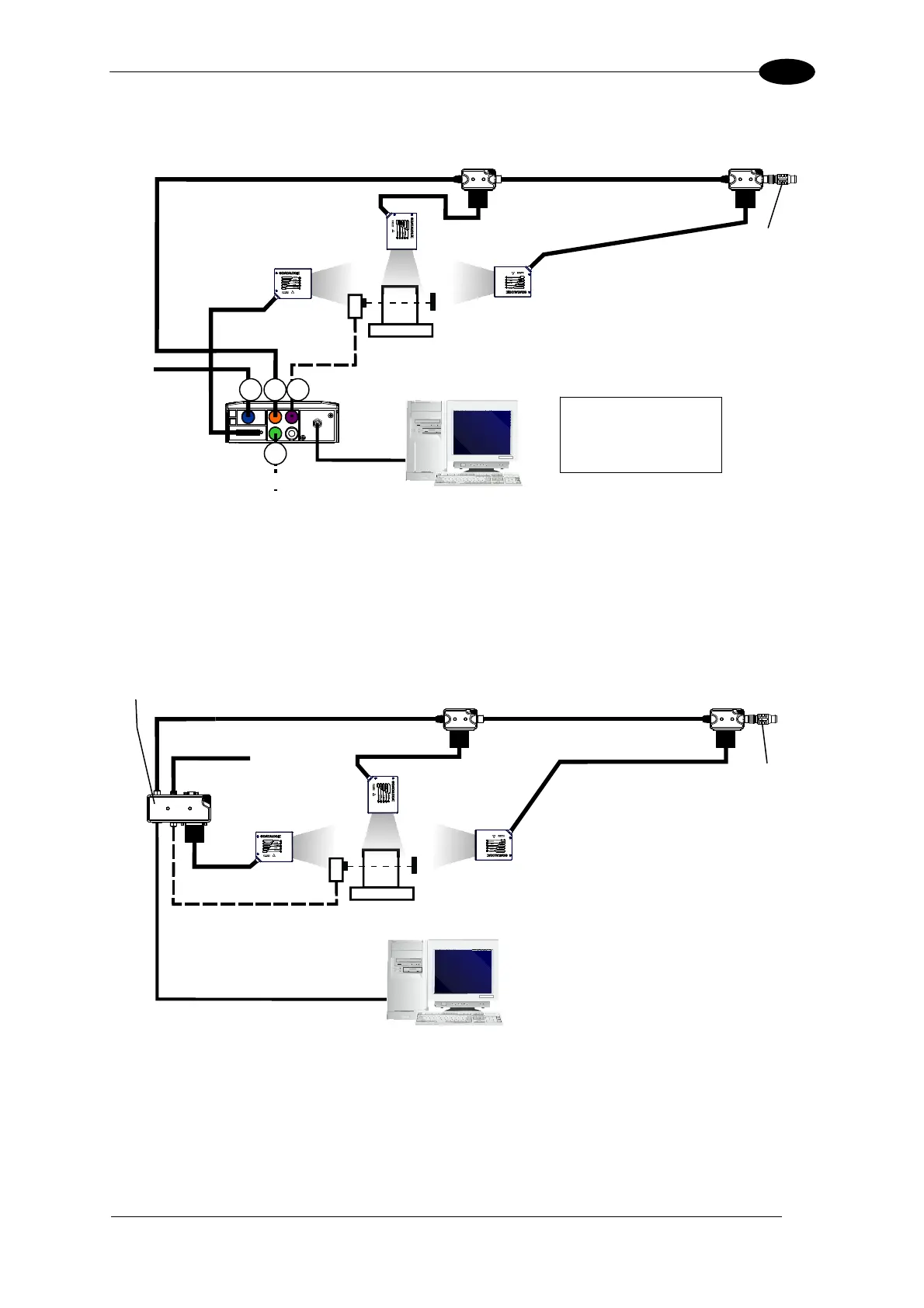

Figure 91 – ID-NET™ M/S Synchronized Layout
DS2100N Master with CBX500 + DS2100N Slaves with QL100
Figure 92 – ID-NET™ M/S Synchronized Layout
DS2100N Master with QL500 + DS2100N Slaves with QL100
Host
QL100
PS
Power
Ethernet Interface
CBL-1490
ID-NET
Terminator
The ID-NET network must be terminated inserting
an ID-NET terminator into the last QL in the
network.
ID-NET on the QL500 is internally terminated.
Slave Nodes
CBL-1480-xx
CAB-PW-EXT
CBL-1480-xx
QL500
Master
QL100
ID-NET™
Host
QL100
3 1 4
PS
Power
CBX500 w BM200
CBL-1490
ID-NET
Terminator
The ID-NET network must be terminated through
the internal switch of the CBX500 and inserting
an ID-NET terminator into the last QL in the
network.
ID-NET™ Slave Nodes
5
CAB-PW-EXT
CAB-AUX03
CBL-1480-xx
BA600 ID-NET™ Out
BA400 Ext. Power
BA500 Trigger
BA300 Service
DS2100N
Master
QL100
Ethernet
CBL-1480-xx
