The Master scanner can communicate to the Host as a Slave node on an Ethernet TCP/IP
network. This example requires using the accessory BM2x0 Ethernet interface board
installed inside the CBX500 connection box.
System configuration can be accomplished through the Auxiliary interface of the Master
scanner (internal CBX500 9-pin connector) using the Genius™ configuration program or
Genius™ based Host Mode programming.
Configuration can also be accomplished in Genius directly through the Ethernet network. In
this case initial connection can be made using Programming Barcodes.

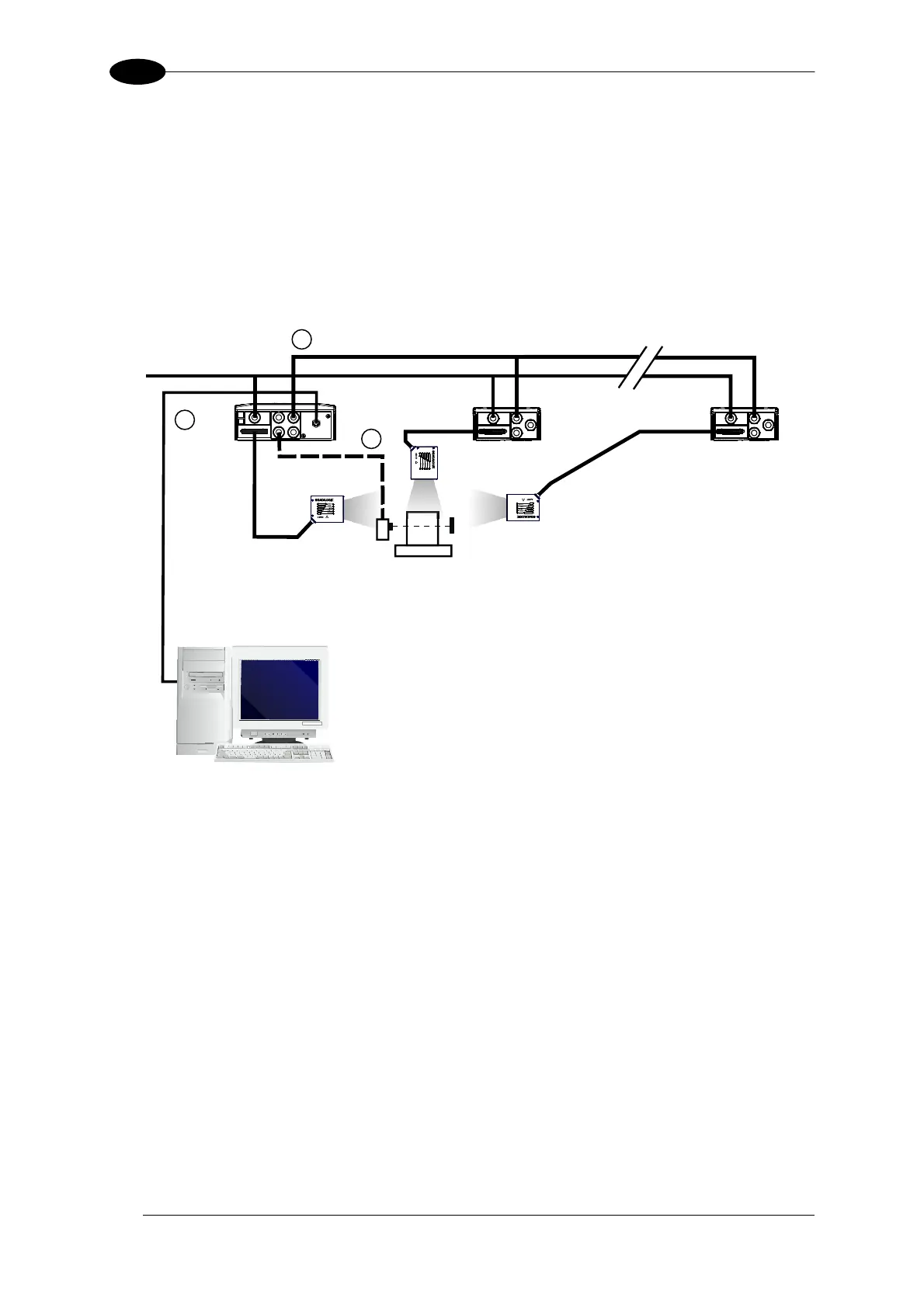

Figure 93 – ID-NET™ M/S Synchronized Layout
DS2100N Master with BM200/210 TCP/IP Ethernet Interface to Host
Ethernet Interface (CBX500 with BM2x0)
External Trigger (for On-Line Mode)
ID-NET™ (up to 16 devices - practical limit)
Host
1
3
2
Master
Slave#1 Slave#n
Power
To Next Page
