Datalogic DS2100N - READING FEATURES; Advanced Code Reconstruction (ACR-LITE)

TYPICAL LAYOUTS
79
6
Alternatively, the Master scanner can communicate to the Host as a Slave node on a
Fieldbus network. This requires using an accessory Fieldbus interface board installed inside
the CBX500 connection box.
System configuration can be accomplished through the Auxiliary interface of the Master
scanner (internal CBX500 9-pin connector) using the Genius™ configuration program or
Genius™ based Host Mode programming.

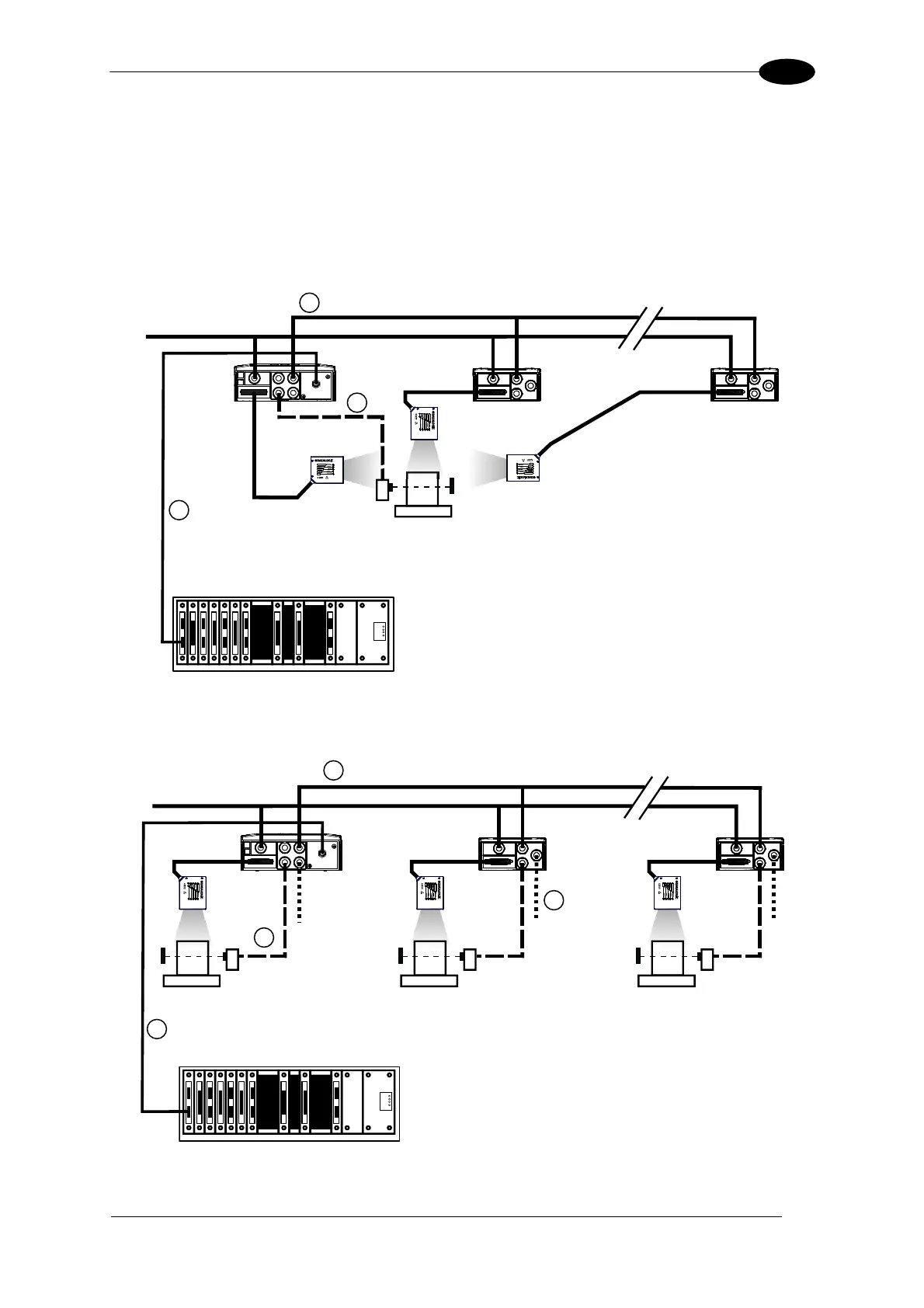

Figure 94 – ID-NET™ Fieldbus M/S Synchronized Layout
Figure 95 – ID-NET™ Fieldbus M/S Multidata
 Fieldbus Interface
 External Trigger (for On-Line Mode)
 ID-NET™ (up to 16 devices - practical limit)
Host
2
Master
Slave#1 Slave#n
Power
1
3
Terminal
 Fieldbus Interface
 Auxiliary Serial Interface (Local Echo) (RS232)
 External Trigger (for On-Line Mode)
 ID-NET™ (up to 32 devices, max network extension of 1000 m)
Host
1
4
3
2
Master Slave#1 Slave#n
Power
