Connecting the Scanner
Product Reference Guide 3
USB Connection — Connect the scanner to a USB port on the terminal/PC using the correct
USB cable for the interface type you ordered. Reference
Figure 1.
IBM Connection — Connect the scanner to the IBM port on the terminal/PC using the correct
IBM cable. Reference
Figure 1.
Keyboard Wedge Connection — Before connection, turn off power to the terminal/PC. The Key-
board Wedge cable has a ‘Y’ connection from the scanner. Connect the female to the male end
from the keyboard and the remaining end at the keyboard port at the terminal/PC. Reference
Figure 1b.

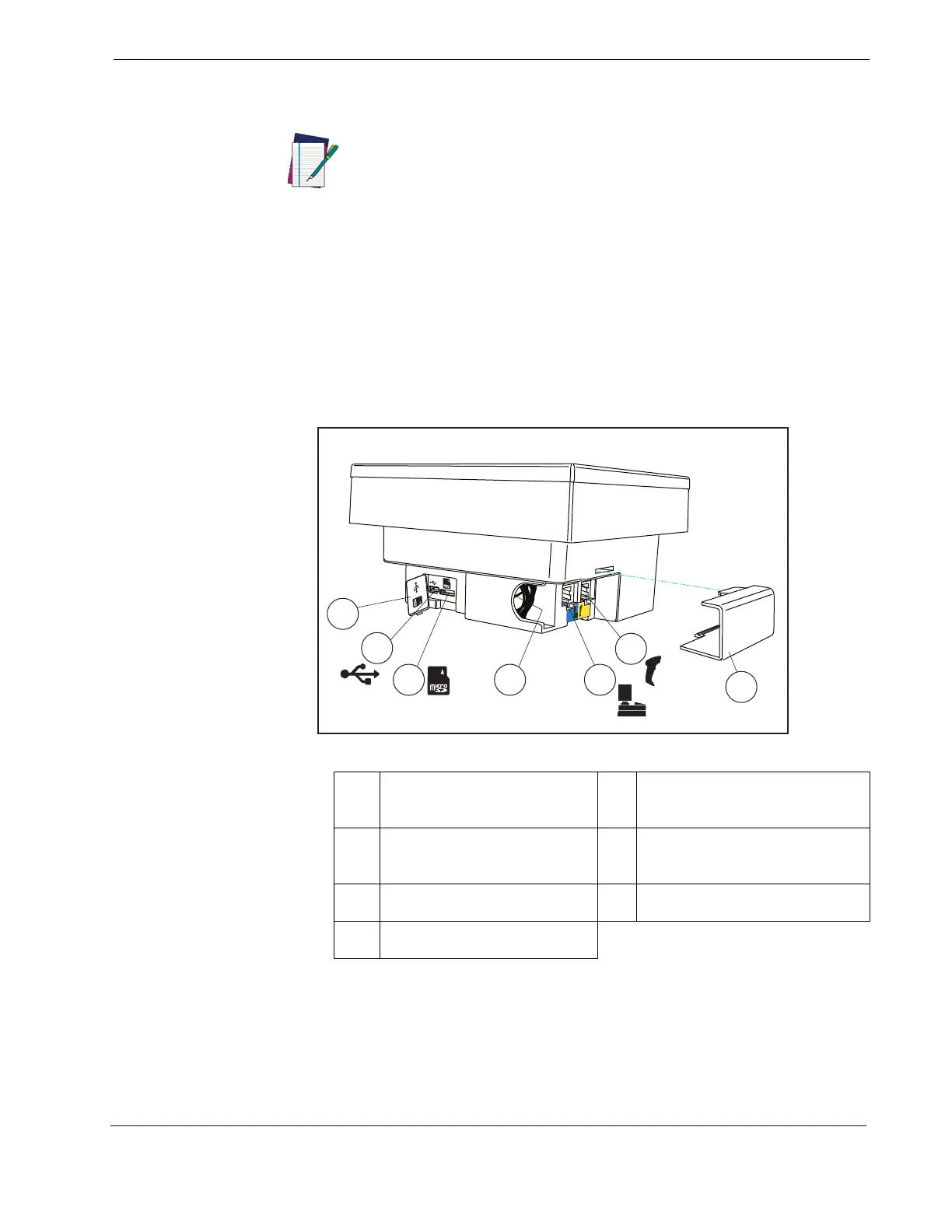

Figure 2. Ports and Connections
NOTE
USB installations may require a power connection via an approved A/C
Adapter as shown in
Figure 1b or Figure 1c. For example, this would be
the case if the scanner is connected along with a number of other devices
to a non-powered USB hub.
1
2
3 4 5
6
7
1 Connection Bulkhead Cover 5 POS Terminal (blue): Label data, applica-
tion Host download, Host commands to
scanner
2 USB Service Port: On screen
programming tool
6 Auxiliary Port (yellow): RS-232 handheld,
EAS interlock, remote camera button,
PIR data
3 microSD Slot: Upgrades, imaging,
statistics data
7Cable Cover
4 Electronic Article Surveillance (EAS)
Antenna Connection Wire

Datalogic Magellan 3300HSi Specifications

General

Scanner type	1D
Decoding standards	GS1, MicroPDF417, PDF417
Optical sensor resolution	1280 pixels
Light levels (direct sunlight)	0 - 86100 lx
Dimensions (WxDxH)	152 x 87 x 152 mm
Power consumption (active)	9.9 W
Standard interfaces	USB, RS-232
Input voltage	90 - 264 V
Power requirements	47 - 63 Hz
Power consumption (standby)	2 W
Certification	RoHS, EN 60825-1, IEC 60825, IEC 60825-1
Product color	Stainless steel
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Weight	790 g
