Symbologies

112

Magellan

TM

3300HSi

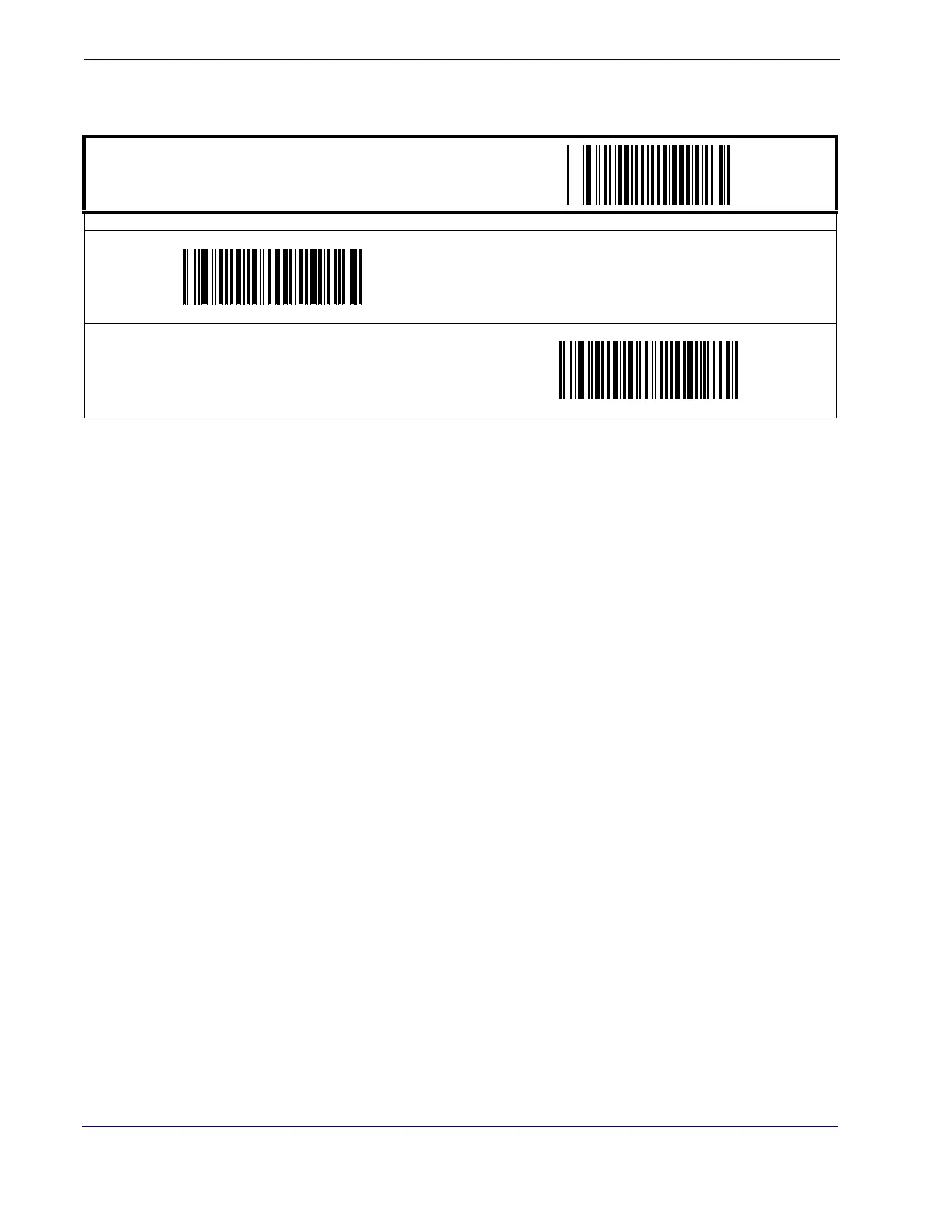

Code 39 Full ASCII

Enables/disables the translation of Code 39 characters to Code 39 full-ASCII characters.

START / END

PROGRAMMING bar codes

Disable Code 39 Full ASCII

DEFAULT

Enable Code 39 Full ASCII

Table of Contents

Default Chapter3
- Table of Contents3
Chapter 1. Getting Started9
- About this Manual9
  - Manual Conventions9
- Connecting the Scanner10
- Error Codes12
- Installation12
- LED and Beeper Indicators14
  - Code 3914
  - Code 39-Pharmacode14
- Programming16
  - Using the Programming Bar Codes16
- Resetting the Standard Product Defaults16
- Data Matrix Programming Labels16
  - Msi/Plessey16
  - Code 9316
- Bar Code Mask17
  - Going Green18
- LED Class18
Chapter 2. General Features19
- Double Read Timeout for Linear Labels19
  - Code 3919
  - Code 9320
- Double Read Timeout for 2D Labels21
- Scanner Button Options22
- Camera Button Mode23
- LED Level24
- Auxiliary Port Mode25
- Auxiliary Port Baud Rate26
- Productivity Index Reporting (PIR)27
- Sleep Mode28
- LED and Beeper Indicators30
  - Power on Alert30
- Auto Cell Phone Mode31
Chapter 3. Image Capture39
- Image Capture39
  - How to Capture an Image39
- Image Compression42
- Image Format42
- Image Size43
- Image Brightness44
- Image Contrast44
Chapter 4. Interface Related Features47
- Interface Selection49
- Interface Features51
Product Reference Guide I57
- Host Echo58
- Host Echo Quiet Interval59
- Signal Voltage: Normal/Ttl60
- RS-232 Invert61
- Beep on ASCII BEL61
- Beep on Not on File62
- ACK NAK Options63
- ACK Character64
- NAK Character64
- Retry on ACK NAK Timeout65
- ACK NAK Timeout Value65
- ACK NAK Retry Count66
- ACK NAK Error Handling67
  - Transmission Failure Indication68
- Single Cable RS-23268
- USB COM Interface Set-Up81
Chapter 5. Data Editing83
- Data Editing Overview83
  - Please Keep in Mind83
- Global Prefix/Suffix84
- Aim ID86
- Label ID87
- Case Conversion94
- Character Conversion95
Chapter 6. Symbologies97
- Upc-A97
- Upc-E100
Magellan TM 3200Vsi106
- Disable/Enable EAN-8106
- Check Digit Transmission106
- EAN Two-Label108
- EAN Two-Label Combined Transmission108
- Price Weight Check Digit109
- Add-Ons110
- GS1 Databar Omnidirectional / Stacked Omnidirectional112
  - Disable/Enable GS1 Databar Omnidirectional112
  - UCC/EAN 128 Emulation112
- GS1 Databar Expanded / Expanded Stacked113
- GS1 Databar Limited117
  - Disable/Enable GS1 Databar Limited117
  - GS1-128 Emulation117
- Code 39118
- Code 32 Italian Pharmacode123
- Code 128125
- Interleaved 2 of 5129
- Codabar133
- Code 93139
Chapter 7. 2D Symbologies143
- 2D Symbologies143
Chapter 8. Advanced Decoding Features165
- Inverse Label Reading165
Appendix A. Product Specifications167
- Optical and Read Performance Parameters167
- Scanner Dimensions167
- Physical Properties168
- Electrical Parameters168
- Environmental Parameters168
- Other Parameters168
Appendix B. Cable Pinouts169
- Standard Cable Pinouts (Primary Interface Cables)169
Appendix C. Alpha-Numeric Pad171
Appendix D. Factory Default Settings173
- Factory Defaults by Interface173
Appendix E. Keyboard Function Key Mappings179
- Keyboard Model Cross Reference179
Appendix F Host Commands187
- Accepting RS-232 Commands187
Appendix G Sample Symbols189
- 1D Symbol Samples189
- 2D Sample Symbols191
- Composite Sample Symbols192
Appendix H. Microsd Card193
- Microsdhc Compatibility193
- Microsd Card Insertion/Removal Indication193
- Autorun File Processing193
- Microsd Function Summary194
- Microsd Function Details194
  - From Scanner to Microsd Card194
  - From Microsd Card to Scanner196
Appendix I. Handheld Data Format Requirements201
- Handheld Data Format Requirements General201
- Datalogic Handheld Data Format Requirements202
