Datalogic Magellan 3300HSi Product Guide

Single Cable RS-232
Product Reference Guide 63
Single Cable RS-232 Use STX
Enables/disables the ability of the scanner to use STX.
Set Single Cable RS-232 STX Character
This feature selects the STX character.
To specify the STX Character:
1. Scan the START/END bar code.
2. Scan the bar code, SET SINGLE CABLE RS-232 STX CHARACTER below. You’ll need
to cover any unused bar codes on this and the facing page to ensure the scanner reads only
the bar code you intend to scan.
3. Scan the appropriate characters/digits from the keypad in
Appendix C, Alpha-Numeric Pad
that represent the decimal designation for the desired character. A table containing the
ASCII Character Set and their corresponding hex values is available in the inside back
cover of this manual. ASCII parameters must be input by scanning decimal digits for each
character. Pad all numbers with leading zeroes to yield a three-digit entry (001-127).
Thus, to set a single character value of A, bar codes containing the digits ‘0’, ‘6’ and ‘5’
must be scanned. The selectable range for this option is any decimal value from 001 to
127.
4. The scanner will automatically exit Programming Mode when the appropriate amount of
digits have been scanned.

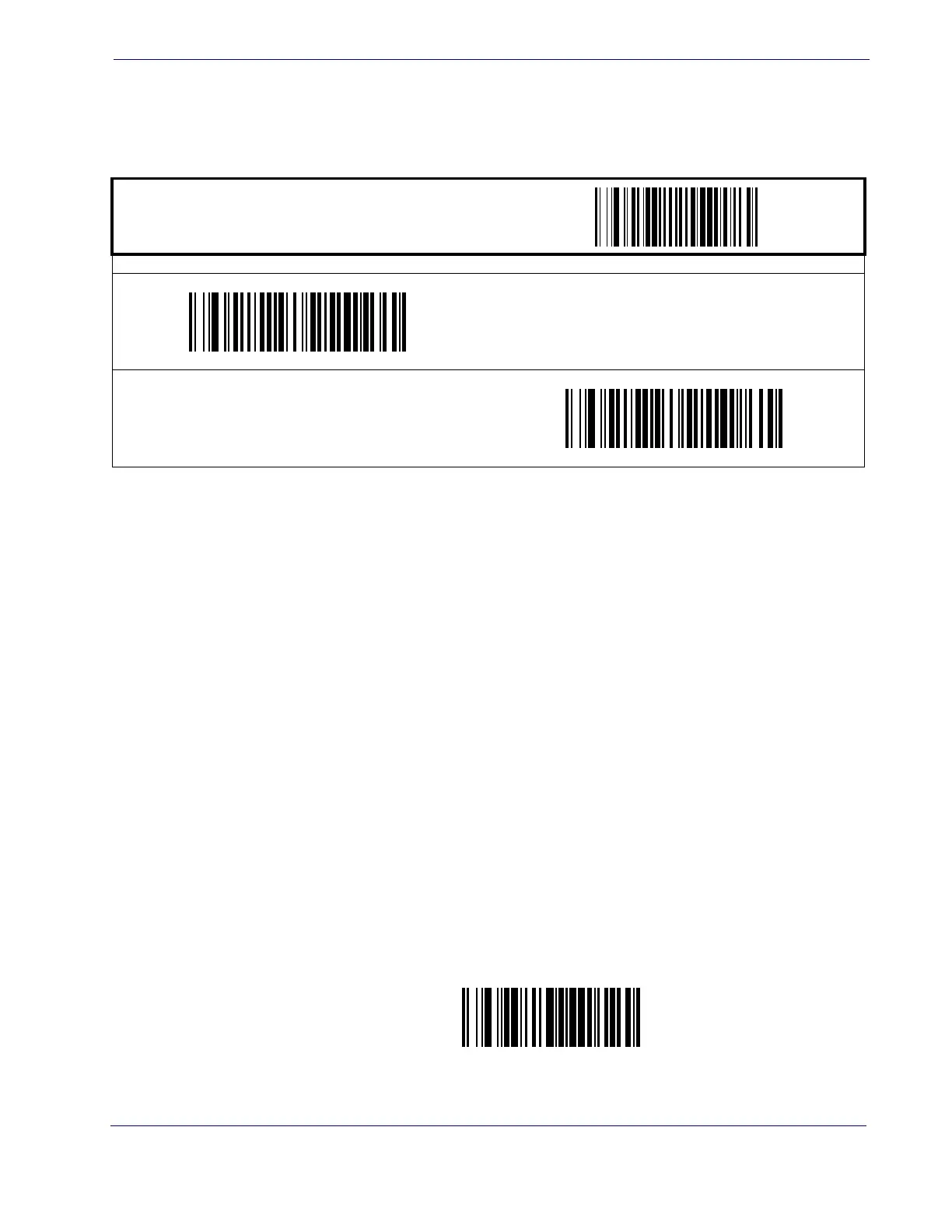

SET SINGLE CABLE RS-232 STX CHARACTER
START / END
PROGRAMMING bar codes
Disable STX
Enable STX
DEFAULT
