Datalogic Magellan 3300HSi Product Guide

Getting Started
2 Magellan
TM
3300HSi
Connecting the Scanner
The scanner kit you ordered to match your interface should provide a compatible cable for your
installation. Alternatively, if your scanner receives Power Off the Terminal (POT) it might be
possible to connect using a cable from a previously existing installation (except for USB). If you
wish to connect using an existing cable, but cannot use POT, a short adapter cable is available.
Check with your technical support representative about compatibility before connecting. Use
the appropriate instructions below when you’re ready to connect the scanner to the terminal, PC
or other host device.
Upon completing the connection via the appropriate interface instructions below, proceed to
the
Interface Related Features section of this manual and scan the bar code to select the correct
interface type.
RS-232 Serial Connection — Turn off power to the terminal/PC and connect the scanner to the
terminal/PC serial port via the RS-232 cable as shown in
Figure 1a. If the terminal will not sup-
port POT (Power Off the Terminal) to supply scanner power, use the approved power supply
(AC Adapter) as shown in
Figure 1b. Plug the AC Adapter barrel connector into the socket on
the RS-232 cable connector and the AC Adapter plug into a standard power outlet.

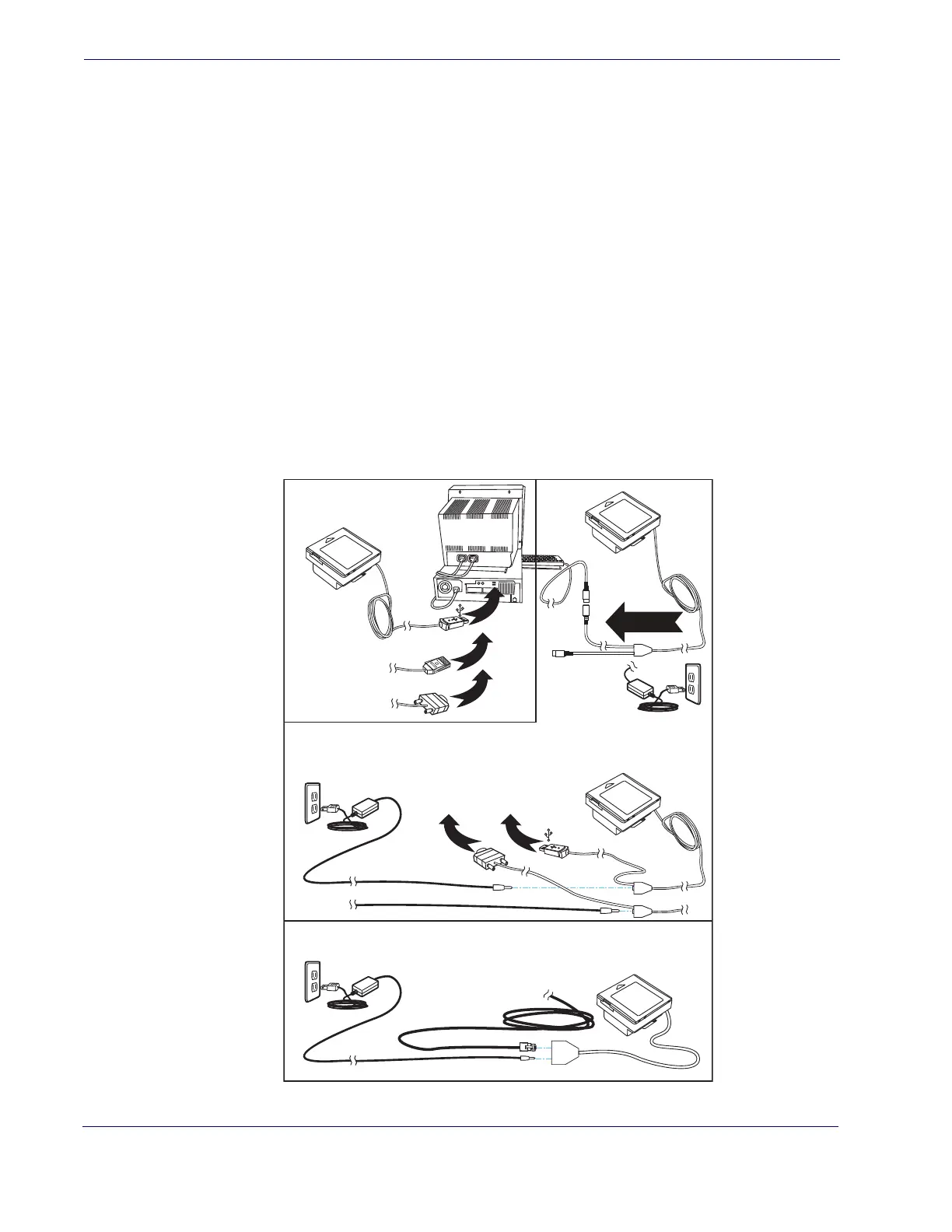

Figure 1 . Connecting the Scanner
U
S
B
U
S
B
R
S
-
2
3
2
I
B
M
or...
or...
Power Off
the Terminal
(POT)
Terminal (PC)
To Terminal (PC)
To Terminal (PC)
Keyboard Wedge, RS-232 and USB Cables
Powered by AC Adapter
Other Non-POT Cables
Powered by AC Adapter
via short adapter cable
R
S
-
2
3
2
a
b
c
Keyboard
Wedge

Datalogic Magellan 3300HSi Specifications

General

Scanner type	1D
Decoding standards	GS1, MicroPDF417, PDF417
Optical sensor resolution	1280 pixels
Light levels (direct sunlight)	0 - 86100 lx
Dimensions (WxDxH)	152 x 87 x 152 mm
Power consumption (active)	9.9 W
Standard interfaces	USB, RS-232
Input voltage	90 - 264 V
Power requirements	47 - 63 Hz
Power consumption (standby)	2 W
Certification	RoHS, EN 60825-1, IEC 60825, IEC 60825-1
Product color	Stainless steel
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Weight	790 g
