Datalogic Magellan 3300HSi Product Guide

Symbologies
106 Magellan
TM
3300HSi
GS1 DataBar Expanded / Expanded Stacked — continued
Length Control
Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a bar
code if the label length matches one of the configurable fixed lengths.
Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a
bar code if the label length falls in the range of the configurable Length 1 and Length 2 values.
Configuring Fixed Length Decoding:
1. Scan the START/END bar code.
2. Scan the Fixed Length Decoding bar code.
3. Scan the START/END bar code.
4. Set Length 1 to the first fixed length by following the
GS1 DataBar Expanded Length 1,
Length 2 Programming Instructions
below.
5. Set Length 2 to the second fixed length (or to ‘00’ if there is only one fixed length) by fol-
lowing the
GS1 DataBar Expanded Length 1, Length 2 Programming Instructions below.
Configuring Variable Length Decoding:
1. Scan the START/END bar code.
2. Scan the Variable Length Decoding bar code.
3. Scan the START/END bar code.
4. Set Length 1 to the first variable length by following the
GS1 DataBar Expanded Length 1,
Length 2 Programming Instructions
below.
5. Set Length 2 to the second variable length by following the
GS1 DataBar Expanded Length
1, Length 2 Programming Instructions below.

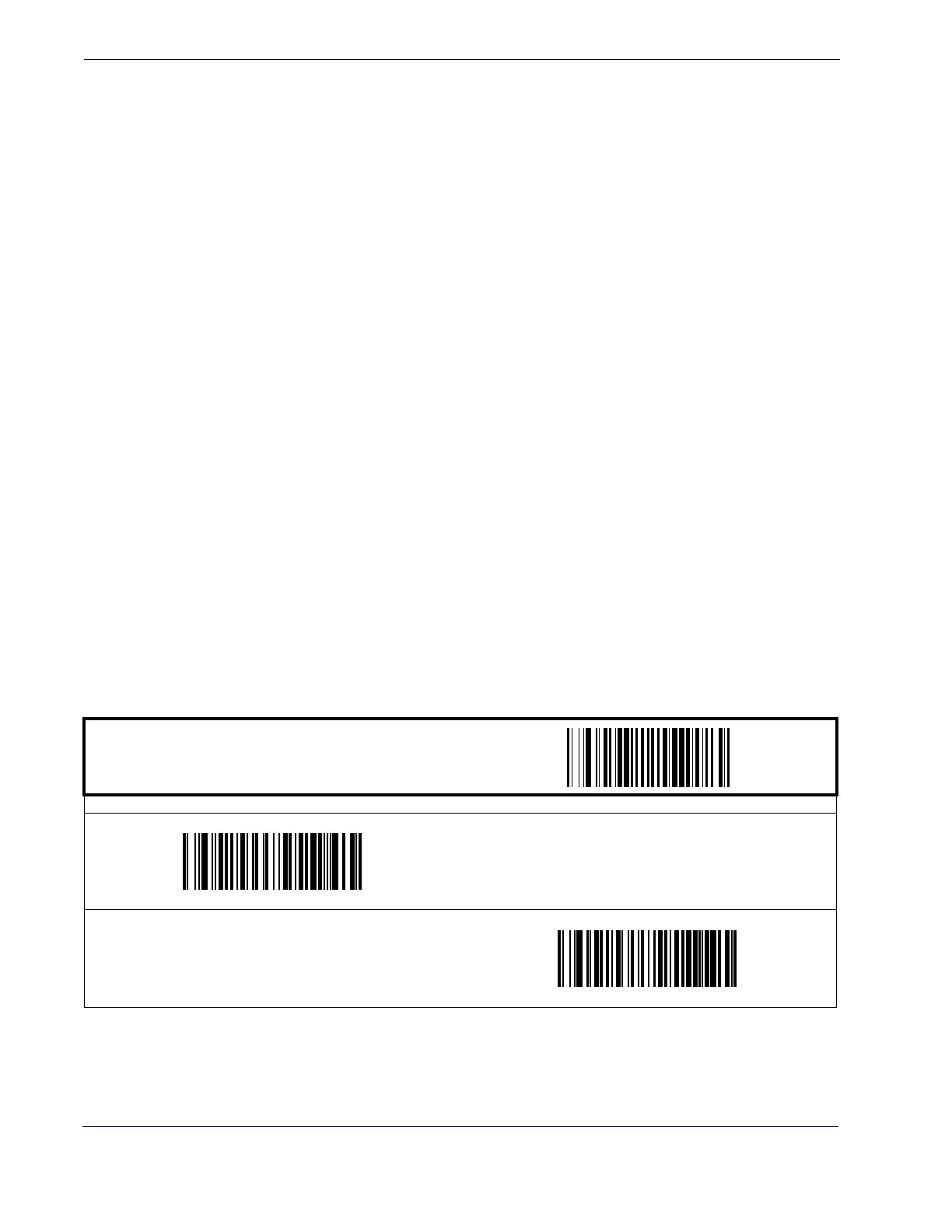

START / END
PROGRAMMING bar codes
Variable Length Decoding
DEFAULT
Fixed Length Decoding

Datalogic Magellan 3300HSi Specifications

General

Scanner type	1D
Decoding standards	GS1, MicroPDF417, PDF417
Optical sensor resolution	1280 pixels
Light levels (direct sunlight)	0 - 86100 lx
Dimensions (WxDxH)	152 x 87 x 152 mm
Power consumption (active)	9.9 W
Standard interfaces	USB, RS-232
Input voltage	90 - 264 V
Power requirements	47 - 63 Hz
Power consumption (standby)	2 W
Certification	RoHS, EN 60825-1, IEC 60825, IEC 60825-1
Product color	Stainless steel
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Weight	790 g
