Datalogic Magellan 3300HSi Product Guide

Product Reference Guide 75
Chapter 5
Data Editing
Data Editing Overview
When a bar code is scanned, additional information can be sent to the host computer along
with the bar code data. This combination of bar code data and supplementary user-defined
data is called a “message string.” The features in this chapter can be used to build specific
user-defined data into a message string.
There are several types of selectable data characters that can be sent before and after scanned
data. You can specify if they should be sent with all symbologies, or only with specific symbolo-
gies.
Figure 1 shows the available elements you can add to a message string:
Figure 1. Breakdown of a Message String
Please Keep In Mind...
• Modifying a message string is not a mandatory requirement. Data editing is sophisticated
feature allowing highly customizable output for advanced users. Factory default settings
for data editing is typically set to NONE.
• A prefix or suffix may be applied (reference the
Symbologies chapter for these settings)
across all symbologies (set via the Global features in this chapter).
• You can add any character from the
ASCII Chart (from 00-FF) on the inside back cover of
this manual as a prefix, suffix or Label ID.
• Enter prefixes and suffixes in the order in which you want them to appear on the output.
CAUTION
It is not recommended to use these features with IBM interfaces.

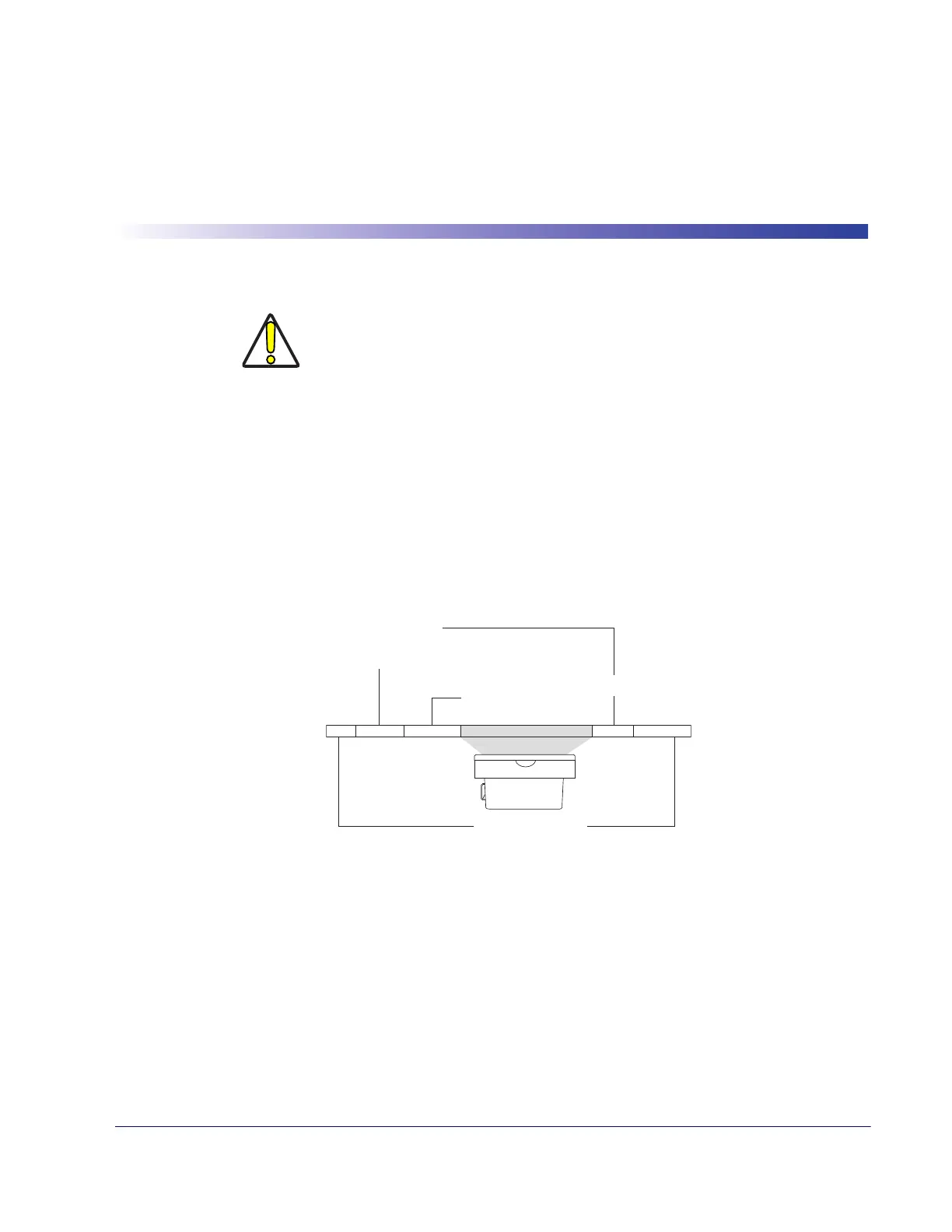

Prefix SuffixAIM IDLabel ID Label IDBar Code Data
00 - 20 Characters (ASCII)
Label ID Transmission:
Enable this option to
transmit the Label ID you
configure for the scanned
symbology.
AIM ID: This function is
used to identify and
display the common label
identifier for its symbology.
When enabled, this ID
code will be transmitted
before the scanned bar
code data.
OR...

Datalogic Magellan 3300HSi Specifications

General

Scanner type	1D
Decoding standards	GS1, MicroPDF417, PDF417
Optical sensor resolution	1280 pixels
Light levels (direct sunlight)	0 - 86100 lx
Dimensions (WxDxH)	152 x 87 x 152 mm
Power consumption (active)	9.9 W
Standard interfaces	USB, RS-232
Input voltage	90 - 264 V
Power requirements	47 - 63 Hz
Power consumption (standby)	2 W
Certification	RoHS, EN 60825-1, IEC 60825, IEC 60825-1
Product color	Stainless steel
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Weight	790 g
