Datalogic Magellan 9500

Product Reference Guide A-1
Appendix A
LED/Beeper Indications &
Controls
Figure A-1 shows the operator’s controls and indicators. The descriptions
following identify the use or function of each component.

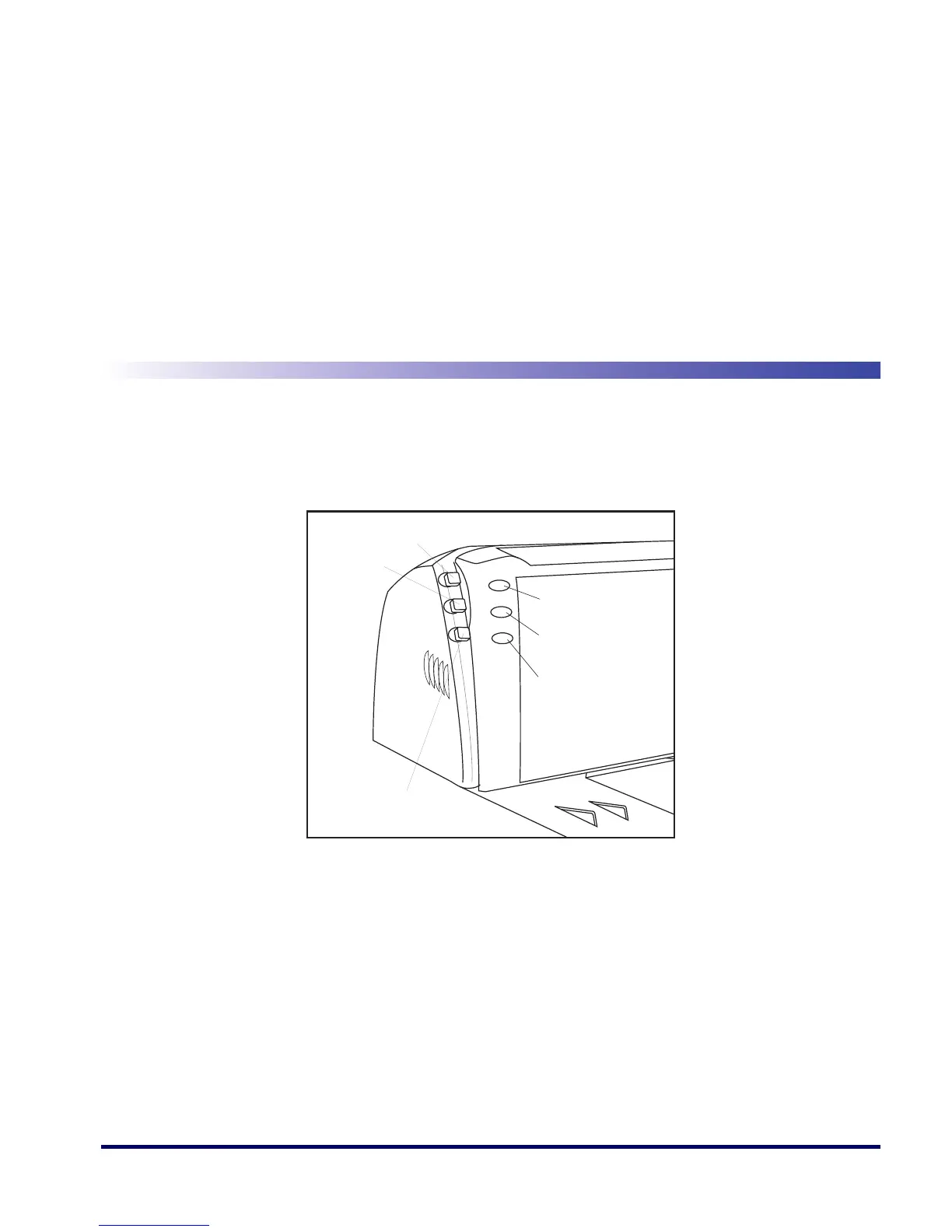

Figure A-1. Scanner and Scale Controls
Manual EAS
Deactivation Push Button
Volume/Tone Push Button
Scale Zero
Push Button
EAS LED (Tri-Color)
Scanner LED (Green)
Scale LED (Yellow)
