Operational Maintenance
Product Reference Guide 3-13
Vertical Scan Window Replacement
The Vertical Scan Window enclosed in the All Weighs™ Platter is a
replaceable part. Follow these instructions to remove and replace the win-
dow:
To remove the Vertical Scan Window:
1. Grasp the platter as shown in Figure 3-3 and gently lift it from the
scanner.

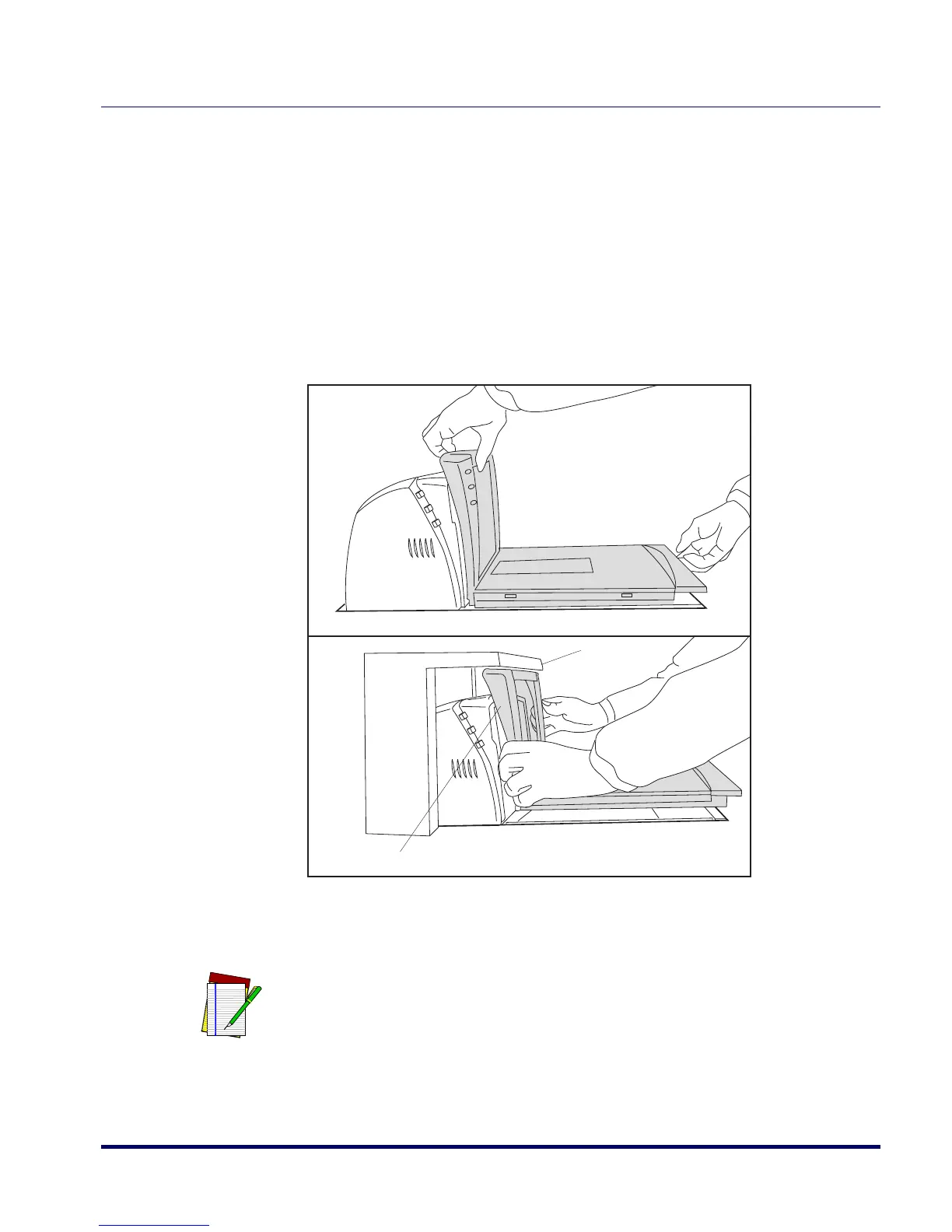

Figure 3-3. Platter Removal
2. If the top edge of the platter is blocked, you may find it easier to
grasp the platter vertical bezel as shown in Figure 3-3b.
Vertical Bezel
Obstruction
a
b
OR
NOTE
Use caution to avoid damage to the now exposed horizontal and vertical scan
windows. If cleaning of these windows is necessary, use a nonabrasive, mild,
water-based glass cleaner and paper towels or lint-free cleaning tissues and
take care to avoid scratching these windows (damage to the windows can
degrade scanning performance).
