Remote Scale Display Placement/Installation
Product Reference Guide 2-27
Figure 2-12 provides physical dimensions for the AC/DC Adapter (part
number 8-0582).

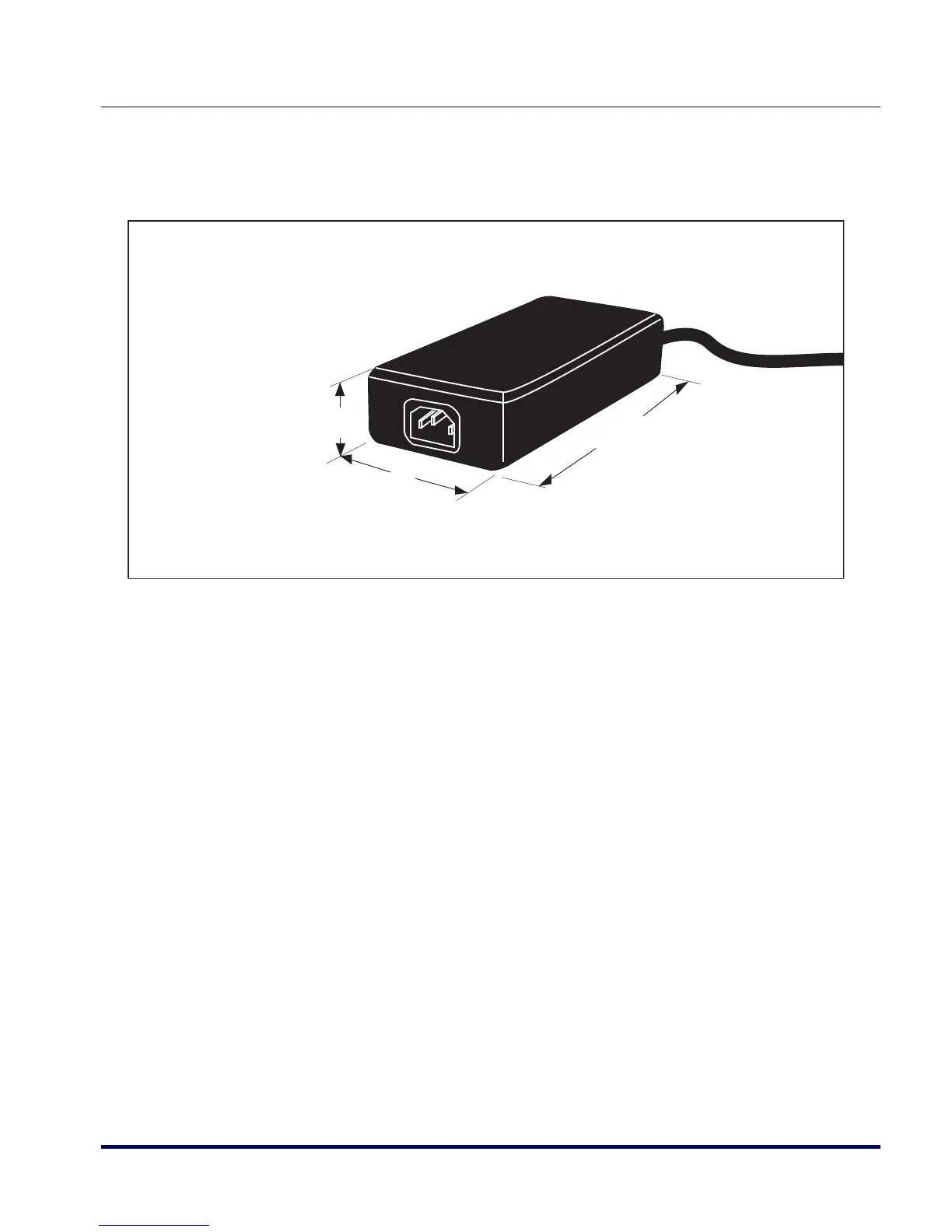

Figure 2-12. Physical Measurements: AC/DC Adapter
Remote Scale Display Placement/Installation
When installing the optional Remote Scale Display, consider both the cus-
tomer’s viewing angle and the amount of daily ambient light conditions
anticipated at this installation site.
Figure 2-13 shows available adjust-
ment for the display head.
Lighting Considerations
The display will be easily readable unless placed in direct sunlight or other
very strong light sources. Light interference will not be a factor in most
installations.
5.51"
(14 cm)
3.1"
(7.8 cm)
2.3"
(5.8 cm)
