Datalogic PowerScan M8300 User Manual

Enter Configuration
Exit and Save Configuration
Ì$+;Î

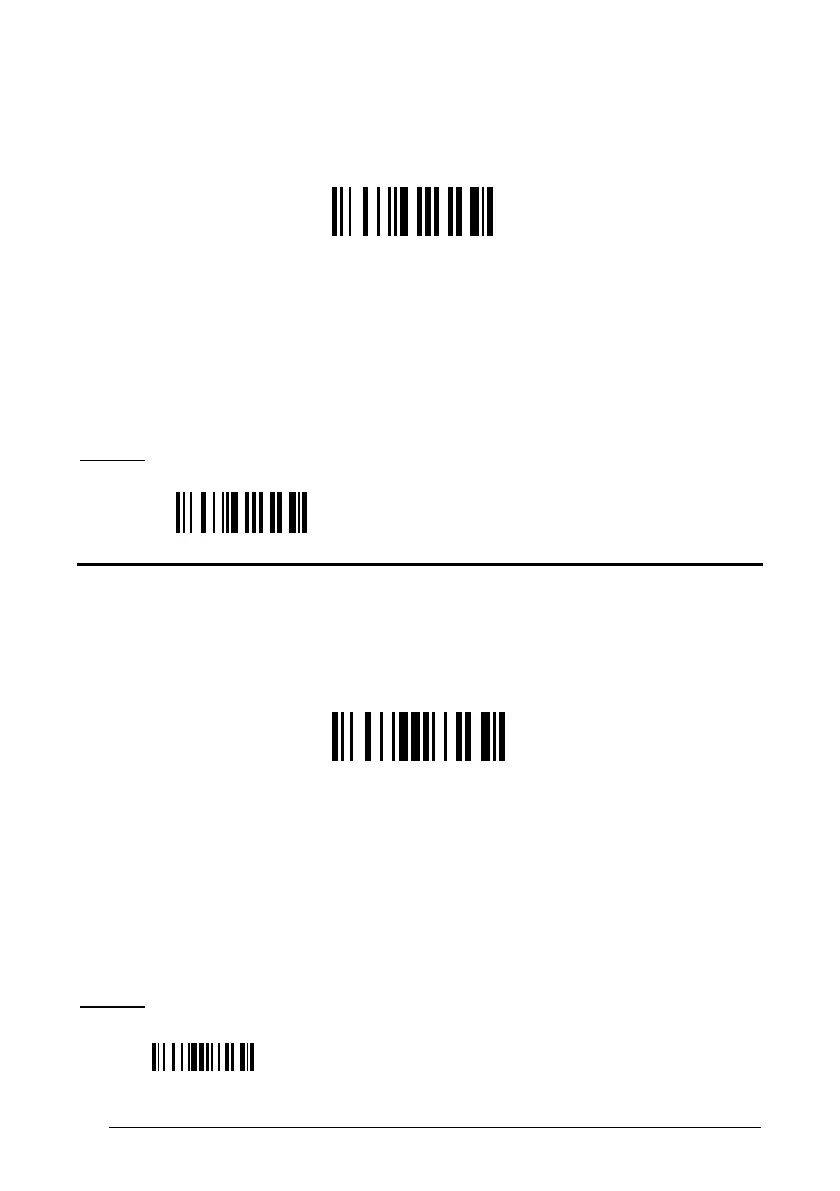

16-KEY DK MODEL PARAMETERS
Ì$-?Î
142
define function key
 Read the above code to associate a Function Key or the Shift key (if defined as F5) .
 Specify which Function Key you want to associate (F1 – F4 or Shift
↑ F5) by scanning a
barcode (1-5) from the hex numeric table in the back of this manual.
 Select the label command you want to associate from the table on page 141. Scan a
barcode from the hex numeric table corresponding to the command ID (0-A)
Example : To define Function Key 1= Clear command
Define Function Key Func Key # CMD ID
Read +
1
+
7
STRING TABLE
The Powerscan 16-key model allows you to define a String Table, a database with room for five
entries, from String1 to String5, which can be recalled using a Function Key. This is done with
Function Key Programming, described on page 141.
The string can be a single ‘char’. Default = empty strings.
define string
 Read the above code.
 Select the string number you want to add by scanning a barcode (1 – 5) from the hex
numeric table in the back of this manual.
 Select the desired string length by scanning a barcode (0 – A) from the hex numeric table.
 Define the label string by scanning characters or numerals from the hex numeric table.
Example : To define String 1 = DATALOGIC
Define string String # Length Hex codes String text
Read +
2
+
9
+
44+41+54+41+4C
+4F+47+49+43
=
DATALOGIC



Datalogic PowerScan M8300 Specifications

General

Scanner type	1D
Maximum range	30 m
Read rate (max)	40 reads/s
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Code 16K, Code 49, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional
Tilt reading angle	-20 - 20 °
Pitch reading angle	-55 - 55 °
Operating time	240 min
Dimensions (WxDxH)	114 x 69 x 210 mm
Bluetooth	No
Operating frequency	910 MHz
Input voltage	10 - 30 V
Battery capacity	2150 mAh
Power requirements	0.33 - 1A
Number of reads per charge	60000
Certification	IP64, China RoHS, EU RoHS, CDRH Class II, IEC 60825-1 Class 2
Keys quantity	3 keys
Product color	Black, Yellow
LED indicators	Charging, Power
Display resolution	32 x 96 pixels
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Weight	393 g
