ADVANCED FUNCTIONS
35
8
8.6.1

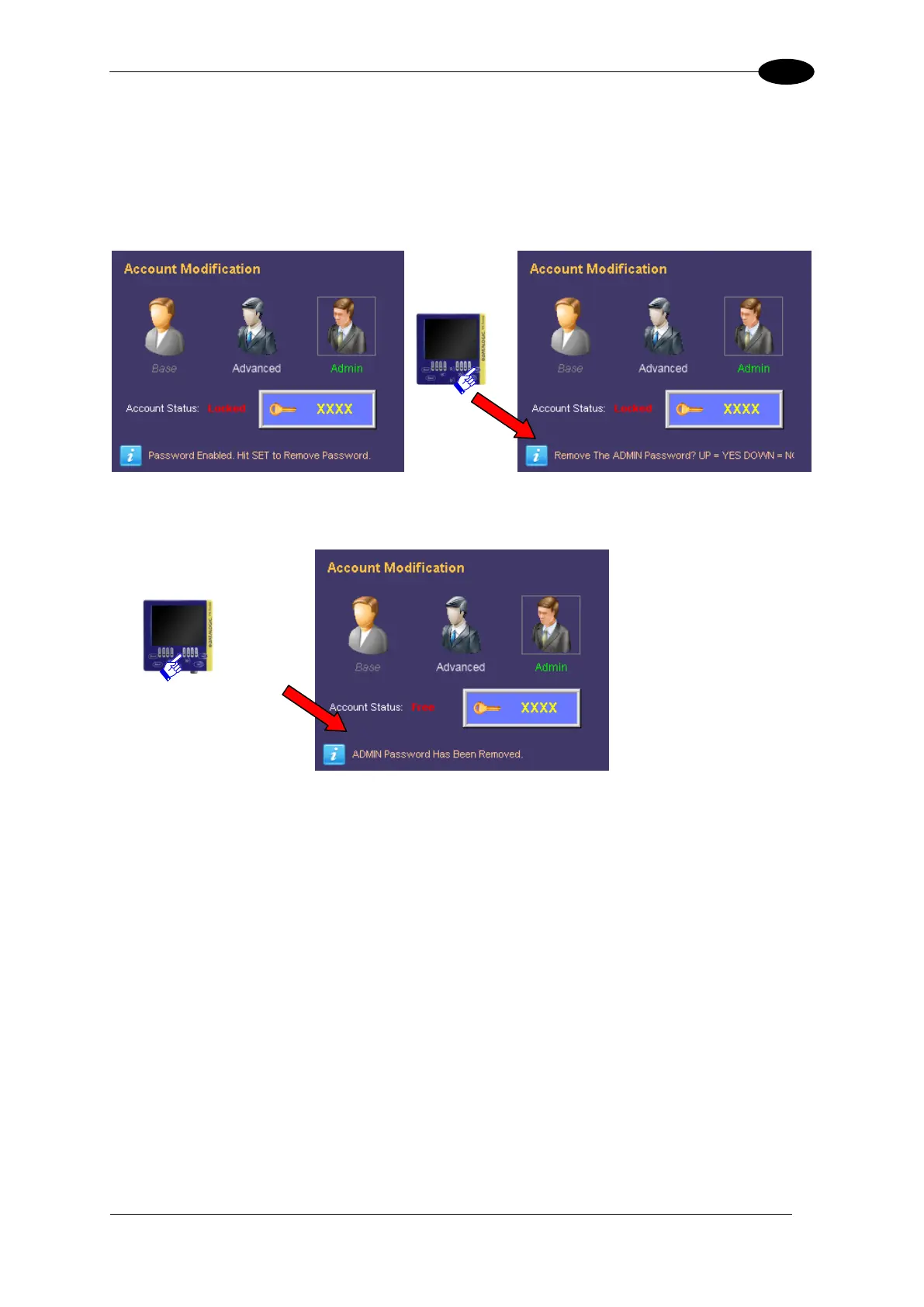

Removal of the Pass
word
To
disable
all
the
accounts
and
remove
the
administrator
pas
sword,
the
user
must
log
in
as
“Admin”
.
Access
“Modify Account”
, s
elect
“Admin”
user and press
SET
.
At
this
point
the
system
req
uests
the
user
to
confirm
the
cancellation
of
the
password.
To
confirm press
ARROW UP.
