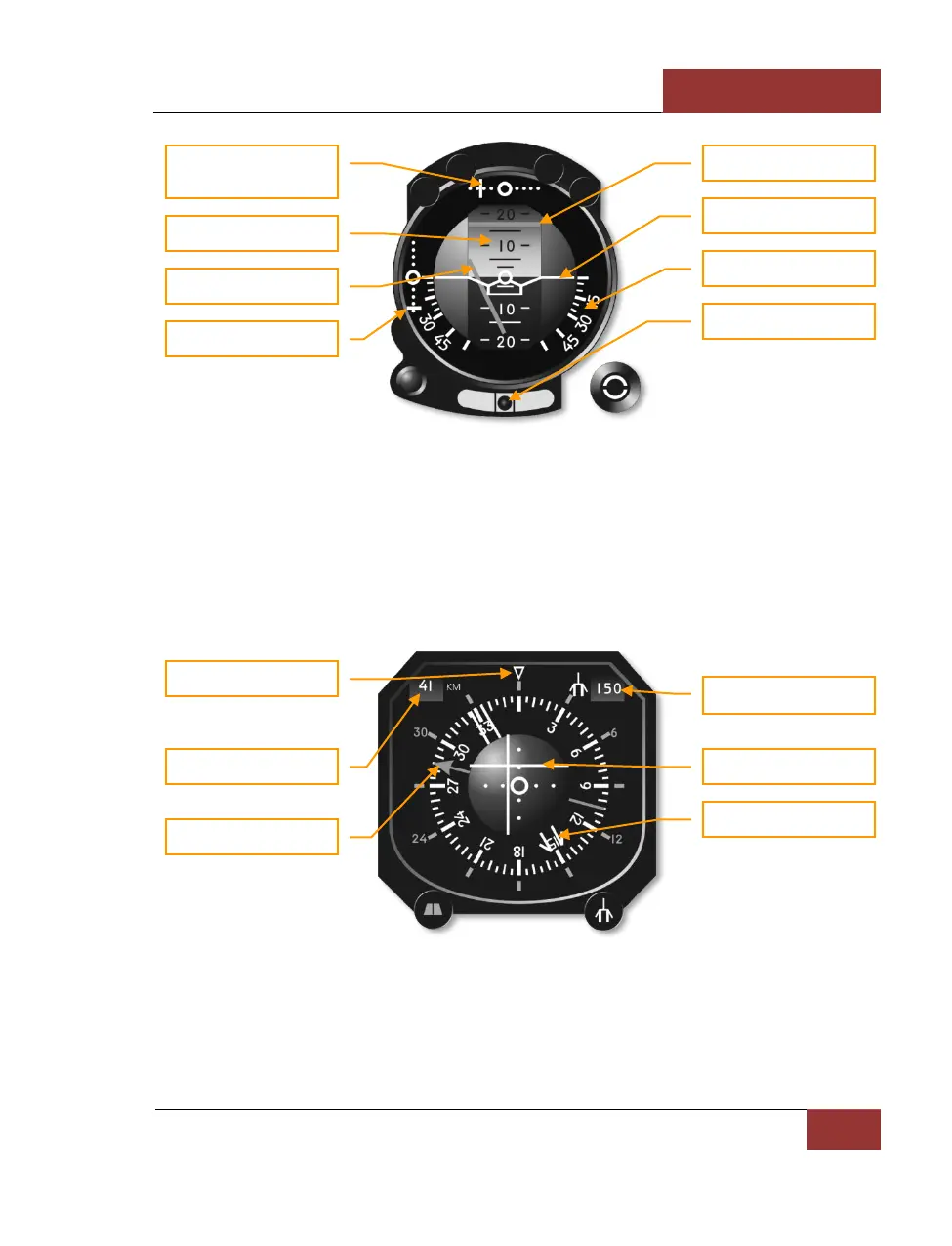

Figure 30: ADI
Horizontal Situation Indicator
The Horizontal Situation Indicator (HSI) provides a top/down view of the aircraft in relation to the
intended course. The compass rotates so that the current heading is always shown at the top. The
Course Arrow shows the required heading and the Bearing Pointer points to the next waypoint.
Distance to the next waypoint and required heading are shown numerically at the top. The ILS
localizer and glide slope bars are in the center.
Figure 31: HSI
Required heading
Indicator
Pitch scale
Required bank
Required altitude
Required pitch
Aircraft datum
Bank scale
Slip indicator
Heading
Distance to waypoint
Bearing pointer
Required heading
ILS bars
Desired course arrow
