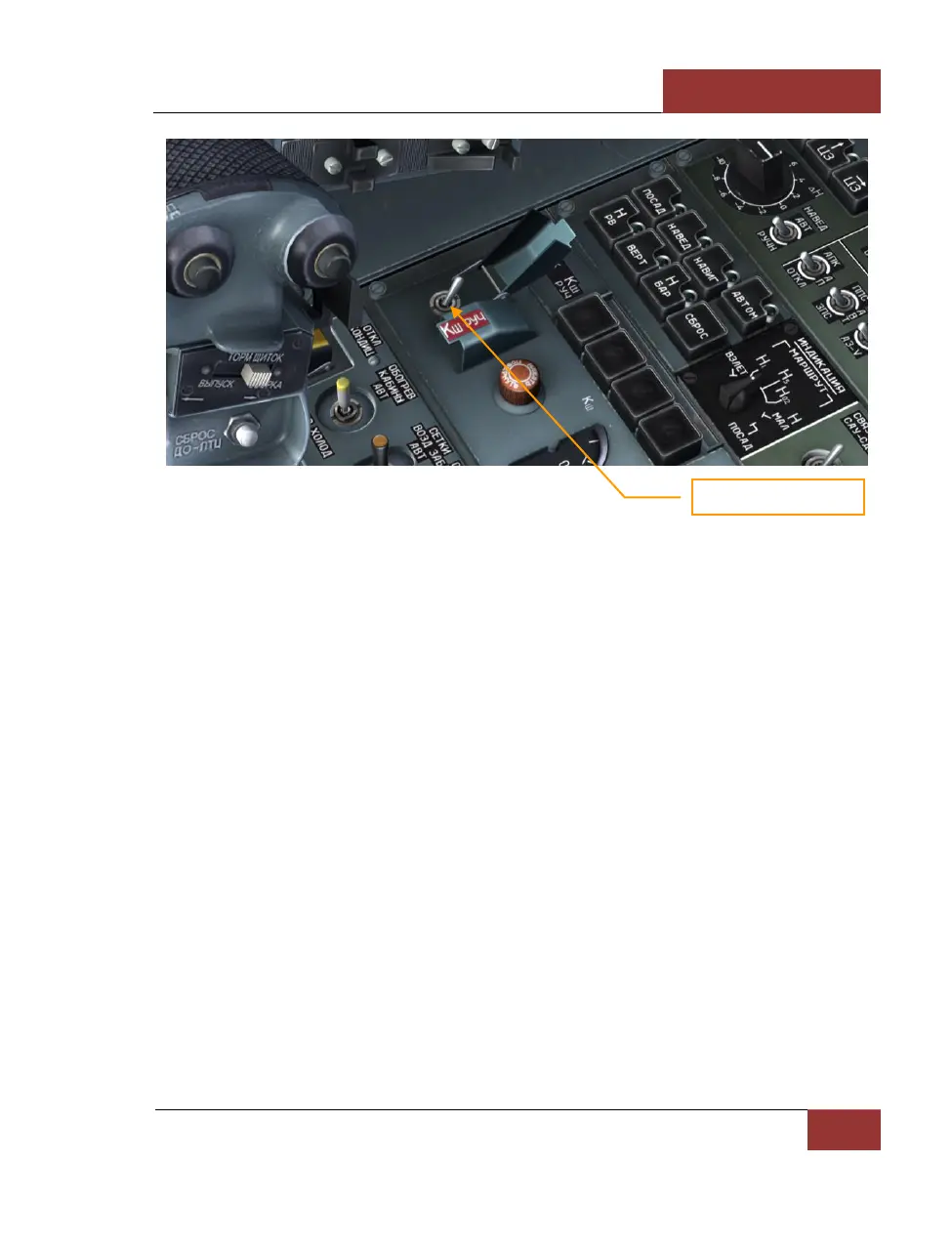

Figure 40: Direct control switch
Trim Mechanism
Trimming of the aircraft control stick is performed by pressing the [RCtrl + .] and [RCtrl + ;] keys
in pitch and [RCtrl + ,] and [RCtrl + /] in roll.
To trim the rudder pedals, the [RCtrl + Z] and [RCtrl + X] keys are pressed.
Trim ranges are as follows:
• Pitch: 38% of backward stick travel and 50% of forward stick travel
• Roll: 50% on both sides
• Rudder pedals: 50% on both sides
The neutral position of the trim mechanism is controlled by three annunciators: “ТРИММ. СТ.
НЕЙТР.” (neutral stabilizer trim), “ТРИММ. ЭЛ. НЕЙТР.” (neutral aileron trim), and”ТРИММ. Р.Н.
НЕЙТР.” (neutral rudder trim) in the lower part of the main cockpit panel.
