The reticle displayed on the HUD is an analog to a simple collimator sight. Lead aiming and
computing is accomplished with the help of the reticle markings or "by eye".
The reticle central crosshair is aligned with the gun axis. Missile seekers aimed in Fi0 mode are
aligned somewhat lower below the central crosshair, at the position of the "X" aiming mark.

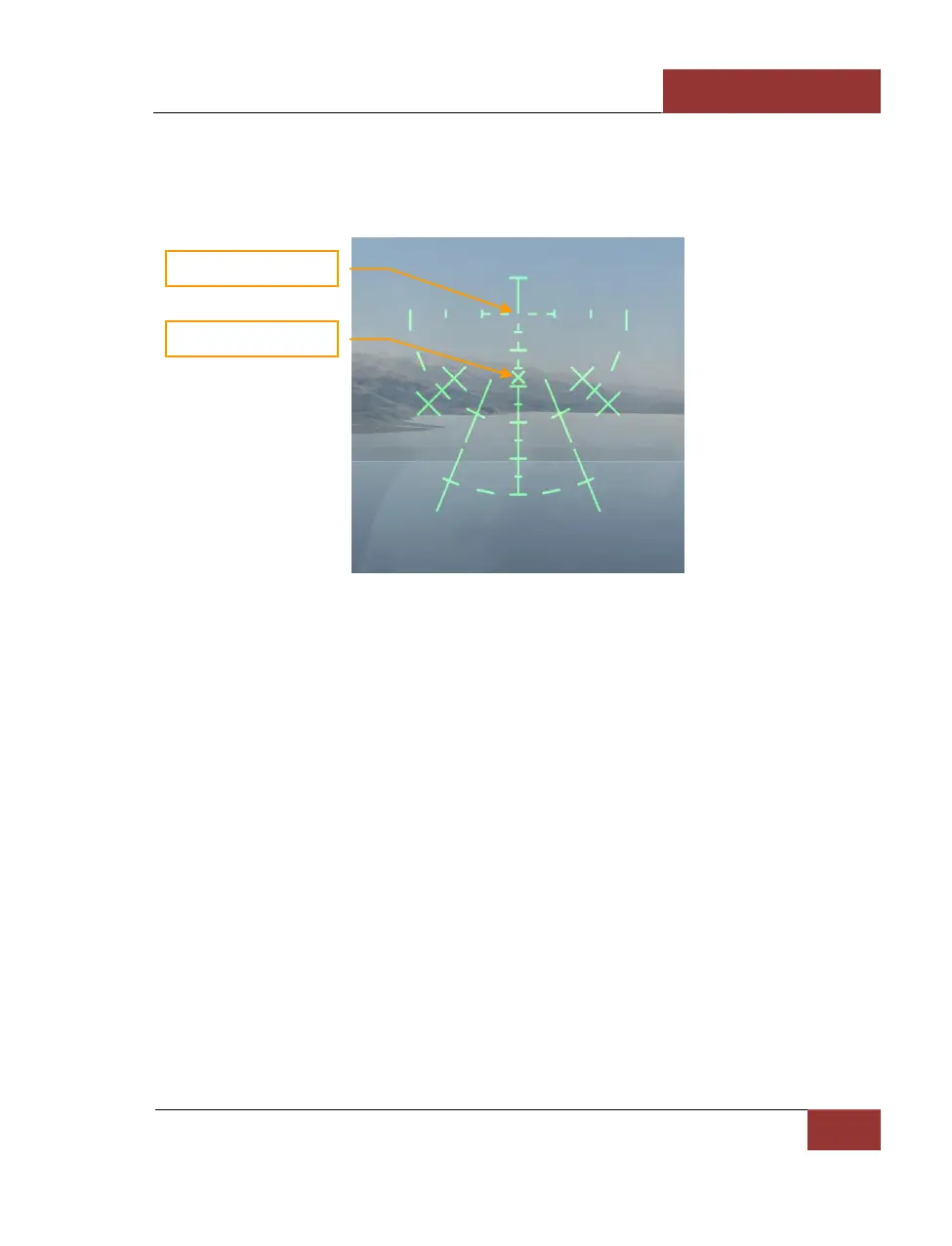

Figure 63: Reticle
Central crosshairs
Missile seeker
