km/h and altitudes from 20 m to 27 km. Maximum target and launch aircraft altitude difference can
be up to 10 km. Maximum target G is eight. The combined launch of R-27 missiles with different
seeker variants increases the resistance to target counter measures. The R-27 family of missiles was
developed by the Vympel design bureau and went into operational service between 1987 and 1990.
Today, all versions of the MiG-29 and Su-27 fighters are equipped with these missiles.

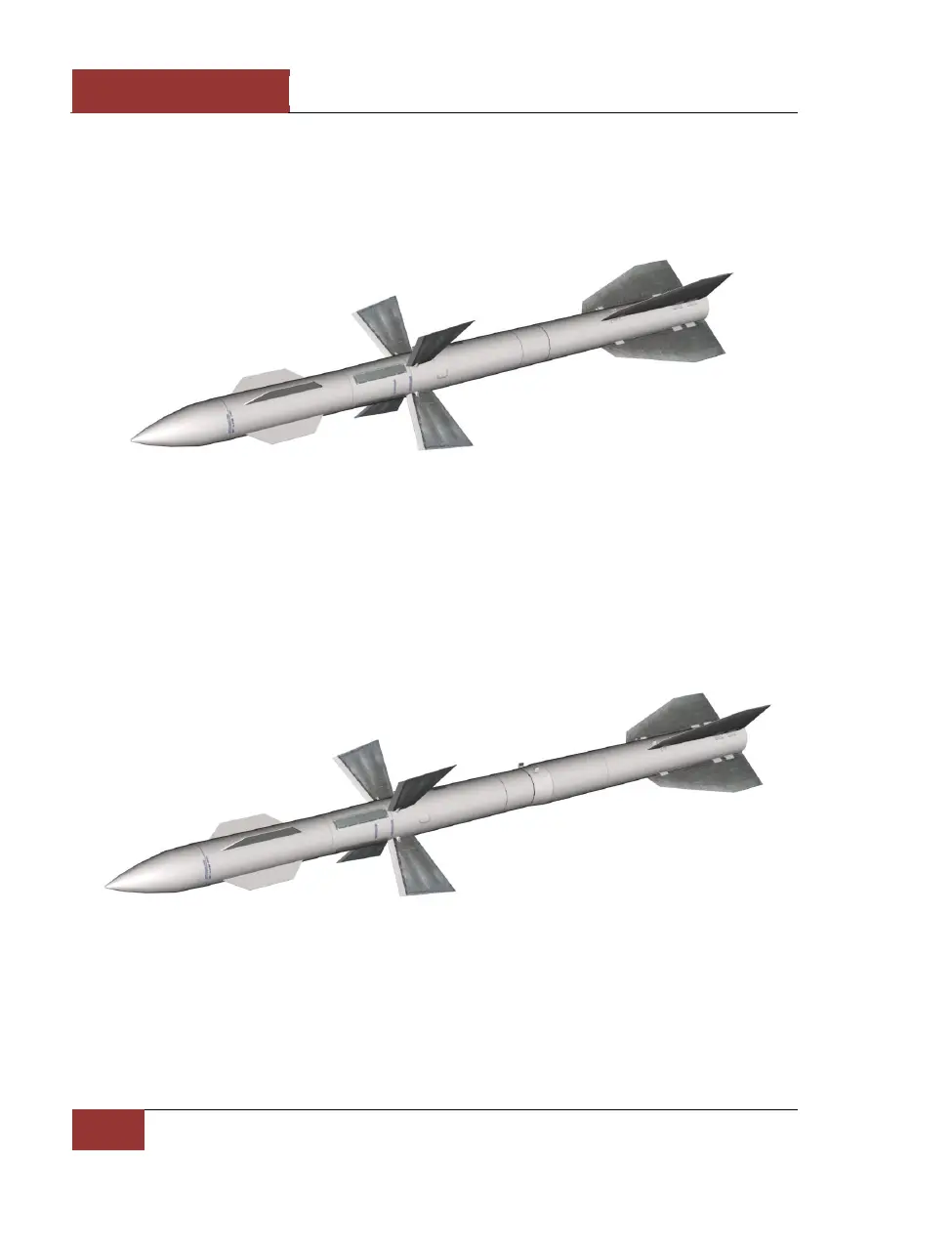

Figure 66: R-27R missile
R-27R. "Product 470R" (AA-10А Alamo) is a radar-guided, medium-range "air-to-air" missile that
went into operational service in 1987. The missile has inertial navigation guidance system with radio
correction. For terminal guidance, the R-27R has a semi-active radar seeker. The maximum launch
range is 30-35 km. The maximum target speed is 3600 km/h, the maximum target G is eight, and the
initial weight of the R-27R is 253 kg. It has a length of 4 m, a maximum body diameter of 0.23 m,
and a wing span of 0.77 m. The cruciform control surfaces span 0.97 m and the expanding rod
warhead weighs 39 kg.
Figure 67: R-27ER missile
R-27ER. "Product 470ER" (AA-10C Alamo) is a radar-guided, medium-range missile that is a
modification of the R-27R with a larger motor. The missile has inertial navigation guidance system
with radio correction. For terminal guidance, the R-27ER has a semi-active radar seeker. The
maximum, effective launch range is 66 km. The maximum target altitude is 27 km. The R-27ER’s
initial weight is 350 kg; the length is 4.78 m; the maximum body diameter is 0.26 m; and the wing
