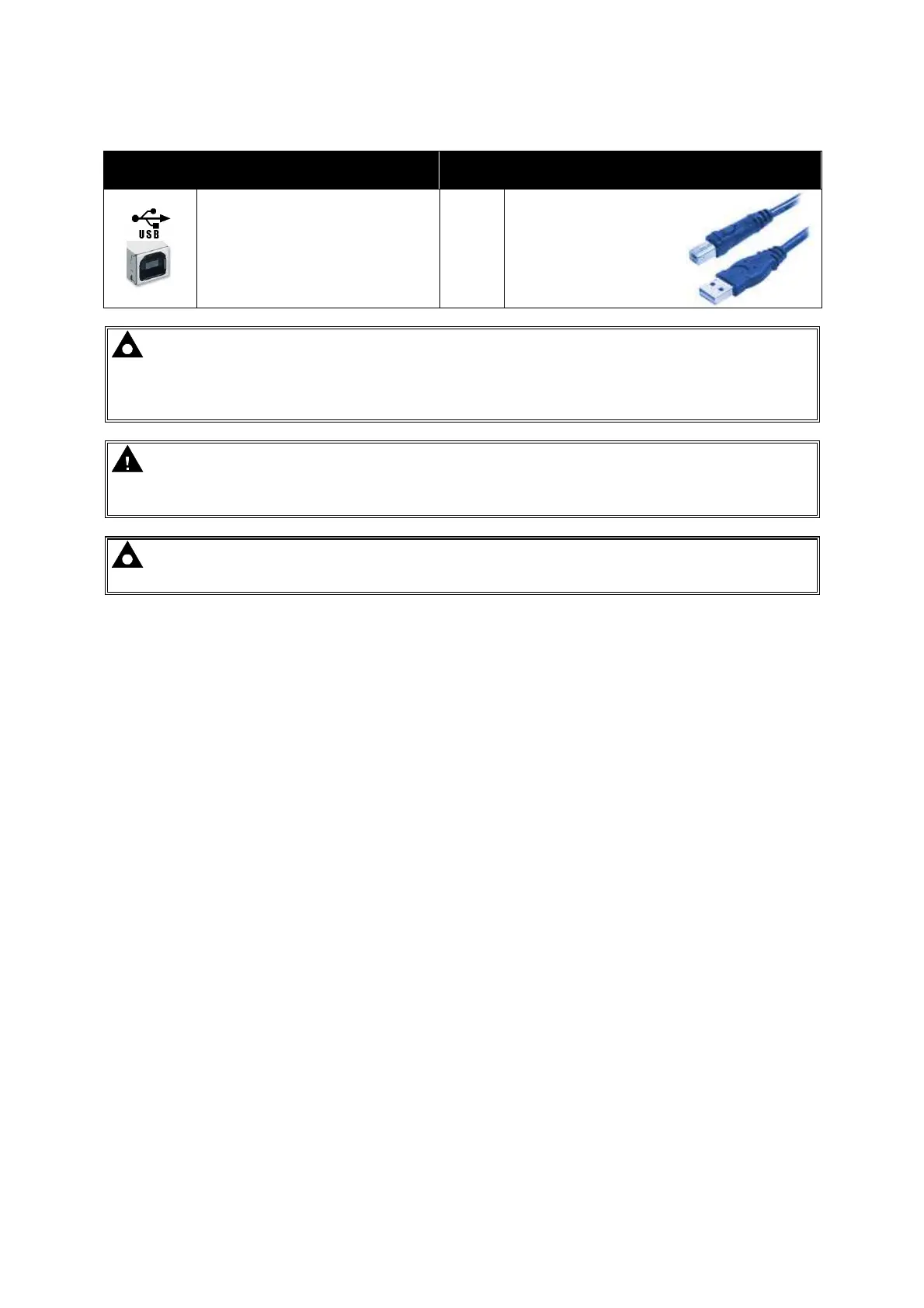

4.1.6 PC CONFIGURATION INTERFACE CONNECTOR
Description
Cable
Size
Notes
Socket for connection to PC
with DSE Configuration Suite
Software
0.5mm²
AWG 20
This is a standard
USB type A to type B
connector.
NOTE: The USB connection cable between the PC and the module must not be extended
beyond 5m (yards). For distances over 5m, it is possible to use a third party USB extender.
Typically, they extend USB up to 50m (yards). The supply and support of this type of
equipment is outside the scope of Deep Sea Electronics PLC.
CAUTION!: Care must be taken not to overload the PCs USB system by connecting more
than the recommended number of USB devices to the PC. For further information, consult
your PC supplier.
NOTE: For further details of module configuration, refer to DSE Publication: 057-172
DSE45xx Configuration Software Manual.
