Viewing The Instrument Pages
43
5.2.7 ALARM ICONS (PROTECTIONS)
An icon is displayed in the Alarm Icon section to indicate the alarm that is current active on the
controller.
In the event of a warning alarm, the LCD only displays the Alarm Icon. In the event of an electrical
trip or shutdown alarm, the module displays the Alarm Icon and the Stop/Reset Mode
button
LED begins to flash.
If multiple alarms are active at the same time, the Alarm Icon automatically cycles through all the
appropriate icons to indicate each alarm which is active.

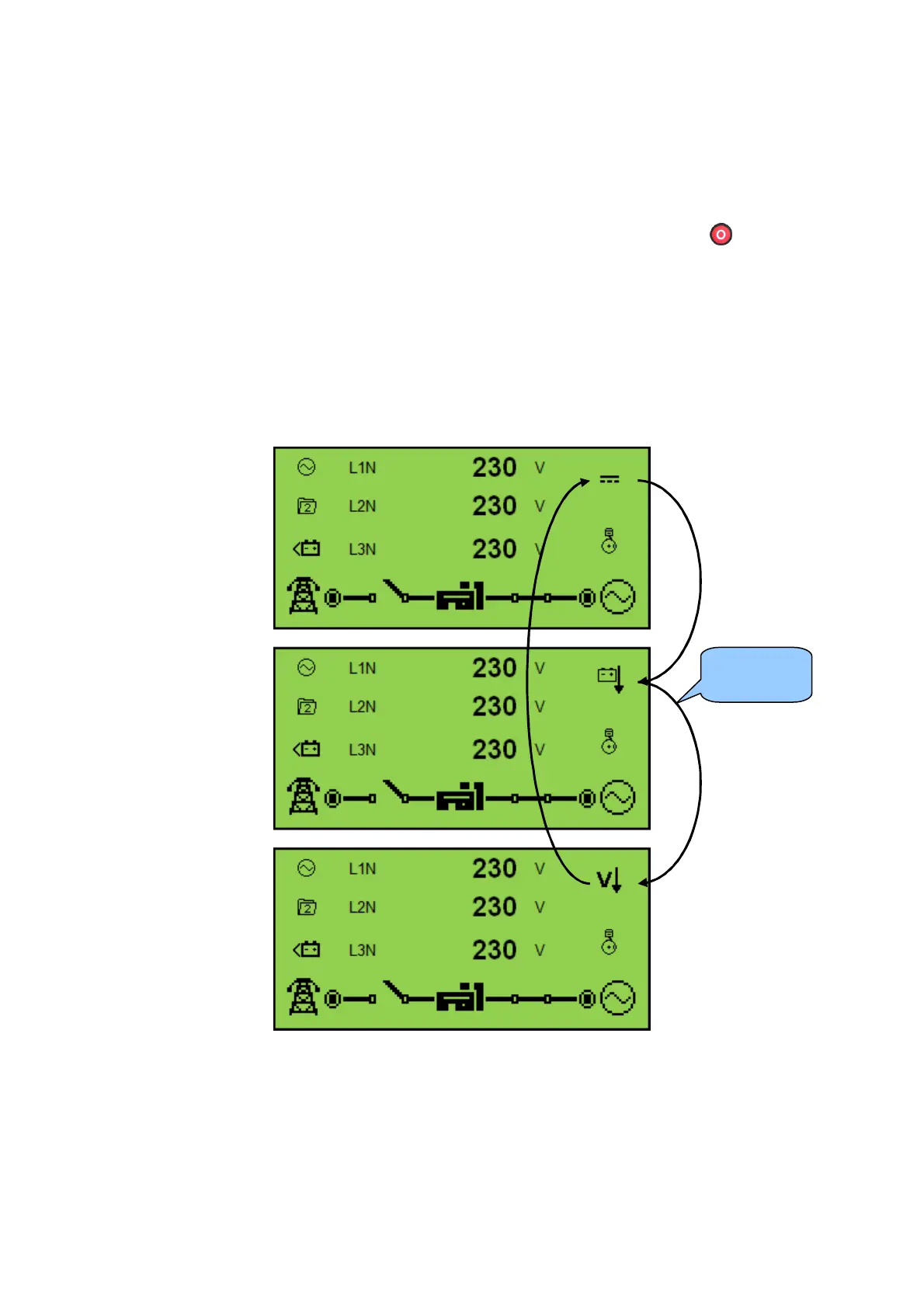

Example:
If the DSE controller was sensing a charge alternator failure alarm, delay over current alarm and a
AC under voltage alarm at the same time, it would cycle through all of the icons to show this.
Icon cycle
procedure
