DEEP SEA ELECTRONICS DSE4520 User Manual

Viewing The Instrument Pages
51

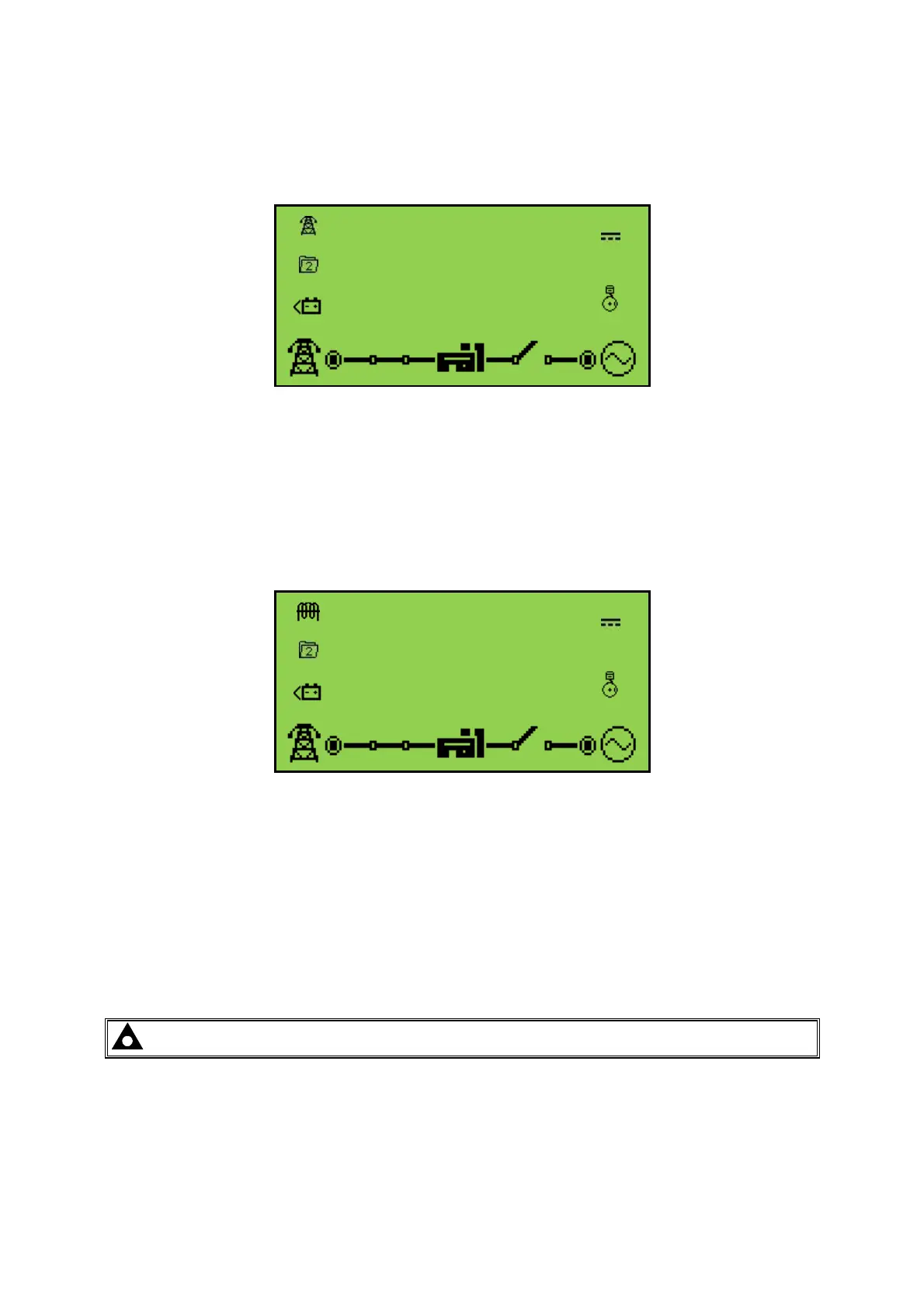

5.3.5 MAINS (DSE4520 ONLY)
These pages contain electrical values of the mains, measured or derived from the module’s voltage
inputs.
L1N
230
V
L2N
230
V
L3N
230
V
• Mains Voltage (ph-N)
• Mains Voltage (ph-ph)
• Mains Frequency
5.3.6 LOAD
These pages contain electrical values of the load, measured or derived from the module’s voltage
and current inputs. The power values displayed depend on which supply is on load.
L1
20
kW
L2
20
kW
L3
20
kW
• Generator Current (A) *
• Mains Current (A) (DSE4520 only)*
• Load ph-N (kW) *
• Total Load (kW) *
• Load ph-N (kVA) *
• Total Load (kVA) *
• Load ph-N (kVAr) *
• Total Load (kVAr) *
• Power Factor ph-N *
• Power Factor Average *
• Accumulated Load (kWh, kVAh, kVArh) *
NOTE: * Not applicable to the DSE45xx-01 variant.
