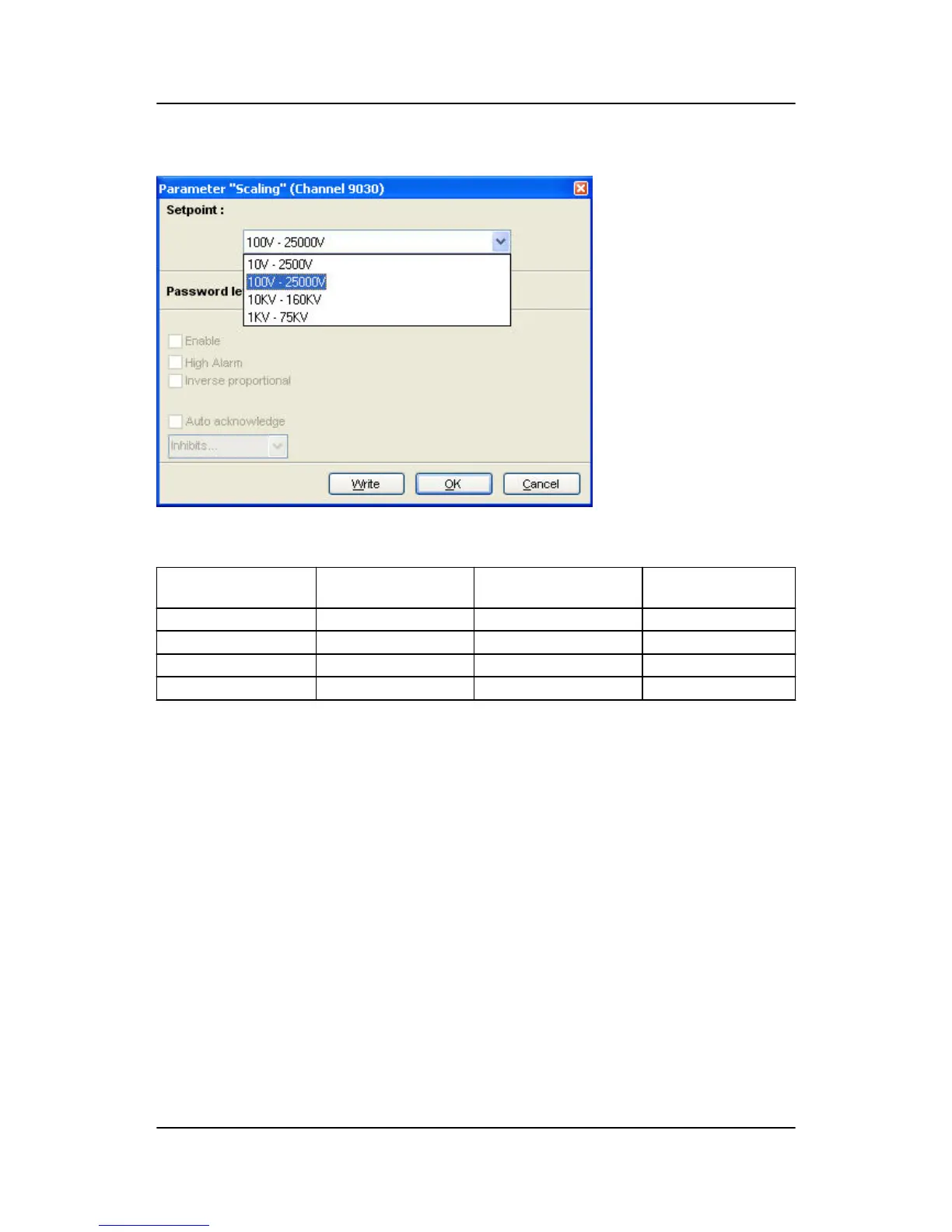

Changing the voltage scaling will also influence the nominal power scaling:
Scaling parameter
9030
Nom. settings 1 to 4
(power)
Nom. settings 1 to 4
(voltage)
Menu: 6041, 6051 and
6053
10 V-2500 V 1.0-900.0 kW 10.0 V-2500.0 V 10.0 V-2500.0 V
100 V-25000 V 10-20000 kW 100 V-25000 V 100 V-25000 V
1 kV-75 kV 0.10-90.00 MW 1.00 kV-75.00 kV 1.00 kV-75.00 kV
10 kV-160 kV 1.0-900.0 MW 10.0 kV-160.0 kV 10.0 kV-160.0 kV
3.9 Single-line diagrams
The GPC-3 can be used for numerous applications. A few examples are shown below, but due to the flexibili-
ty of the product it is not possible to show all applications. The flexibility is one of the great advantages of this
controller.
GPC-3 DRH 4189340587 UK Functional descriptions
DEIF A/S Page 16 of 122
