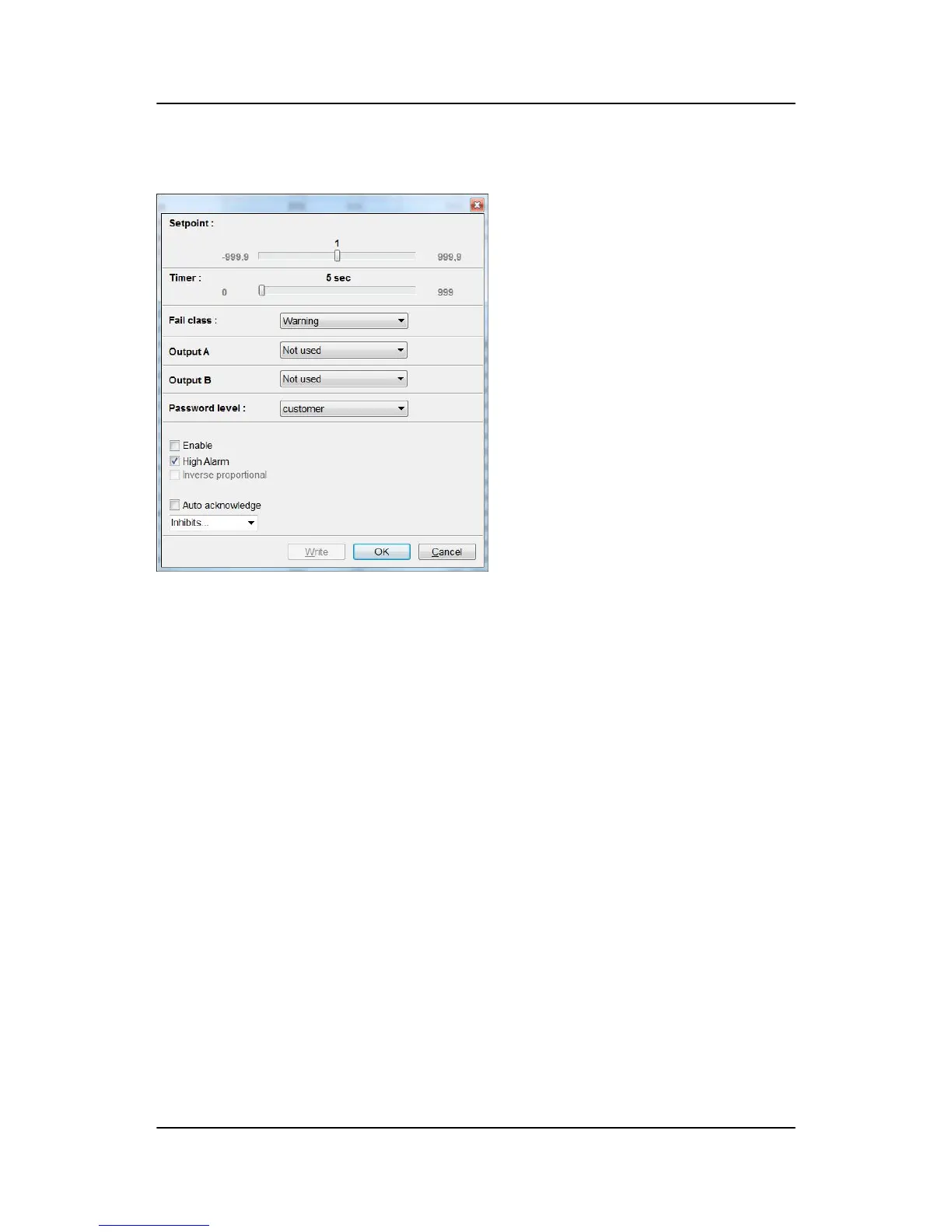

The configurations are done in menus 4610-4650 and 4680-4730.
4.5 Digital inputs
The unit has a number of digital inputs. These inputs can be configured as inputs with dedicated logic func-
tions, or they can be configured as alarm inputs.
Input functions
The table below illustrates all the input functions available in the GPC-3 and shows in which operation mode
the described function will be active.
X = function can be activated.
GPC-3 DRH 4189340587 UK Additional functions
DEIF A/S Page 35 of 122
