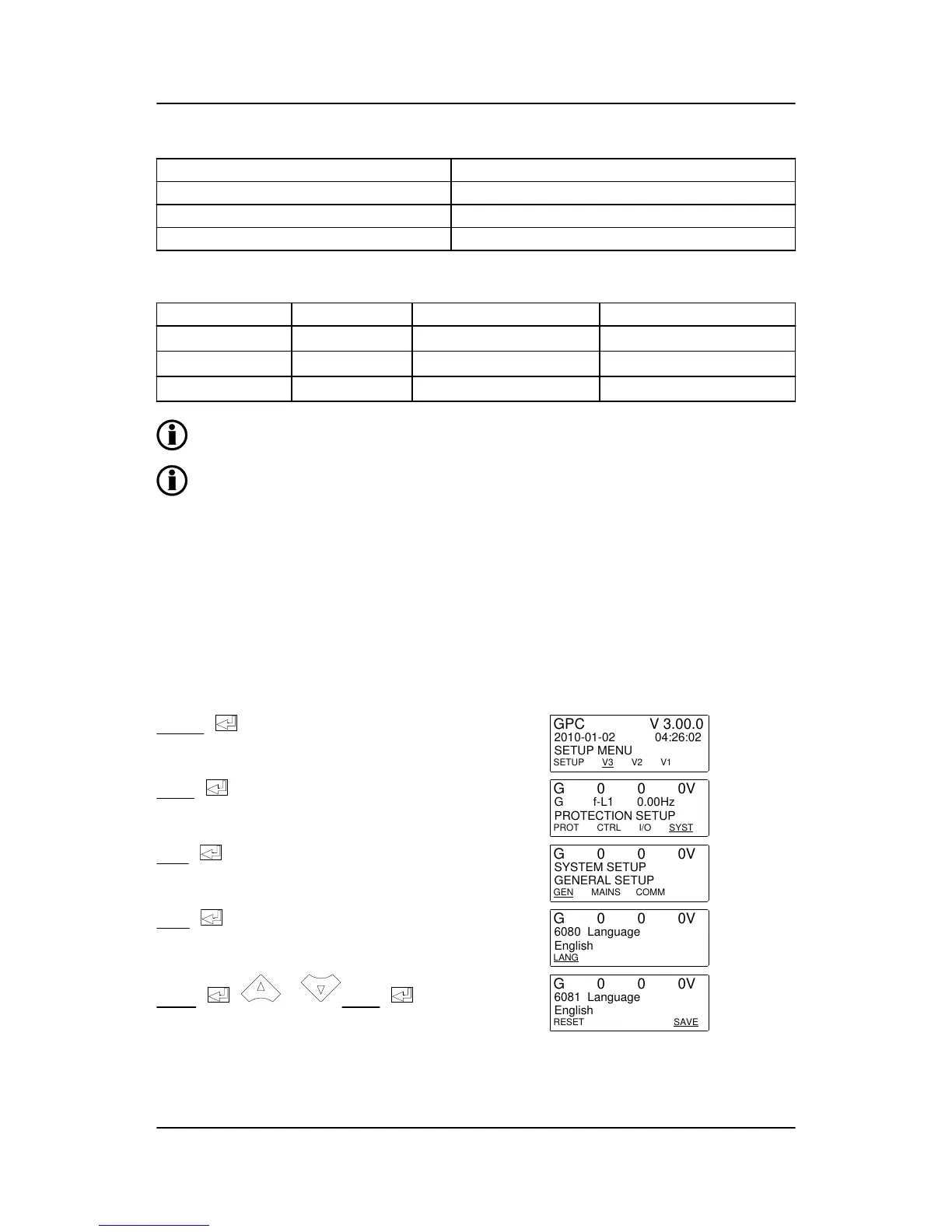

Page #63 background imageLoading...
Page #63 background image
Term. number Output
20 kWh
21 kvarh
22 Common terminal
The number of pulses depends on the actual adjusted setting of the nominal power:
Generator power Value Number of pulses (kWh) Number of pulses (kvarh)
P
NOM
<100 kW 1 pulse/kWh 1 pulse/kvarh
P
NOM
100 to 1000 kW 1 pulse/10 kWh 1 pulse/10 kvarh
P
NOM
>1000 kW 1 pulse/100 kWh 1 pulse/100 kvarh
The kWh measurement is shown in the display as well, but the kvarh measurement is only
available through the transistor output.
Be careful - the maximum burden for the transistor outputs is 10 mA.
4.11 Language selection
4.11.1 Language selection
The unit can display different languages. It is delivered with one master language, which is English. This is
the default language, and it cannot be changed. In addition to the master language, 11 different languages
can be configured. This is done via the PC utility software “Translations” function.
The active language is selected in menu 6080. The language can be changed when connected to the PC
utility software. It is not possible to make language configuration from the display, but already configured lan-
guages can be selected.
SETUP +
SETUP MENU
SETUP V3 V2 V1
GPC V 3.00.0
2010-01-02 04:26:02
SYST +
PROTECTION SETUP
PROT CTRL I/O SYST
G 0 0 0V
G f-L1 0.00Hz
GEN +
GENERAL SETUP
GEN MAINS COMM
G 0 0 0V
SYSTEM SETUP
6080 +
English
LANG
G 0 0 0V
6080 Language
LANG + + or SAVE +
English
RESET SAVE
G 0 0 0V
6081 Language
GPC-3 DRH 4189340587 UK Additional functions
DEIF A/S Page 63 of 122
