4.2.2 Alarm inhibit
In order to select when the alarms are to be active, a configurable
inhibit
setting for each alarm has been

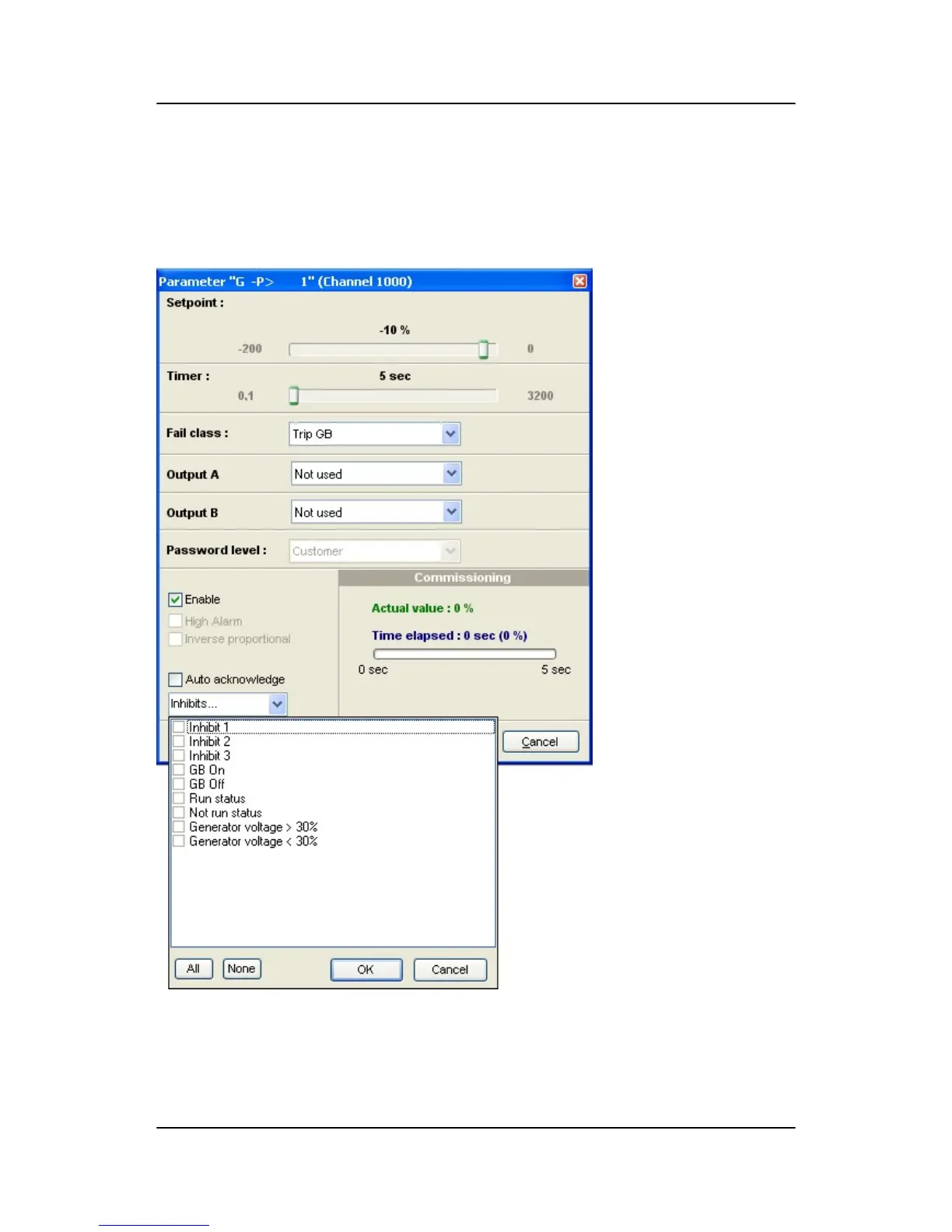

made. The inhibit functionality is only available via the PC utility software. For each alarm there is a drop-
down window
, in which it is possible to select the signals that must be present in order to inhibit the alarm.
GPC-3 DRH 4189340587 UK
Additional functions
DEIF A/S
Page 29 of 122
28
30
Table of Contents
Default Chapter
2
Table of Contents
2
1 General Information
5
Warnings, Legal Information and Safety
5
Warnings and Notes
5
Legal Information and Disclaimer
5
Safety Issues
5
Electrostatic Discharge Awareness
5
Factory Settings
6
About the Designer's Reference Handbook
6
General Purpose
6
Intended Users
6
Contents and Overall Structure
6
2 General Product Information
7
Introduction
7
Type of Product
7
Options
7
PC Utility Software Warning
7
3 Functional Descriptions
8
Standard Functions
8
Regulation Modes
9
Fixed Frequency
9
Fixed Power
10
Frequency Droop
10
P Load Sharing
12
Measurement Systems
13
Three-Phase System
13
Single Phase System
14
Split Phase System
14
Scaling
15
Single-Line Diagrams
16
Sequences
18
Running Mode Description
21
Password
21
Parameter Access
23
4 Additional Functions
24
Start Functions
24
Start/Stop Threshold
24
Alarm
25
Alarm Function
25
Alarm Inhibit
29
Alarm Jump
31
Alarm Test Mode
31
Breaker
31
Breaker Types
31
Breaker Spring Load Time
31
Differential Measurement
32
Digital Inputs
35
Functional Description
37
Multi-Inputs
42
To 20 Ma
43
To 40 V DC
43
Pt100/1000
43
RMI Inputs
43
RMI Oil
43
RMI Water
44
RMI Fuel
45
Illustration of Configurable Inputs
46
Configuration
47
Scaling of 4 to 20 Ma Inputs
47
Digital
50
Event Log
50
Logs
50
External Set Points
52
External Analogue Set Point
52
Scaling of Analogue Inputs for External Set Point Control
53
External Set Point Selection
56
Fail Class
58
Fail Class Configuration
59
Frequency-Dependent Power Droop
60
Language Selection
63
Memory Backup
64
Load Sharing
64
Power Limit Set Point
70
Four-Stage Power Limit Set Point
70
M-Logic
70
Mode Configuration
71
Manual Mode
71
Not in Remote
72
Modes Active
72
Nominal Settings
73
Relay Setup
74
Limit Relay
75
Service Menu
77
Step-Up and Step-Down Transformer
81
Step-Up Transformer
81
Vector Group for Step-Up Transformer
82
Setup of Step-Up Transformer and Measurement Transformer
89
Vector Group for Step-Down Transformer
90
Setup of Step-Down Transformer and Measurement Transformer
92
5 Protections
94
General
94
Inverse Time Over-Current
96
Reverse Power
99
Trip of Non-Essential Load (NEL)
100
Reset Ratio (Hysteresis)
101
6 PID Controller
102
Proportional Regulator
103
Relay Control
108
7 Synchronisation
111
General Information
111
Dynamic Synchronisation
111
Close Signal
112
Load Picture after Synchronising
112
Static Synchronisation
114
Phase Controller
115
Synchronising Controller
116
Synchronising Vector Mismatch Alarm
117
Asynchronous Synchronisation
118
Blackout Closing
118
Separate Synchronising Relay
119
Inhibit Conditions before Synchronising Mains Breaker
121
