Deif GPC-3 Designers Reference Handbook

4.8.2 Scaling of analogue inputs for external set point control

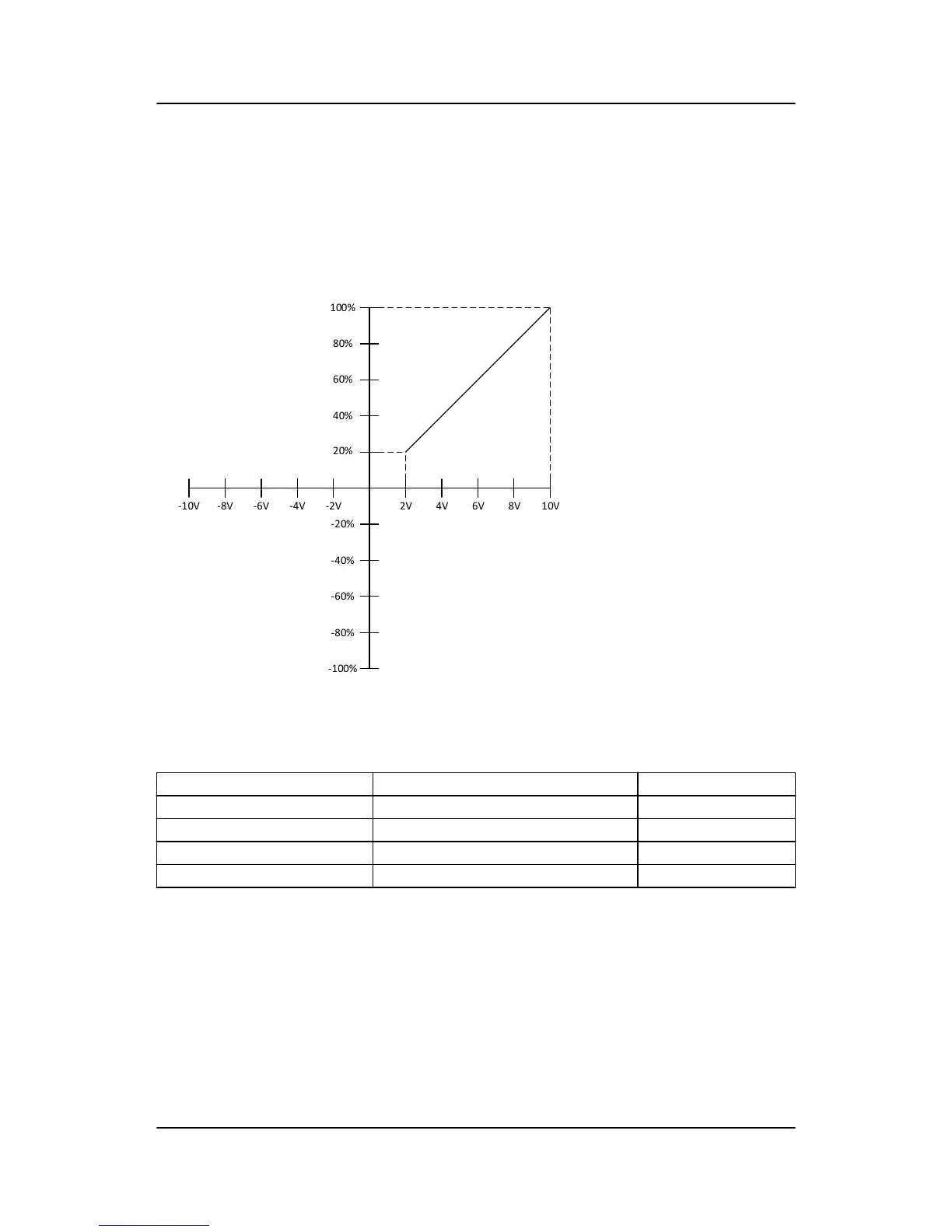

Scaling of fixed power:
The scaling of the maximum and minimum allowed power is done in parameter 2841 “Max. P range” and
2842 “Min. P range”. The scaling is done in percent of the nominal set point.
2V 4V 6V 8V 10V-10V -8V -6V -4V -2V
-20%
-40%
-60%
-80%
-100%
100%
80%
60%
40%
20%
The scaling of the analogue input is done in parameter 2843 “Max. f/P” and 2844 “Min. f/P”.
Parameter Name Setting
2841 Max. P range 100 %
2842 Min. P range 20 %
2843 Max. f/P 10 V
2844 Min. f/P 2 V
Scaling of fixed frequency:
The scaling of the analogue input is done in parameter 2843 “Max. f/P” and 2844 “Min. f/P”. There is no scal-
ing of frequency range, it will always be +/- 5 Hz of the nominal setting.
GPC-3 DRH 4189340587 UK
Additional functions
DEIF A/S Page 53 of 122
