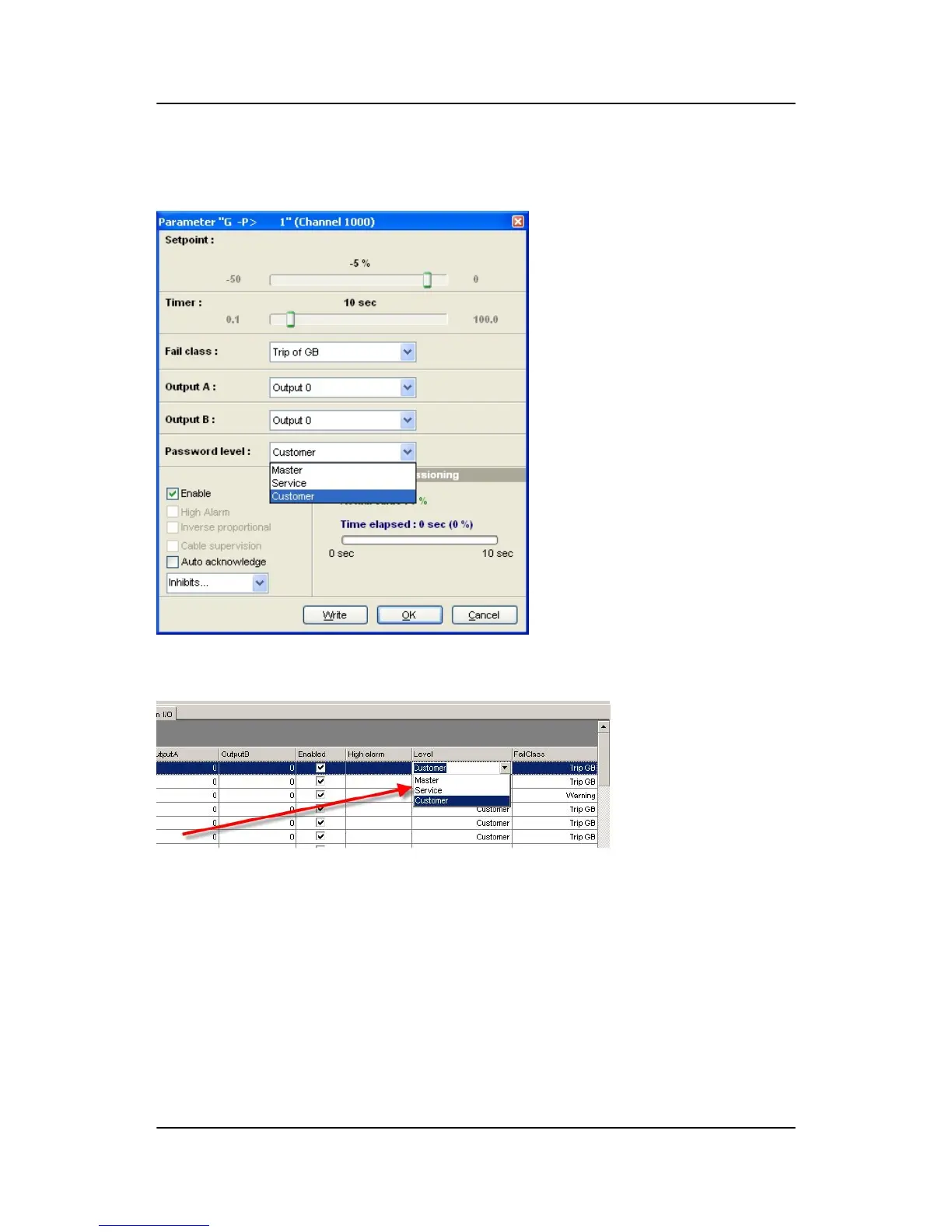

Each parameter can be protected by a specific password level. T
o do so, the PC utility software must be
used. Enter the parameter to be configured and select the correct password level.
The password level can be seen in the parameter view in the column “Level”:
GPC-3 DRH 4189340587 UK
Functional descriptions
DEIF A/S
Page 22 of 122
21
23
