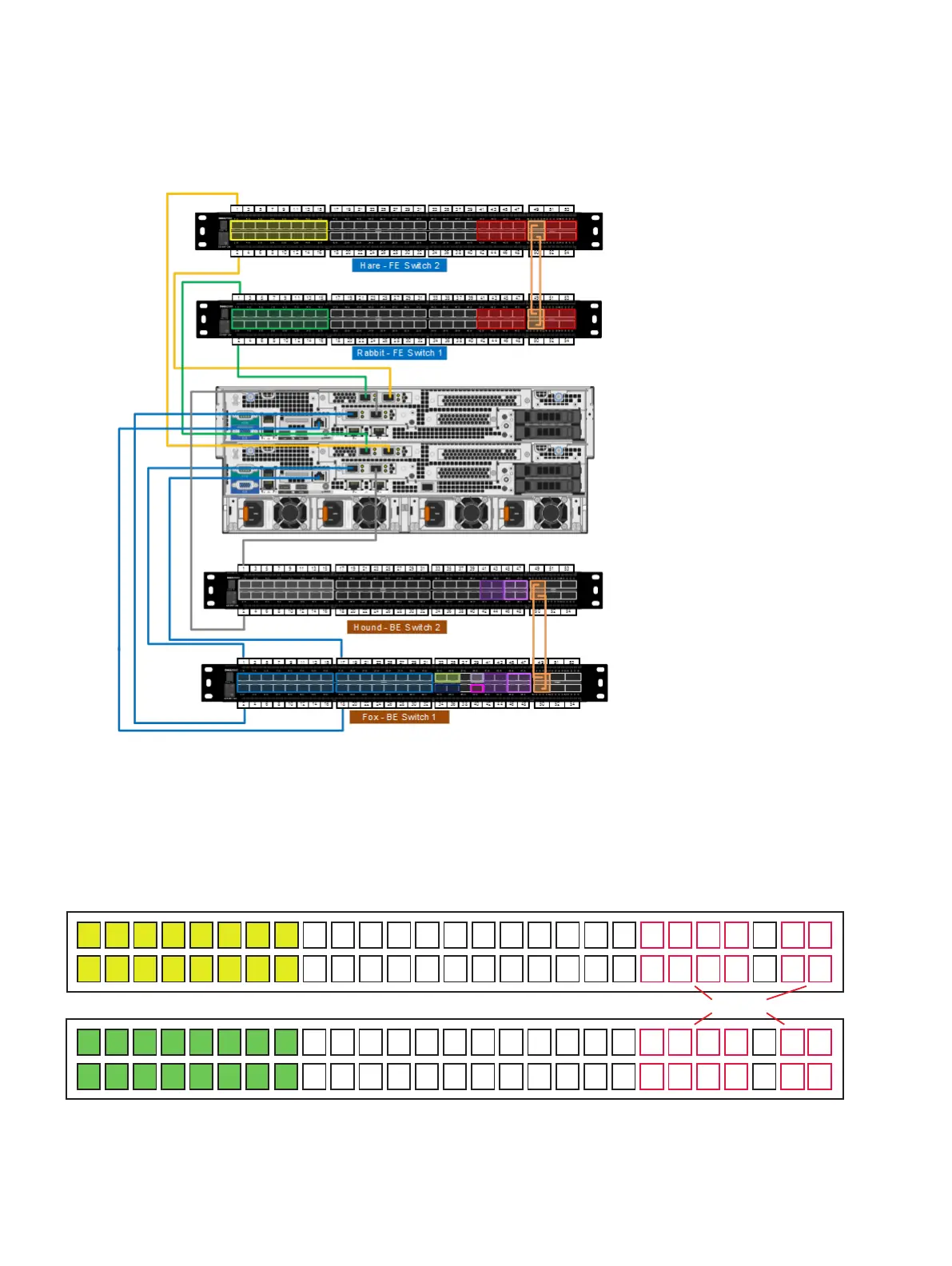

The front-end switch and back-end switch connections to an EX3000D node are shown in the
following diagram.
Figure 88 Front-end and back-end switch connections to an EX3000D node
The numbered front-end switch ports used for connecting to the ports on the EX3000 nodes are
shown in the following diagram. Port 1 on the Hare switch (FE2) connects to port 4 on Node 1.
Port 2 on the Hare switch (FE2) connects to port 4 on Node 2, and so on. Similarly, Port 1 on the
Rabbit switch (FE1) connects to port 3 on Node 1. Port 2 on the Rabbit switch (FE1) connects to
port 3 on Node 2, and so on.
Figure 89
Node ports on front-end switches
Rabbit Switch (FE1)
Hare Switch (FE2)
1
48 46 44 42 40 38 36 34 32 30
28 26 24 22 20 18 16 14 12 10 8 4 6 2
3 5 7 9 11 13 15 17 19 21 23 25
27
29 35
31
33 37
39 41
43 45 47
VLT1
VLT2
1
48 46 44 42 40 38 36 34 32 30 28 26 24 22 20 18 16 14 12 10 8 4 6 2
3 5 7 9 11 13 15 17 19 21 23 25
27
29 35
31
33 37
39 41
43 45 47
VLT1
VLT2
customer ports
51
52
52
51
53
53
54
54
EX3000 Platform
ECS EXSeries Hardware Guide 117
