Dell EMC ECS EX Series - EX300 Node Network Port Cabling Connections

The EX300 node port to the iDRAC, back-end switch, and front-end switch port connections are
listed in the following table.

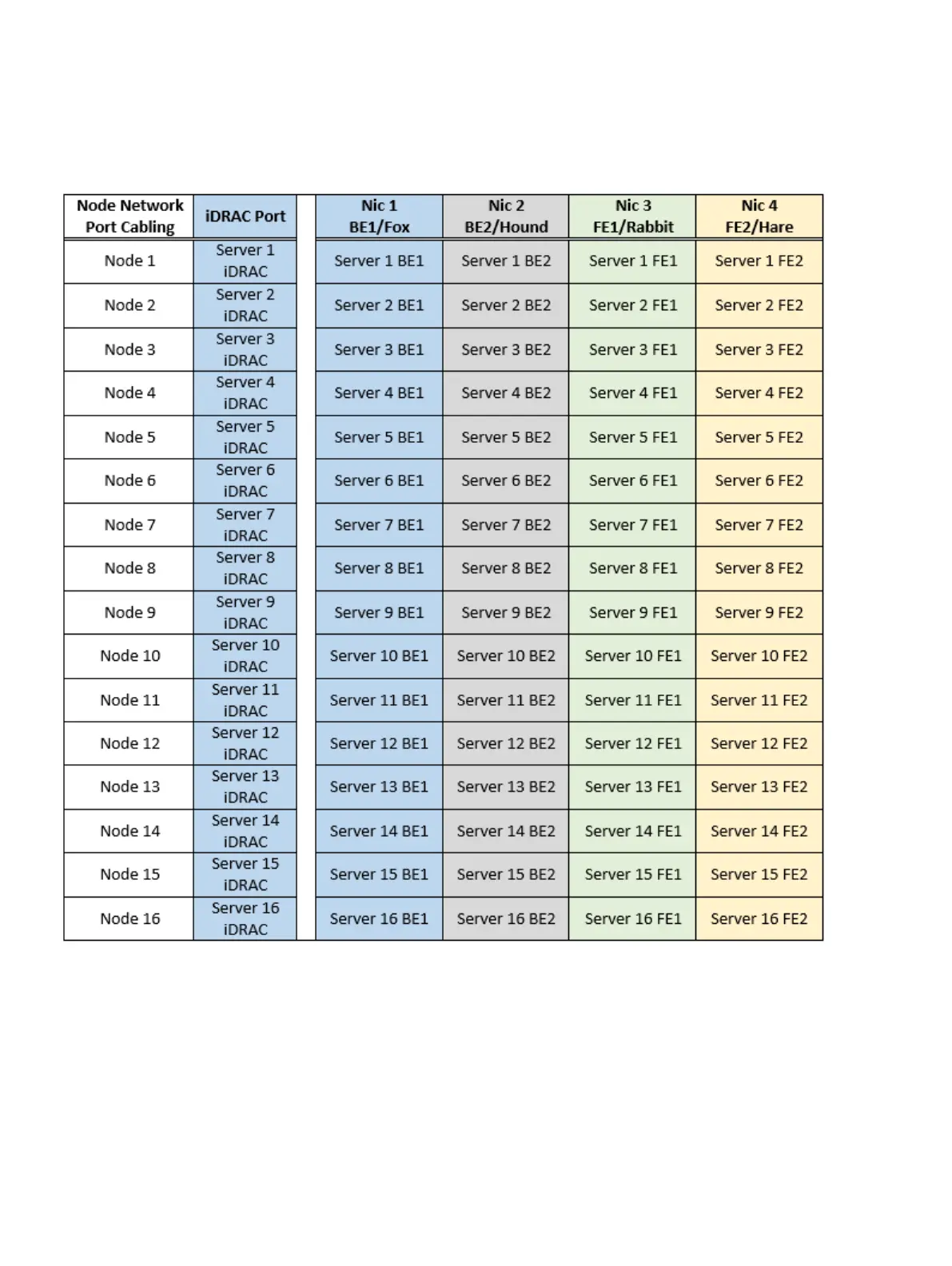

Figure 55 EX300 node network port cabling connections
EX300 Platform
80 ECS EXSeries Hardware Guide
