Table 9 Decoding of LEDs in light bar (continued)
Status ID button
Indicates that the system ID mode is active.
Press the system health and system ID button
to switch to system health mode.
Blink Blue
There are two status LEDs to indicate and identify any failed hardware components.

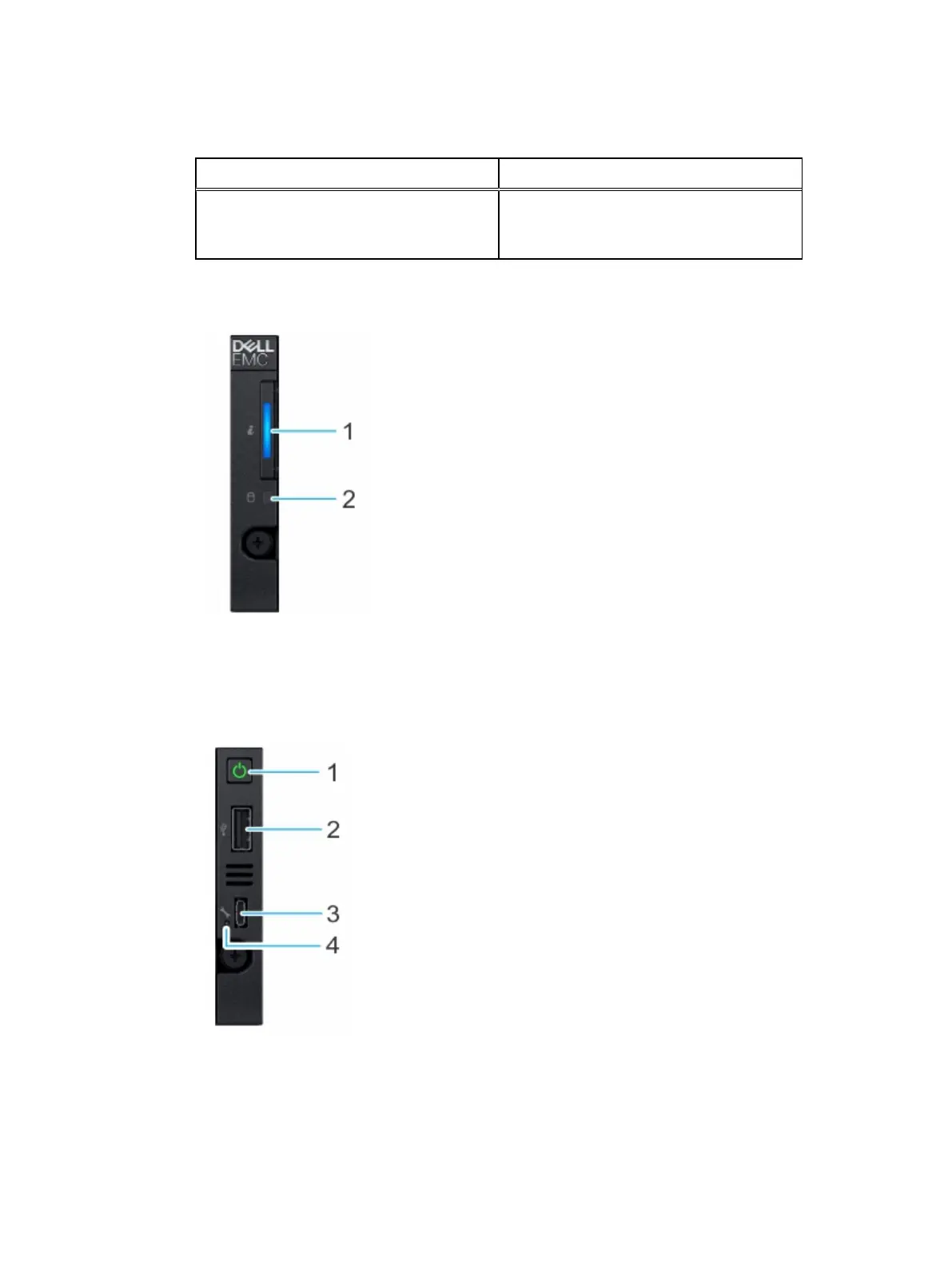

Figure 11 Status LEDs decoded view
1. System health and system ID indicator
2. Drive indicator
Figure 12
Right control panel
1. Power button
2. USB 2.0-compliant port
3. Micro-USB for iDRAC Direct
4. iDRAC LED indicator
EX500 Platform
30 ECS EXSeries Hardware Guide
