The front-end switch and back-end switch connections to an EX300 node are shown in the
following diagram.

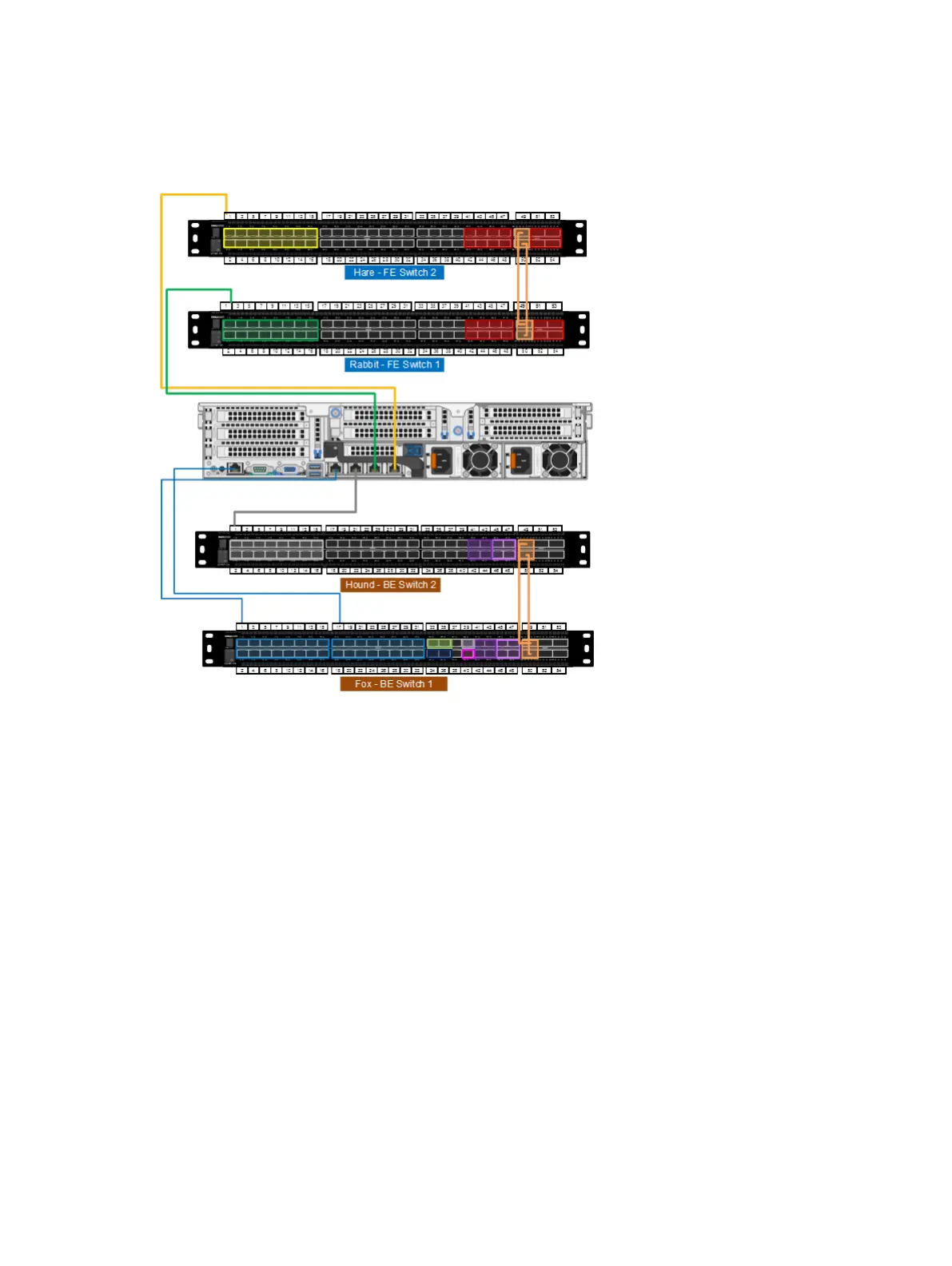

Figure 51 Front-end and back-end switch connections to an EX300 node
EX300 Platform
78 ECS EXSeries Hardware Guide
