EX300 iDRAC cabling
Provides wiring diagrams for the iDRAC cables that connect the iDRAC port on the node to the
Fox back-end switch.
The Fox switch (BE1) port numbers used for connecting to the iDRAC ports on the EX300 nodes
are shown in the following diagram.

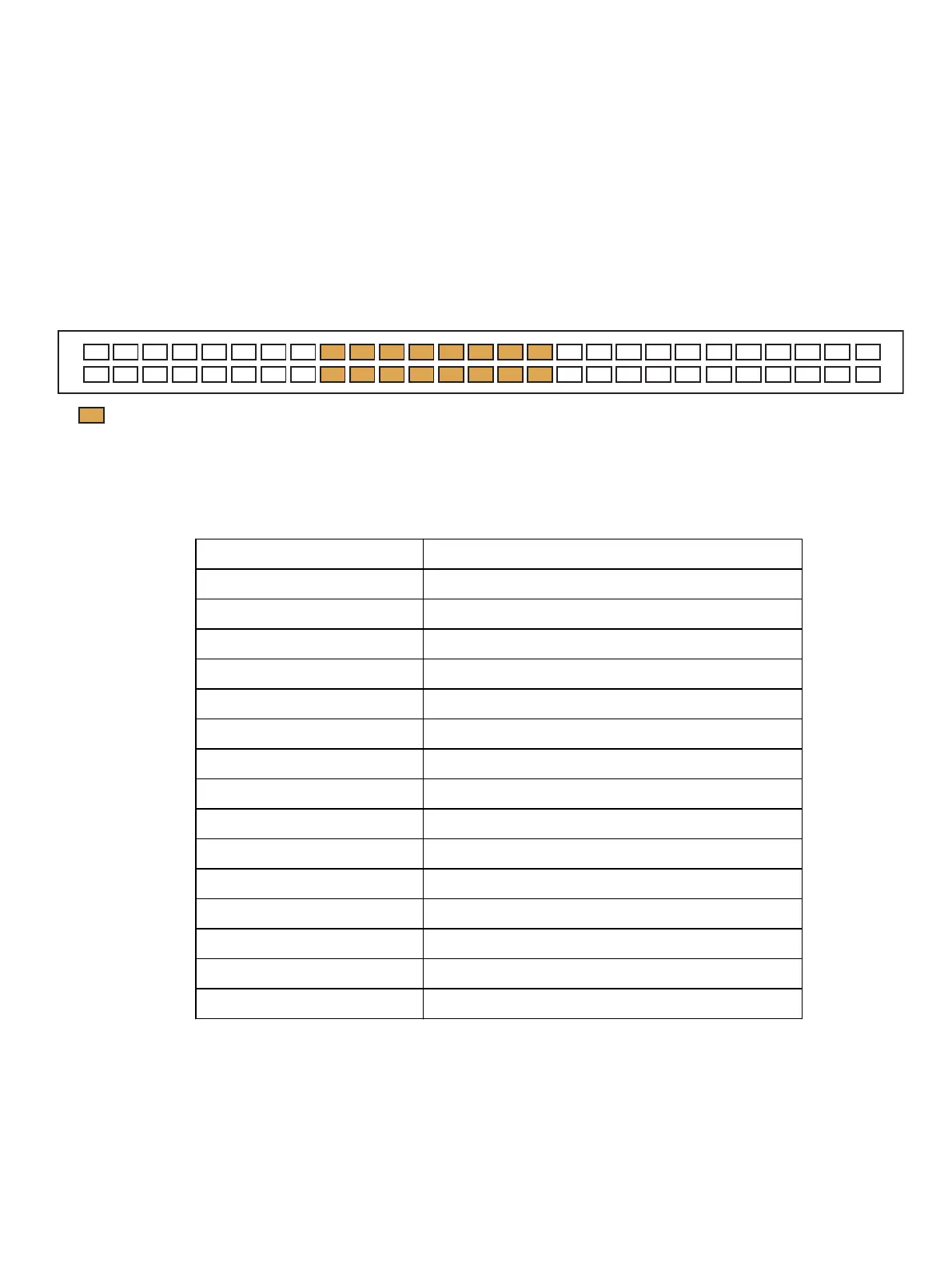

Figure 49 Fox switch iDRAC ports
Fox Switch (BE1)
17
18
17 19
20 24
21 23
22
25
26
27
28
29
30
31
32
iDRAC port
The EX300 node iDRAC port to the Fox switch (BE1) port connections are listed in the following
table.
Table 22 EX300 node iDRAC port to BE1 port mapping
Node 1 iDRAC port BE1 Port 17
Node 2 iDRAC port BE1 Port 18
Node 3 iDRAC port BE1 Port 19
Node 4 iDRAC port BE1 Port 20
Node 5 iDRAC port BE1 Port 21
Node 6 iDRAC port BE1 Port 22
Node 7 iDRAC port BE1 Port 23
Node 8 iDRAC port BE1 Port 24
Node 9 iDRAC port BE1 Port 25
Node 10 iDRAC port BE1 Port 26
Node 11 iDRAC port BE1 Port 27
Node 12 iDRAC port BE1 Port 28
Node 13 iDRAC port BE1 Port 29
Node 14 iDRAC port BE1 Port 30
Node 15 iDRAC port BE1 Port 31
Node 16 iDRAC port BE1 Port 32
EX300 Platform
ECS EXSeries Hardware Guide 75
