Dell EMC ECS EX Series User Manual

Table 3 Switch port numbers (continued)
Switch Port number Description
17-40 Not designated
41-48 Customer uplink ports (10/25 GbE)
49-50 VLT ports (100 GbE)
51-54 Customer uplink ports (100 GbE)
Rabbit 1-16 Data network ports connected to nodes (10/25 GbE)
17-40 Not designated
41-48 Customer uplink ports (10/25 GbE)
49-50 VLT ports (100 GbE)
51-54 Customer uplink ports (100 GbE)
Back-end switch pair
Dell EMC provides two 25 GbE S5148F back-end switches (BE1 and BE2) with two 100 GbE VLT
cables. These switches are referred to as the Hound (BE2) and Fox (BE1) switches.
In the following diagram, all labeled ports relate to an ECS virtual data center (VDC) in which all
racks/nodes are EX-Series (Gen3 hardware), with the exception of ports 39 and 40. Ports 39 and
40 are only used in the scenario where there is Gen2 hardware series integration with EX-Series
hardware in the VDC. When Gen2 hardware is mixed with EX-Series hardware, ports 39 and 40 are
the only ports used for connectivity.
All iDRAC cables from nodes and all front-end switch management cable connections route to the
Fox (BE1) switch.

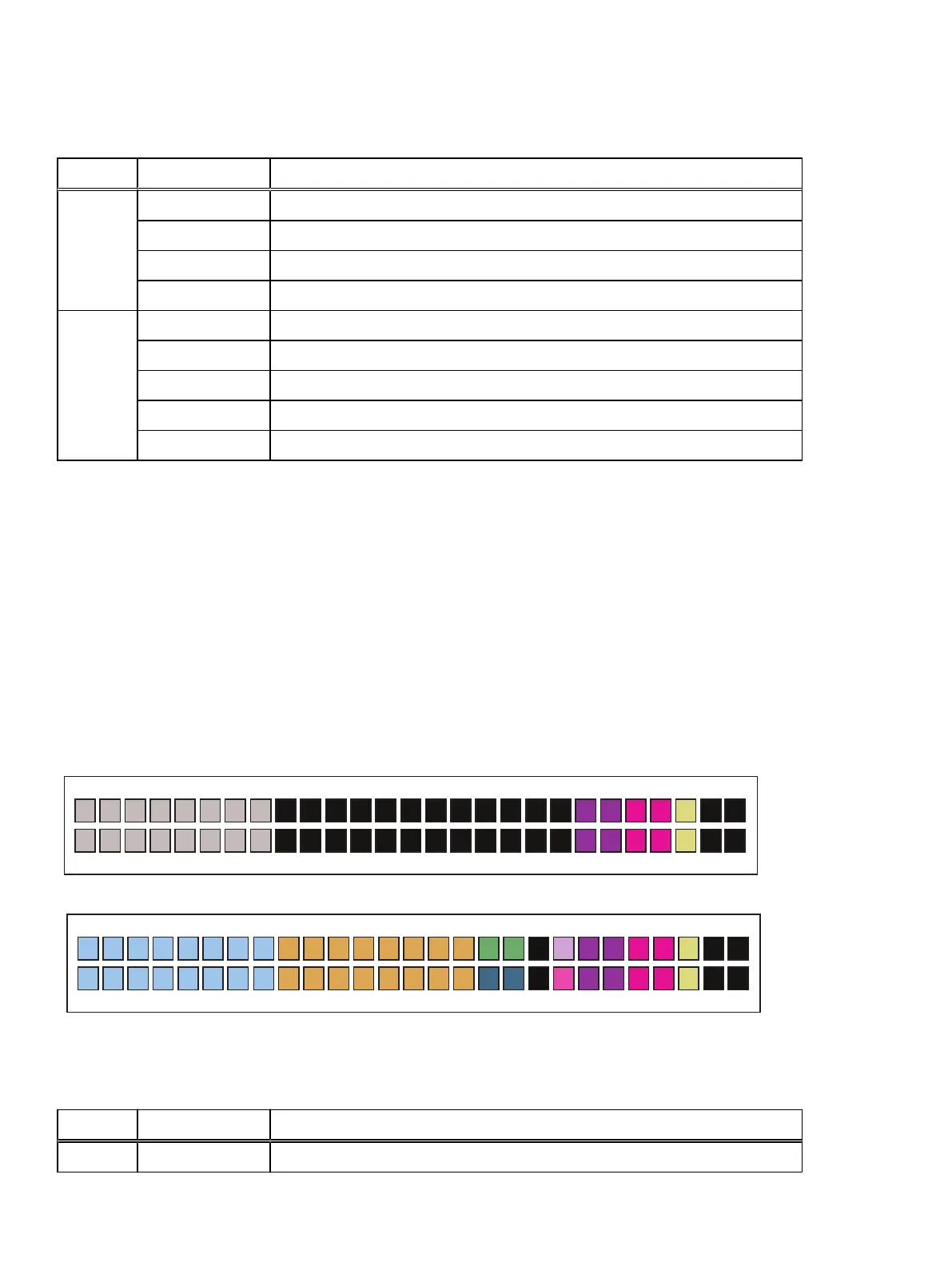

Figure 3
Back-end switches
Fox Switch (BE1)
Hound Switch (BE2)
1
48 46 44 42 40 38 36 34 32 30
28
26 24 22
20
18
16 14 12 10 8 4 6 2
3 5 7 9 11 13 15 17 19 21 23 25 27 29 35 31 33 37 39 41 43 45 47
1
48 46 44 42 40 38 36 34 32 30 28
26 24 22
20
18
16 14 12 10 8 4 6 2
3 5 7 9 11 13 15 17 19 21 23 25 27 29 35 31 33 37 39 41 43 45 47
49 51 53
49 51 53
50 52 54
50 52 54
Lists switch port numbers.
Table 4
Switch port number
Switch Port number Description
Hound 1-16 Private network ports connected to nodes (10/25 GbE)
Switches
ECS EXSeries Hardware Guide 17
